DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16003354AFAN BLWR 80X32.4MM 12V WT12Z7-E2 Comair Rotron |
4,168 | 6.19 |
|
Datasheet |
Whiffet | Box | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 32.00mm | 20.0 CFM (0.560m³/min) | - | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 51.4dB(A) | 10.2 W | 5250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | - |
|
|
19044013AFAN 80X32MM 12VDC ST12B3-E2 Comair Rotron |
4,523 | 7.99 |
|
Datasheet |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.9dB(A) | 3.4 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | - |
|
19030768AFAN AXIAL 79.8X41.8MM 24V SD24B5 Comair Rotron |
4,504 | 12.28 |
|
Datasheet |
Sprite | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 47.6dB(A) | 3 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 1.1 lbs (500.0 g) |
|

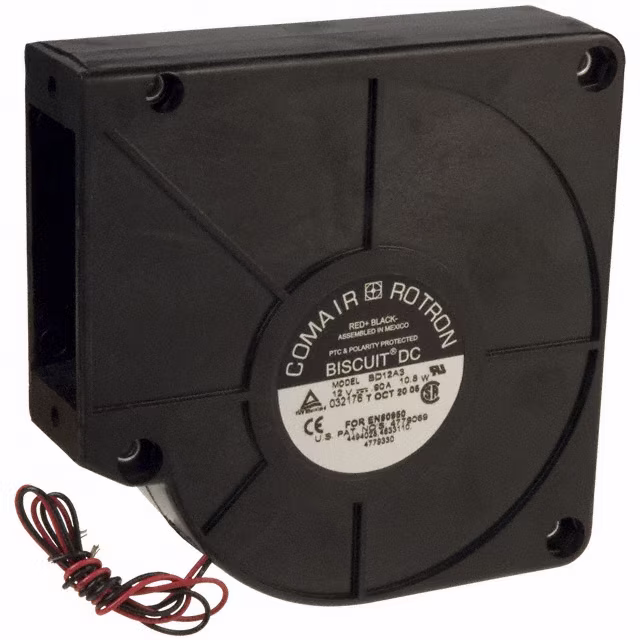

19032176AFAN BLOWER 120.7X31MM 12V BD12A3 Comair Rotron |
3,726 | - |
|
Datasheet |
Biscuit | - | Obsolete | 12VDC | Square/Rounded - 120.7mm L x 120.7mm H | 31.00mm | 26.0 CFM (0.728m³/min) | 0.870 in H2O (216.7 Pa) | Sleeve | Blower | - | 51.2dB(A) | 10.8 W | 3040 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.619 lb (280.77 g) |
|

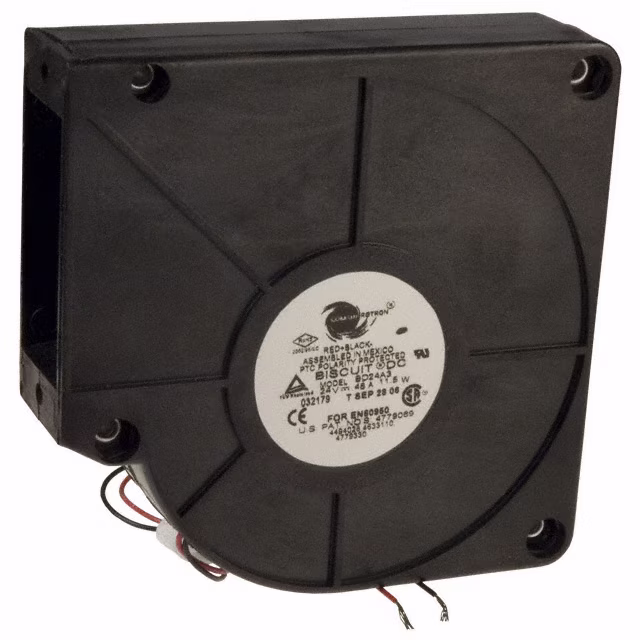

19032179AFAN BLOWER 120.7X31MM 24V BD24A3 Comair Rotron |
4,117 | - |
|
Datasheet |
Biscuit | - | Obsolete | 24VDC | Square/Rounded - 120.7mm L x 120.7mm H | 31.00mm | 26.0 CFM (0.728m³/min) | 0.870 in H2O (216.7 Pa) | Sleeve | Blower | - | 51.2dB(A) | 11.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.619 lb (280.77 g) |
|

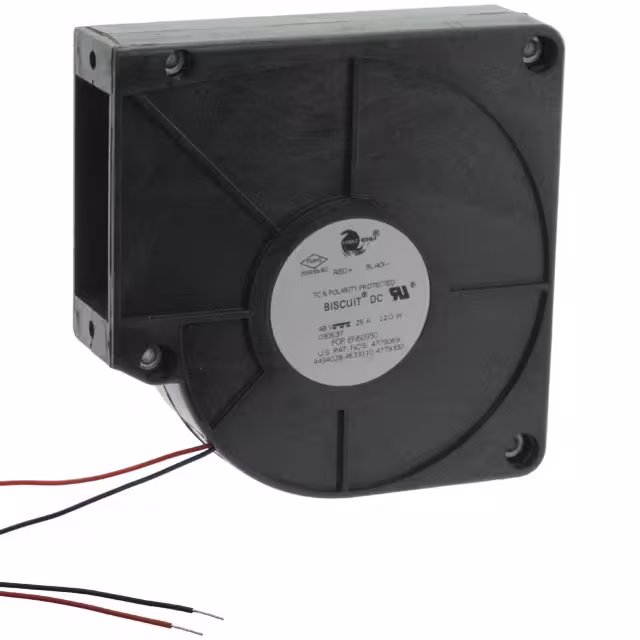

19030637AFAN BLOWER 120.7X31MM 48V BD48B3 Comair Rotron |
3,065 | 8.51 |
|
Datasheet |
Biscuit | Box | Active | 48VDC | Square/Rounded - 120.7mm L x 120.7mm H | 31.00mm | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 52.3dB(A) | 12 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.619 lb (280.77 g) |
|

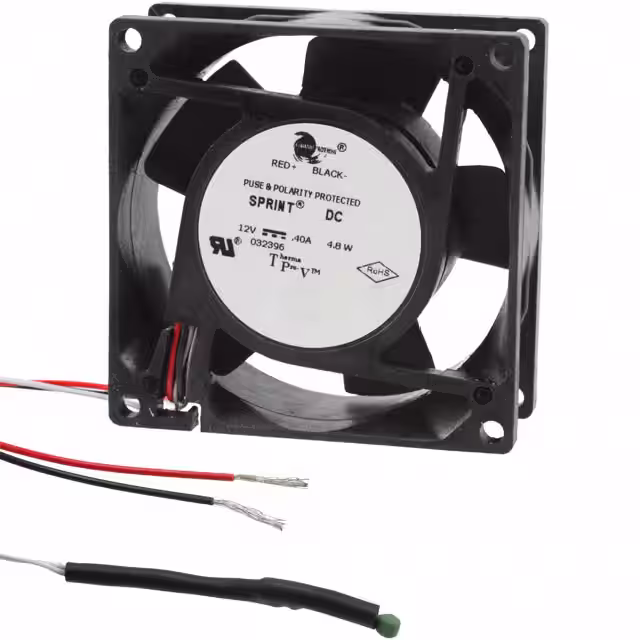

19032396AFAN AXIAL 80X32MM 12VDC ST12T3H Comair Rotron |
1,205 | 9.70 |
|
Datasheet |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 38.0 CFM (1.06m³/min) | 0.128 in H2O (31.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 42.7dB(A) | 5 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.397 lb (180.08 g) |
|

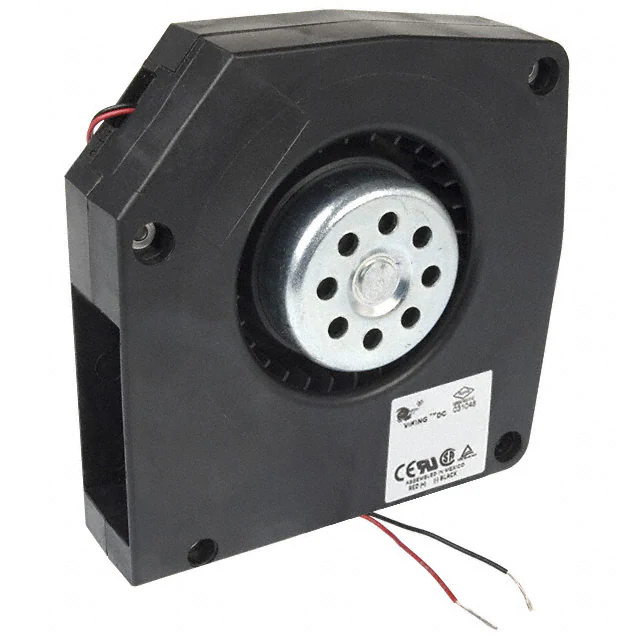

19031048AFAN BLOWER 124.7X36MM 24V VK24B3 Comair Rotron |
3,373 | - |
|
Datasheet |
Viking | - | Obsolete | 24VDC | Rectangular/Rounded - 124.7mm L x 126.2mm H | 36.00mm | 33.0 CFM (0.924m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | - | 57.6dB(A) | 19.2 W | 4000 RPM | 2 Wire Leads | - | - | - | 0.994 lb (450.87 g) |
|
19031792AFAN AXIAL 120X32MM 48VDC MC48K3 Comair Rotron |
4,428 | - |
|
Datasheet |
Muffin | - | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 118.0 CFM (3.30m³/min) | 0.505 in H2O (125.8 Pa) | Ball | Tubeaxial | - | - | 10.6 W | 4100 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|

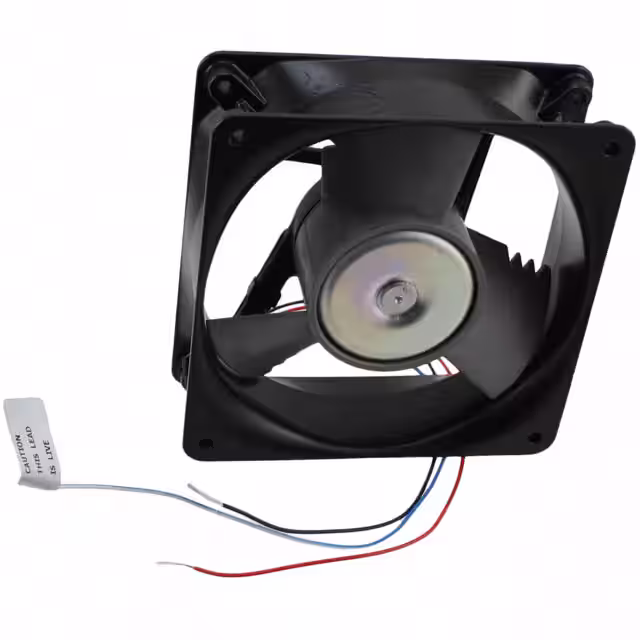

19030714AFAN AXIAL 119.1X39.1MM WD48B7 Comair Rotron |
1,168 | 8.80 |
|
Datasheet |
Whisper XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.10mm | 85.0 CFM (2.38m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 41.1dB(A) | 4.3 W | 2475 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 1.3 lbs (589.7 g) |
