DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19031175AFAN AXIAL 120.1X25.6MM FT24B3 Comair Rotron |
3,912 | - |
|
Datasheet |
Flight II 120 | - | Obsolete | 24VDC | Square - 120.1mm L x 120.1mm H | 25.60mm | 90.0 CFM (2.52m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Tubeaxial | - | 42.9dB(A) | 4 W | 2940 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|

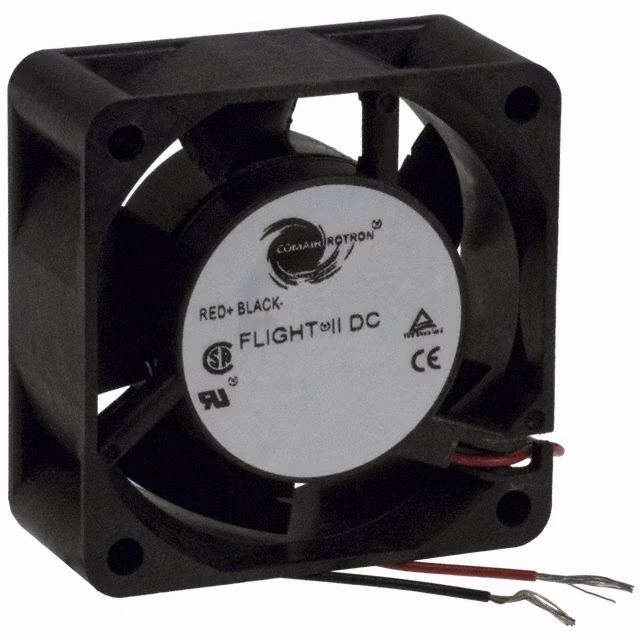

19031157AFAN AXIAL 60X25MM 24VDC FS24B3 Comair Rotron |
3,257 | - |
|
Datasheet |
Flight II 60 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 33.9dB(A) | 1.9 W | 4927 RPM | 2 Wire Leads | - | - | - | 0.243 lb (110.22 g) |
|

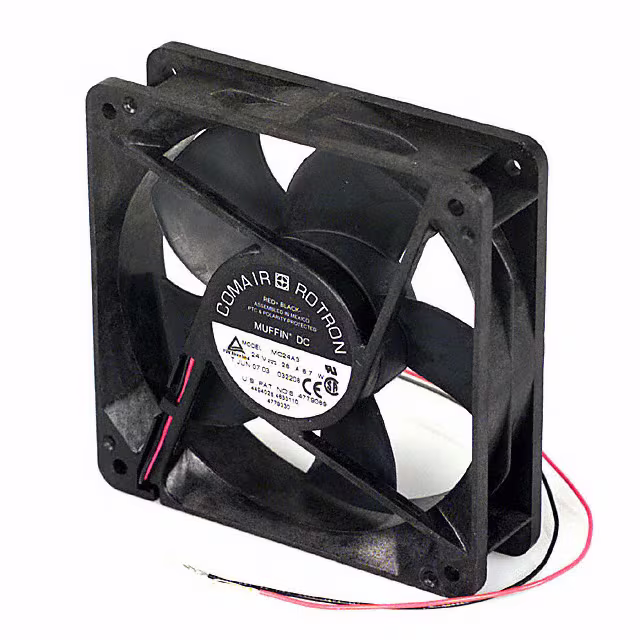

19032208AFAN AXIAL 120X32MM 24VDC MC24A3 Comair Rotron |
4,436 | - |
|
Datasheet |
Muffin | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | Tubeaxial | - | 47.8dB(A) | 6.7 W | 3700 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|
19032207AFAN AXIAL 120X32MM 12VDC MC12A3 Comair Rotron |
3,607 | - |
|
Datasheet |
Muffin | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | Tubeaxial | - | 47.8dB(A) | 7.9 W | 3700 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|
|
19032140AFAN AXIAL 120X32MM 12VDC MC12E3 Comair Rotron |
3,728 | - |
|
Datasheet |
Muffin | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 60.0 CFM (1.68m³/min) | 0.132 in H2O (32.9 Pa) | Sleeve | Tubeaxial | - | 39.7dB(A) | 2.2 W | 2170 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|

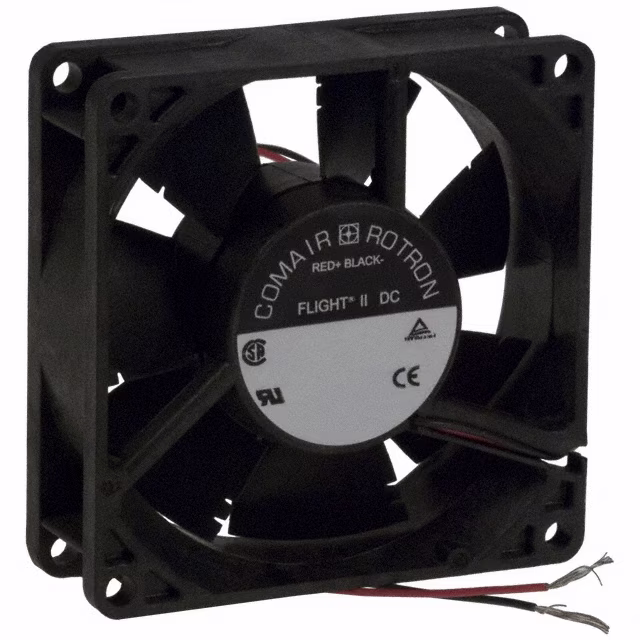

19031165AFAN AXIAL 80X25.4MM 24VDC FE24H3 Comair Rotron |
3,921 | - |
|
Datasheet |
Flight II 80 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 27.0 CFM (0.756m³/min) | 0.123 in H2O (30.6 Pa) | Ball | Tubeaxial | - | 28.9dB(A) | 1.2 W | 2660 RPM | 2 Wire Leads | - | - | - | 0.287 lb (130.18 g) |
|
19031169AFAN AXIAL 92X25.4MM 24VDC FN24B3 Comair Rotron |
4,667 | - |
|
Datasheet |
Flight II 90 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | - | 38.1dB(A) | 2.4 W | 2860 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|

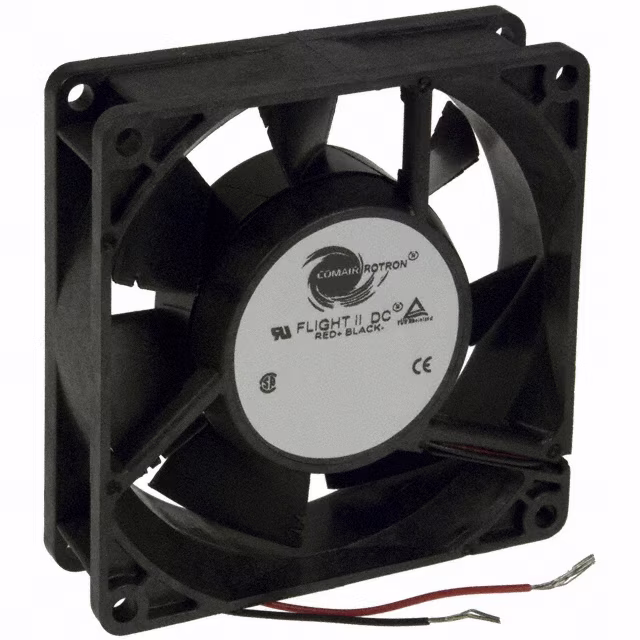

19031392AFAN AXIAL 92X25.4MM 48VDC FN48B3 Comair Rotron |
1,270 | - |
|
Datasheet |
Flight II 90 | - | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.40mm | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | - | 38.1dB(A) | 2.9 W | 2850 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|
|

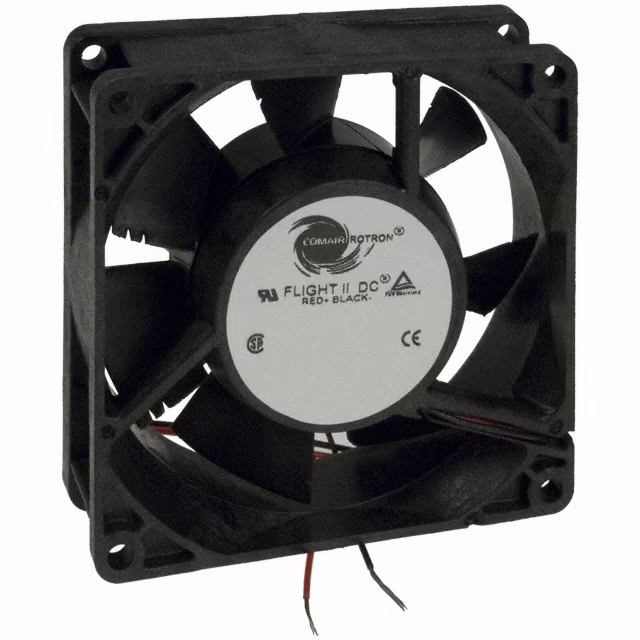

19031168AFAN AXIAL 92X25.4MM 12VDC FN12B3 Comair Rotron |
3,804 | - |
|
Datasheet |
Flight II 90 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 45.0 CFM (1.26m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | - | 38.1dB(A) | 2.4 W | 2784 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|
|

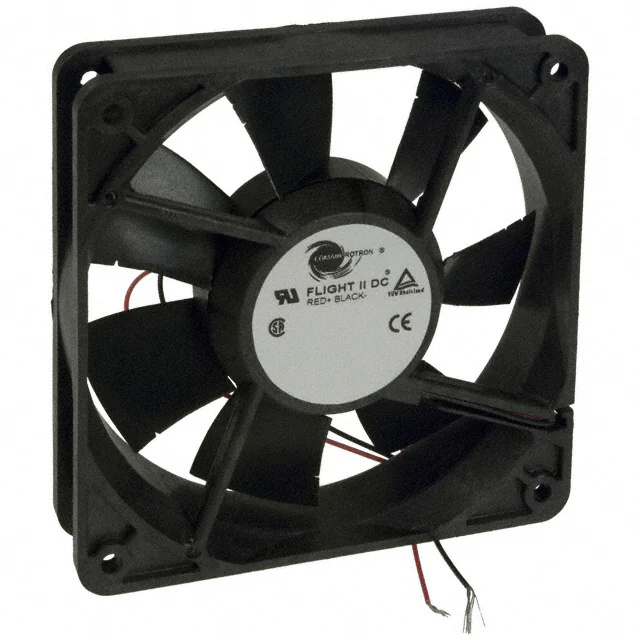

19031174AFAN AXIAL 120.1X25.6MM FT12B3 Comair Rotron |
1,697 | - |
|
Datasheet |
Flight II 120 | - | Obsolete | 12VDC | Square - 120.1mm L x 120.1mm H | 25.60mm | 90.0 CFM (2.52m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Tubeaxial | - | 42.9dB(A) | 4.1 W | 2924 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
