DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF30060V1-1000U-F995VDC FAN 30X6MM TACH |
3,746 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 23.6dB(A) | 0.56 W | 9100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
CFM-4015B-1105-365DC AXIAL FAN, 40 MM SQUARE, 15 M |
1,189 | - |
|
Datasheet |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 12.3 CFM (0.344m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart | 36.5dB(A) | 2.52 W | 10500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

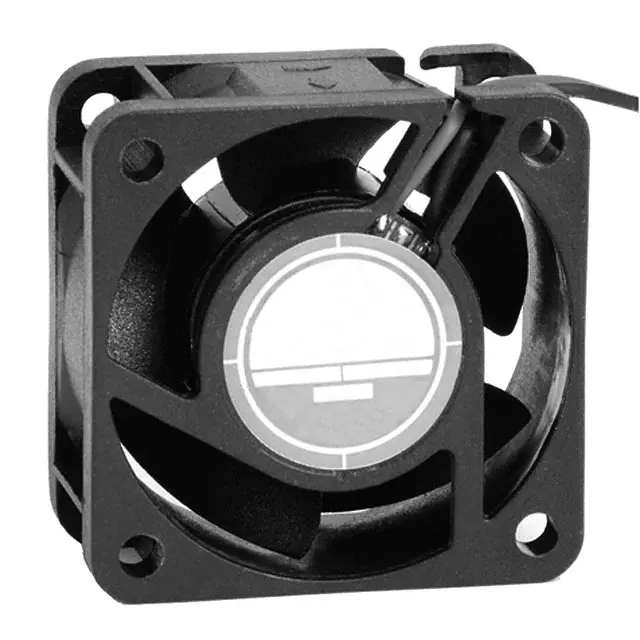

OD4020-05HSS01AFAN AXIAL 40X20MM 5VDC WIRE |
1,710 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.1dB(A) | 1.6 W | 7780 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-05LSS01AFAN AXIAL 40X20MM 5VDC WIRE |
3,980 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.1dB(A) | 900 mW | 5150 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-05MSS01AFAN AXIAL 40X20MM 5VDC WIRE |
1,774 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.3dB(A) | 1.2 W | 6450 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-12HSS01AFAN AXIAL 40X20MM 12VDC WIRE |
3,927 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.1dB(A) | 1.3 W | 8190 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-12LSS01AFAN AXIAL 40X20MM 12VDC WIRE |
1,315 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.1dB(A) | 980 mW | 5150 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-12MSS01AFAN AXIAL 40X20MM 12VDC WIRE |
1,796 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.3dB(A) | 1.2 W | 6450 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-24HSS01AFAN AXIAL 40X20MM 24VDC WIRE |
4,035 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.320 in H2O (79.7 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.1dB(A) | 1.72 W | 8190 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-24LSS01AFAN AXIAL 40X20MM 24VDC WIRE |
1,785 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.1dB(A) | 1.2 W | 5150 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-24MSS01AFAN AXIAL 40X20MM 24VDC WIRE |
3,823 | 1.20 |
|
Datasheet |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.7 W | 6475 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|

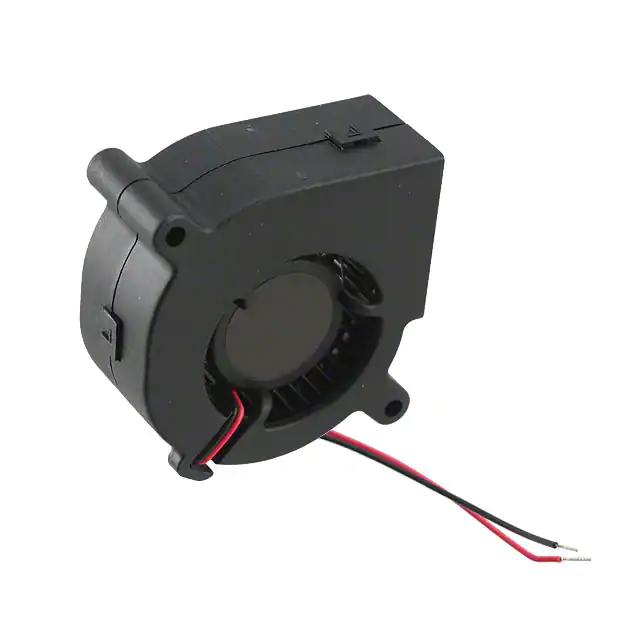

BFB0412HEFAN BLOWER 42X18.5MM 12VDC WIRE |
4,760 | - |
|
Datasheet |
BFB | Box | Obsolete | 12VDC | Rectangular/Rounded - 42mm L x 44.5mm H | 18.50mm | 2.5 CFM (0.070m³/min) | 0.383 in H2O (95.4 Pa) | Ball | Blower | Locked Rotor Protection | 35.5dB(A) | 840 mW | 5500 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.049 lb (22.23 g) |
|
|
MF80151V1-1000U-A99FAN AXIAL 12VDC 80X15MM |
3,332 | - |
|
- |
MagLev® MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.9dB(A) | 1.5 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
MF80151V3-1000U-A99FAN AXIAL 12VDC 80X15MM |
1,379 | - |
|
- |
MagLev® MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.5dB(A) | 0.86 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
MF80151V2-1000U-A99FAN AXIAL 12VDC 80X15MM |
3,900 | - |
|
- |
MagLev® MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.9dB(A) | 1.13 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|

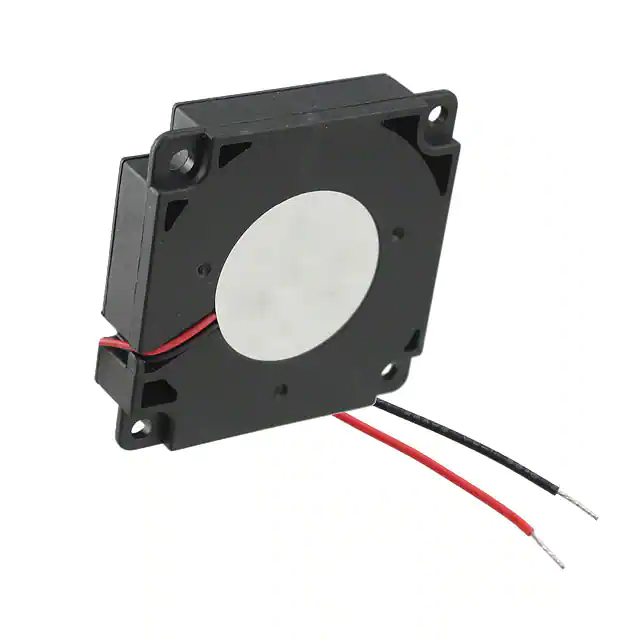

BFB04505HHA-AFAN BLOWER 45X10MM 5VDC WIRE |
2,363 | - |
|
Datasheet |
BFB | Bulk | Not For New Designs | 5VDC | Square - 45mm L x 45mm H | 10.00mm | 3.3 CFM (0.092m³/min) | 0.555 in H2O (138.2 Pa) | Ball | Blower | Locked Rotor Protection | 35.5dB(A) | 800 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.029 lb (13.15 g) |
|

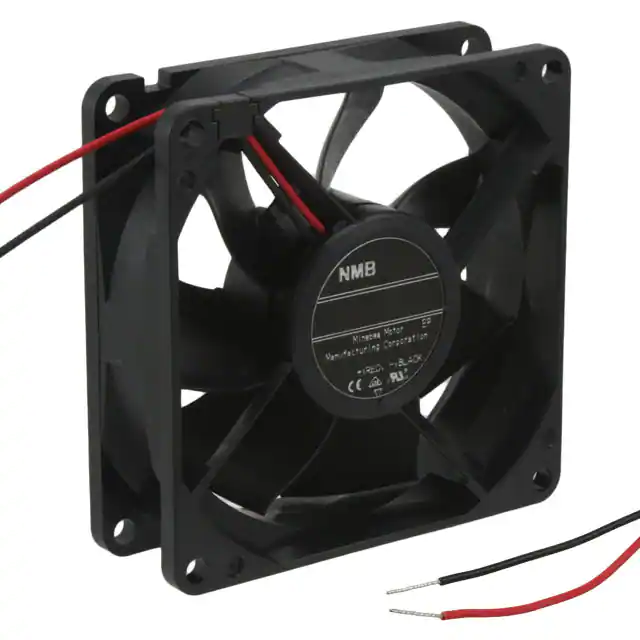

3110SB-05W-B50-B00FAN AXIAL 80X25MM 24VDC WIRE |
3,117 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.92 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B40-E00FAN AXIAL 80X25MM 24VDC WIRE |
3,497 | 1.75 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 1.44 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B50-E00FAN AXIAL 80X25MM 24VDC WIRE |
3,134 | 1.75 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.92 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B20-E00FAN AXIAL 80X25MM 12VDC WIRE |
4,178 | 1.75 |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | - | 19.0dB(A) | 600 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
