DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF30150V1-1000U-H995VDC FAN 30X15MM PWM |
4,748 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 27.0dB(A) | 0.7 W | 9500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V2-1000U-G995VDC FAN 25X15MM ALARM |
4,449 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 11.3dB(A) | 0.23 W | 6800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V2-1000U-G995VDC FAN 30X15MM ALARM |
3,000 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 4.9 CFM (0.137m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.0dB(A) | 0.4 W | 7300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V1-1000U-G995VDC FAN 25X15MM ALARM |
4,652 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 3.1 CFM (0.087m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.0dB(A) | 0.43 W | 10000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V2-1000U-H995VDC FAN 30X15MM PWM |
1,262 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 4.9 CFM (0.137m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 20.0dB(A) | 0.4 W | 7300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V1-1000U-G995VDC FAN 30X15MM ALARM |
3,353 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 0.7 W | 9500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V3-1000U-H995VDC FAN 25X15MM PWM |
3,978 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 1.3 CFM (0.036m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 4.5dB(A) | 0.18 W | 5300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V3-1000U-H995VDC FAN 30X15MM PWM |
4,834 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 2.8 CFM (0.078m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 9.8dB(A) | 0.23 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V3-1000U-G995VDC FAN 30X15MM ALARM |
3,238 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 2.8 CFM (0.078m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 9.8dB(A) | 0.23 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V2-1000U-H995VDC FAN 25X15MM PWM |
4,687 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 11.3dB(A) | 0.23 W | 6800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V3-1000U-G995VDC FAN 25X15MM ALARM |
4,720 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 1.3 CFM (0.036m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 4.5dB(A) | 0.18 W | 5300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
CFM-4015B-1135-415-20DC AXIAL FAN, 40 MM SQUARE, 15 M |
4,540 | - |
|
Datasheet |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 15.8 CFM (0.442m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.5dB(A) | 3.6 W | 13500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-7025B-240-394-20FAN AXIAL 70X25.2MM 24VDC WIRE |
3,542 | 1.52 |
|
Datasheet |
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.20mm | 34.5 CFM (0.966m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.1dB(A) | 3.36 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7025B-130-332-20FAN AXIAL 70X25.2MM 12VDC WIRE |
3,092 | 1.52 |
|
Datasheet |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.20mm | 25.9 CFM (0.725m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.8dB(A) | 1.44 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7025B-140-394-20FAN AXIAL 70X25.2MM 12VDC WIRE |
3,832 | 1.52 |
|
Datasheet |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.20mm | 34.5 CFM (0.966m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.1dB(A) | 3.24 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7025B-230-332-20FAN AXIAL 70X25.2MM 24VDC WIRE |
4,885 | 1.52 |
|
Datasheet |
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.20mm | 25.9 CFM (0.725m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.8dB(A) | 1.44 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015BF-175-459DC BLOWER, 51.7 X 51.25 X 14.9 M |
3,929 | - |
|
Datasheet |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 4.8 CFM (0.134m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Blower | Auto Restart | 45.9dB(A) | 3.96 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015BF-165-428DC BLOWER, 51.7 X 51.25 X 14.9 M |
3,990 | - |
|
Datasheet |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 4.1 CFM (0.115m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Blower | Auto Restart | 42.8dB(A) | 2.16 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

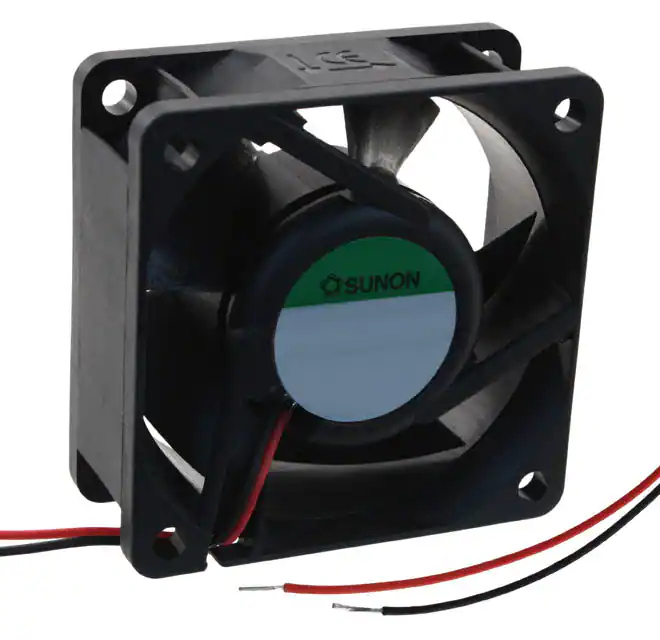

PMD1206PTB1-A.(2).U.GNFAN AXIAL 60X25MM 12VDC WIRE |
3,163 | - |
|
- |
PMD | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 3.9 W | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
|
MF30060V2-1000U-F995VDC FAN 30X6MM TACH |
2,847 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.7dB(A) | 0.36 W | 7100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
