DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3110SB-05W-B29-B00FAN AXIAL 80X25MM 24VDC WIRE |
1,592 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 19.0dB(A) | 720 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B39-B00FAN AXIAL 80X25MM 24VDC WIRE |
2,041 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 960 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B49-B00FAN AXIAL 80X25MM 24VDC WIRE |
4,431 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.44 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B59-B00FAN AXIAL 80X25MM 24VDC WIRE |
3,030 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 1.92 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|

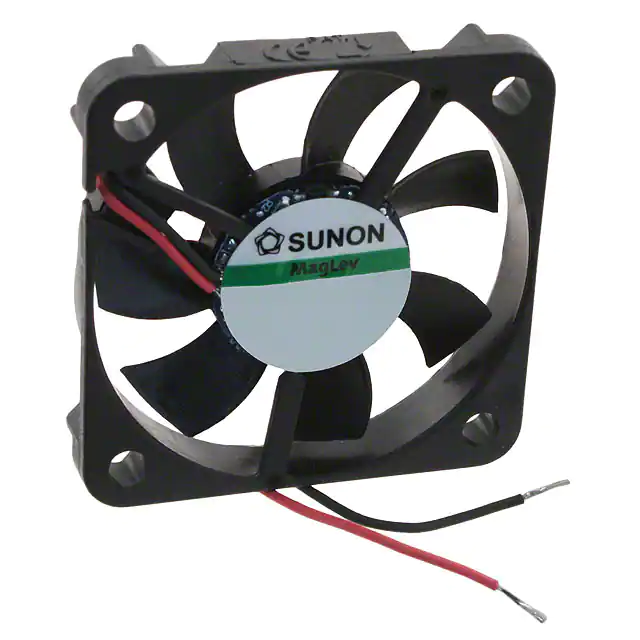

GM0504PEV2-8.GNFAN AXIAL 40X6.9MM 5VDC WIRE |
4,856 | - |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.5 CFM (0.154m³/min) | 0.080 in H2O (19.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 26.0dB(A) | 400 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|

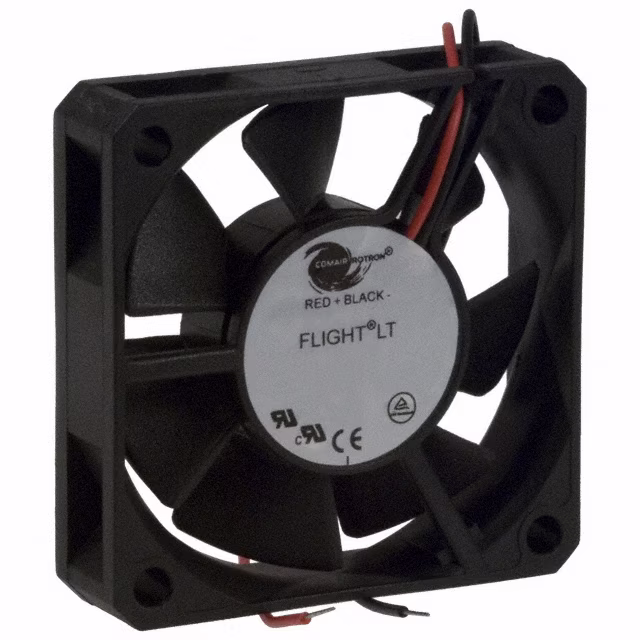

19032686AFAN AXIAL 60X15MM CR0612HB-D71GL |
2,193 | - |
|
Datasheet |
Flight LT 60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 32.4dB(A) | 1.6 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.084 lb (38.1 g) |
|
CBM-4010B-160-267FAN BLOWER 39.5X10MM 12VDC WIRE |
3,396 | - |
|
Datasheet |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Blower | Auto Restart | 26.7dB(A) | 1.32 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9232S-230-398-20FAN AXIAL 92.2X32MM 24VDC WIRE |
1,403 | 1.50 |
|
Datasheet |
CFM-92S | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.9dB(A) | 4.32 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9232S-130-398-20FAN AXIAL 92.2X32MM 12VDC WIRE |
3,825 | 1.50 |
|
Datasheet |
CFM-92S | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.9dB(A) | 4.08 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020B-250-368-20DC AXIAL FAN, 60 MM SQUARE, 20 M |
1,920 | - |
|
Datasheet |
CFM-60B | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 25.0 CFM (0.700m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.9dB(A) | 2.4 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-7015C-040-357FAN AXIAL 70X15.5MM 5VDC WIRE |
1,122 | 1.46 |
|
Datasheet |
CFM-70C | Box | Active | 5VDC | Square - 70mm L x 70mm H | 15.50mm | 25.7 CFM (0.720m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.7dB(A) | 2.4 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
(7025C).jpg)
|
CFM-7015C-140-357-22FAN AXIAL 70X15.5MM 12VDC WIRE |
2,853 | 1.46 |
|
Datasheet |
CFM-70C | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 25.7 CFM (0.720m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.7dB(A) | 3.12 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7015C-040-357-22FAN AXIAL 70X15.5MM 5VDC WIRE |
1,900 | 1.46 |
|
Datasheet |
CFM-70C | Box | Active | 5VDC | Square - 70mm L x 70mm H | 15.50mm | 25.7 CFM (0.720m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.7dB(A) | 2.4 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-7015C-250-406-22DC AXIAL FAN, 70 MM SQUARE, 15 M |
3,943 | - |
|
Datasheet |
CFM-70C | Box | Active | 24VDC | Square - 70mm L x 70mm H | 15.50mm | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.6dB(A) | 4.08 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MF50151V2-1B00U-G99FAN BLOWER 51.7X15MM 12VDC WIRE |
1,013 | 0.98 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.400 in H2O (99.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 32.6dB(A) | 540 mW | 4200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
MF50151VX-1B00U-G9912VDC FAN 50X15MM ALARM |
4,236 | - |
|
Datasheet |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 15.00mm | 5.4 CFM (0.151m³/min) | 0.970 in H2O (241.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 42.2dB(A) | 1.86 W | 6200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50151V1-1B00U-G9912VDC FAN 50X15MM ALARM |
1,142 | - |
|
Datasheet |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 15.00mm | 4.5 CFM (0.126m³/min) | 0.670 in H2O (166.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 39.6dB(A) | 1.14 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50151V3-1B00U-G9912VDC FAN 50X15MM ALARM |
4,004 | - |
|
Datasheet |
MF | Box | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 15.00mm | 2.7 CFM (0.076m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 23.2dB(A) | 0.36 W | 3200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

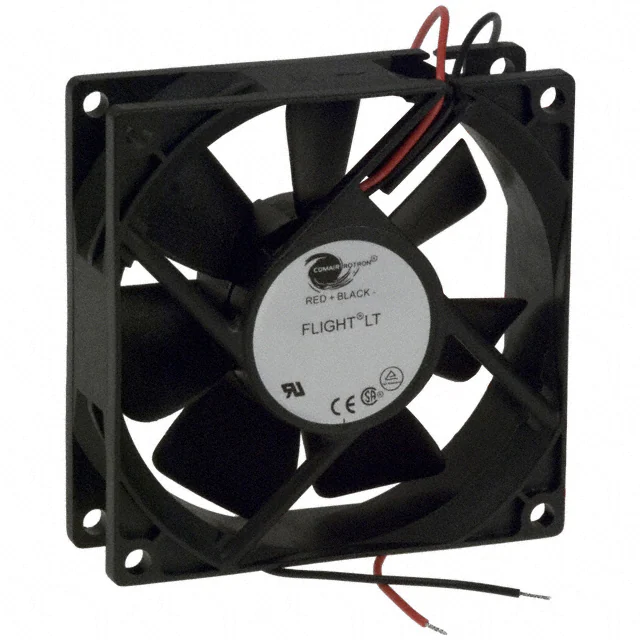

19032736AFAN AXIAL 80X25MM CR0812HB-A70GL |
3,594 | - |
|
Datasheet |
Flight LT 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 38.0 CFM (1.06m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | - | 34.4dB(A) | 3 W | 3010 RPM | 2 Wire Leads | - | - | CE, CSA, UR | 0.19 lb (86.18 g) |
(8020CF).jpg)
|
CFM-8015CF-230-301-22FAN AXIAL 80X15.4MM 24VDC WIRE |
4,957 | 1.46 |
|
Datasheet |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.1dB(A) | 5.04 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
