DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3108NL-05W-B59-L50FAN AXIAL 80X20MM 24VDC WIRE |
2,501 | - |
|
Datasheet |
3108NL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB | 3.6 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-05W-B59-P50FAN AXIAL 80X20MM 24VDC WIRE |
1,224 | - |
|
Datasheet |
3108NL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB | 3.6 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
FN-PX08-20FAN AXL 80X25MM 12VDC RECT CONN |
1,618 | 1.82 |
|
Datasheet |
Silent 8 PWM | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.065 in H2O (16.2 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 21.5dB(A) | - | 2000 RPM | 4 Position Rectangular Connector | - | - | CE | - | |
|
CFM-6015BF-265-412-20FAN AXIAL 60X15.5MM 24VDC WIRE |
3,416 | 1.45 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 28.6 CFM (0.801m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.2dB(A) | 5.76 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

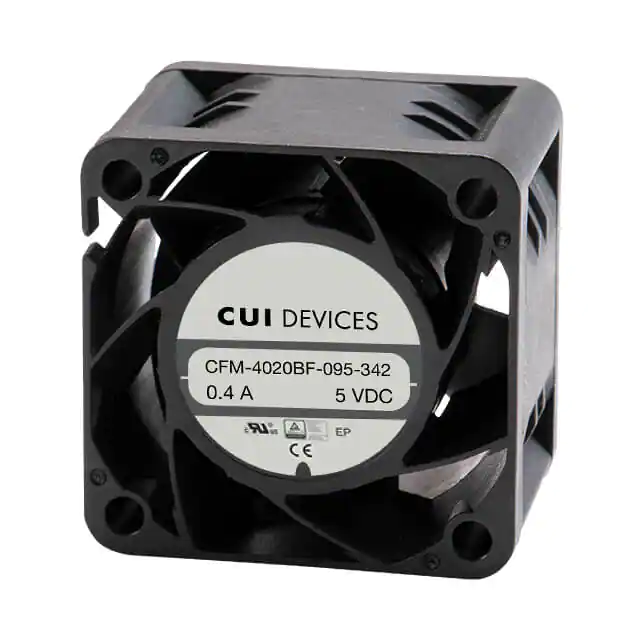

CFM-4020BF-075-306-20FAN AXIAL 40X20MM BALL 5VDC WIRE |
3,229 | 1.45 |
|
- |
CFM-40BF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.6dB(A) | 1.8 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-2110-381-20FAN AXIAL 40X20MM 24VDC WIRE |
4,898 | 1.45 |
|
- |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.1dB(A) | 2.88 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-195-342-20DC AXIAL FAN, 40 MM SQUARE, 20 M |
1,803 | - |
|
Datasheet |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.2dB(A) | 1.92 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020BF-1110-381-20DC AXIAL FAN, 40 MM SQUARE, 20 M |
1,320 | - |
|
Datasheet |
CFM-40BF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 13.8 CFM (0.386m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.1dB(A) | 2.52 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6015-13-11FAN AXIAL 60X15.4MM 12VDC WIRE |
4,194 | 1.77 |
|
Datasheet |
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.40mm | 27.5 CFM (0.770m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 39.0dB(A) | 2.64 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.089 lb (40.37 g) |
|

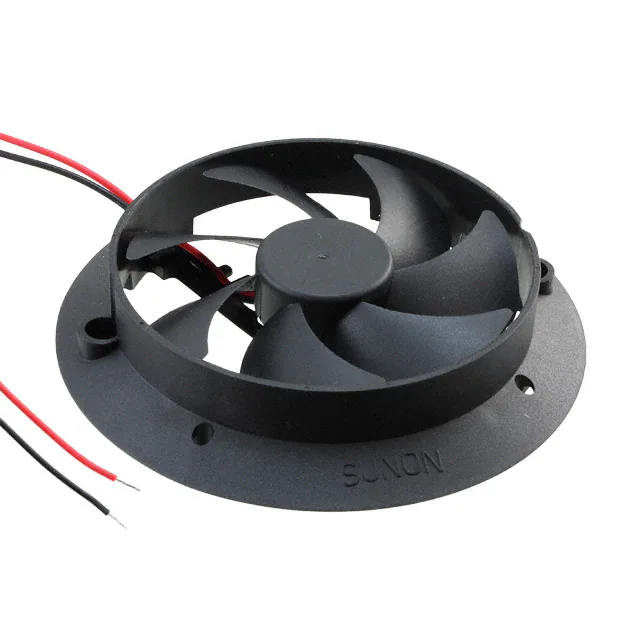

HA60151V3-E01U-A99FAN AXIAL 84.9X15.4MM 12VDC |
4,007 | 1.59 |
|
Datasheet |
MagLev® HA | Tray | Obsolete | 12VDC | Round - 84.9mm Dia | 15.40mm | 13.2 CFM (0.370m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.3dB(A) | 340 mW | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.06 lb (27.22 g) |
|
3110SB-05W-B59-E00FAN AXIAL 80X25MM 24VDC WIRE |
2,457 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 1.92 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B29-B00FAN AXIAL 80X25MM 12VDC WIRE |
3,264 | - |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 19.0dB(A) | 600 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B39-B00FAN AXIAL 80X25MM 12VDC WIRE |
3,947 | - |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 720 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B59-B00FAN AXIAL 80X25MM 12VDC WIRE |
4,945 | - |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 1.68 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B29-E00FAN AXIAL 80X25MM 12VDC WIRE |
3,885 | - |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 19.0dB(A) | 600 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B39-E00FAN AXIAL 80X25MM 12VDC WIRE |
3,589 | - |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 720 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B29-E00FAN AXIAL 80X25MM 24VDC WIRE |
1,289 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 19.0dB(A) | 720 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B39-E00FAN AXIAL 80X25MM 24VDC WIRE |
2,681 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 960 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B49-E00FAN AXIAL 80X25MM 24VDC WIRE |
4,536 | - |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.44 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B49-B00FAN AXIAL 80X25MM 12VDC WIRE |
1,640 | - |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.08 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
