DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF92251V1-000U-G99FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
1,245 | 2.17 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB(A) | 4.7 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|
|
PF92251V3-000U-F99FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
2,866 | 2.17 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.0dB(A) | 3.1 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|
|
PF92251V3-000U-G99FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
1,595 | 2.17 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB(A) | 3.1 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|
MF40060V1-000U-A99FAN AXIAL 40X6.9MM 5VDC WIRE Sunon Fans |
4,513 | - |
|
Datasheet |
MagLev® MF | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.9dB(A) | 440 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.015 lb (6.8 g) |
|
|
PMD1207PKB4-A.(2).GNFAN AXIAL 70X20MM 12VDC WIRE Sunon Fans |
1,316 | 2.32 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
SG40281B1-000U-S99FAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
3,188 | - |
|
Datasheet |
SG | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.6 CFM (0.717m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 6.24 W | 19000 RPM | 4 Wire Leads | - | - | CUR, TUV, UL | 0.077 lb (34.93 g) |
|

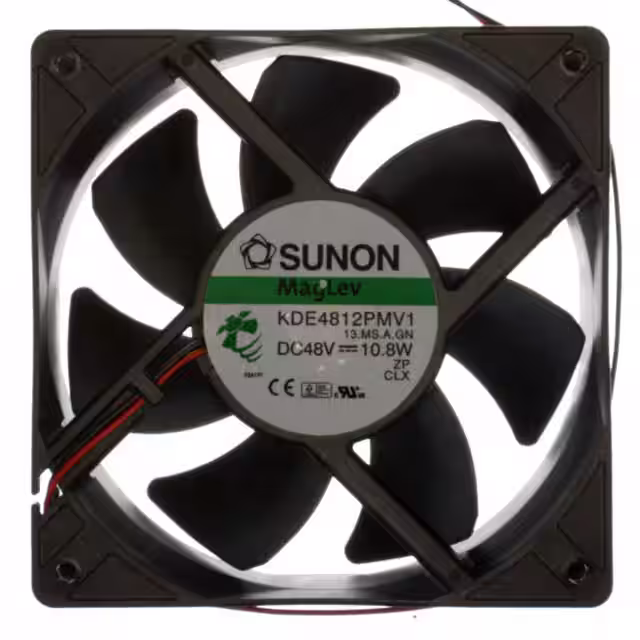

KDE4812PMV1.13.MS.A.GNFAN AXIAL 120X38MM 48VDC WIRE Sunon Fans |
4,718 | - |
|
Datasheet |
MagLev® KDE | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | Tubeaxial | - | 50.0dB(A) | 10.8 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.683 lb (309.8 g) |
|
|
GB0535ADV3-8FAN BLOWER 34.8X7.3MM 5VDC WIRE Sunon Fans |
4,902 | - |
|
Datasheet |
GB | - | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 7.30mm | 0.812 CFM (0.023m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Blower | - | 19.5dB(A) | 250 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.026 lb (11.79 g) |
|
|
GB1235PDV3-8.Z.X.GNFAN BLOWER 35X7MM 12VDC WIRE Sunon Fans |
3,917 | - |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 7.00mm | 0.900 CFM (0.025m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Blower | - | 22.2dB(A) | 800 mW | 6300 RPM | 2 Wire Leads | - | - | - | - |
|

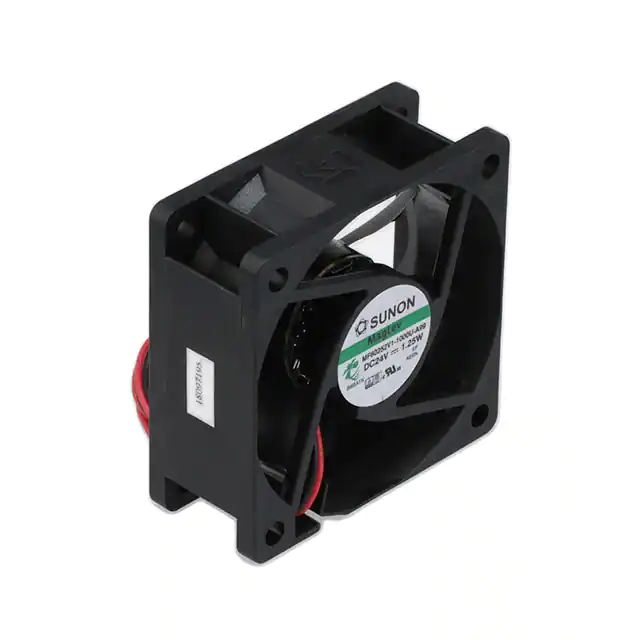

4148/MF60252V1-1000U-A99FAN AXIAL 60X25MM VAPO 24VDC Sunon Fans |
3,258 | 1.78 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.0dB(A) | 1.2 W | 4500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.101 lb (45.81 g) |
