DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD4808PTB1-A.(2).GNFAN AXIAL 80X25MM 48VDC WIRE Sunon Fans |
2,968 | - |
|
- |
PMD | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 6.2 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.22 lb (99.79 g) |
|
PMD4809PTB1-A.(2).GNFAN AXIAL 92X25MM 48VDC WIRE Sunon Fans |
3,324 | - |
|
Datasheet |
PMD | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 6.7 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.265 lb (120.2 g) |
|

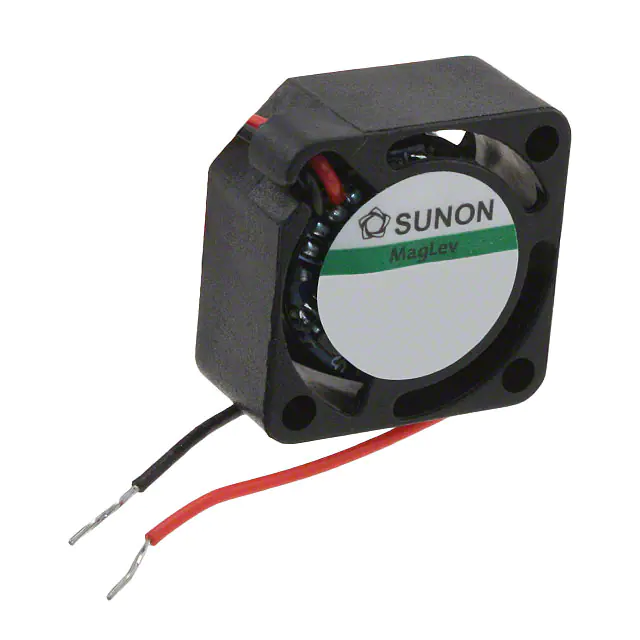

GM0517PDV2-8.GNFAN AXIAL 17X8MM VAPO 5VDC WIRE Sunon Fans |
3,199 | - |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.706 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 16.0dB(A) | 600 mW | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.009 lb (4.08 g) |
|
MF40060V1-1000U-Q995VDC FAN 40X6MM ALARM/PWM Sunon Fans |
3,704 | - |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.00mm | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 29.3dB(A) | 0.44 W | 7000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PMB1297PYB3-AY (2)FAN BLOWER 97.2X33MM 12VDC WIRE Sunon Fans |
1,433 | - |
|
Datasheet |
PMB | - | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.4 CFM (0.627m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower | - | 50.0dB(A) | 3.6 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.408 lb (185.07 g) |
|
|
AF40201VX-1000U-SL912VDC FAN 40X20MM TACH/PWM IP52 Sunon Fans |
2,803 | - |
|
Datasheet |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 0.92 W | 8600 RPM | 4 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40200VX-1000U-SL95VDC FAN 40X20MM TACH/PWM IP52 Sunon Fans |
2,293 | - |
|
Datasheet |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.5dB(A) | 0.9 W | 8600 RPM | 4 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PE92252B1-000U-G99FAN AXIAL 92X25MM 24VDC WIRE Sunon Fans |
2,054 | 2.13 |
|
- |
MagLev® PE | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.0dB(A) | 5.28 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PE80252B1-000U-G99FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
2,395 | 2.13 |
|
- |
MagLev® PE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.5dB(A) | 4.8 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
SG38281B1-000U-A99FAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
1,610 | - |
|
Datasheet |
SG | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | Auto Restart | 56.2dB | 6.24 W | 19000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.077 lb (34.93 g) |
