DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

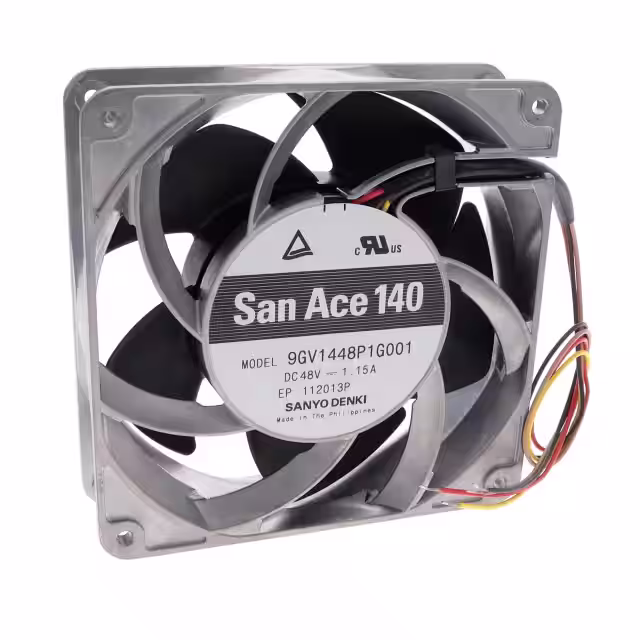

9GV1448P1G001FAN AXIAL 140X38MM 48VDC WIRE Sanyo Denki America Inc. |
3,429 | 15.11 |
|
Datasheet |
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 310.0 CFM (8.68m³/min) | 2.570 in H2O (640.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 55.2 W | 7600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
9LG1224F1D001FAN AXIAL 120X38MM 24VDC WIRE Sanyo Denki America Inc. |
1,232 | 17.36 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 4.56 W | - | 3 Wire Leads | - | - | - | - |
|
|
9CRA0824P8G001FAN AXIAL DUAL 80X80MM 24VDC Sanyo Denki America Inc. |
3,821 | 18.29 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 80.00mm | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 63.6 W | 12000 Front, 11300 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.993 lb (450.42 g) |
|

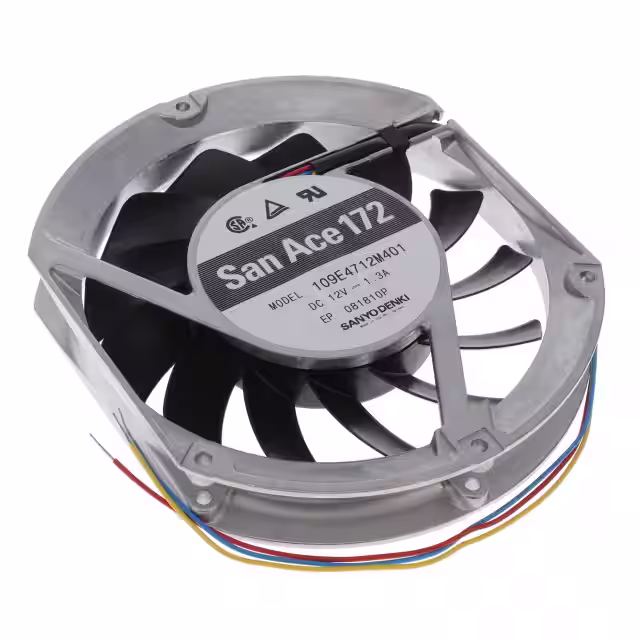

109E4712M401FAN AXIAL 172X25.4MM 12VDC WIRE Sanyo Denki America Inc. |
3,540 | 14.97 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 15.6 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
9LG1424P5G001FAN AXIAL 140X51MM 24VDC WIRE Sanyo Denki America Inc. |
3,241 | 24.47 |
|
Datasheet |
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
9WL1412P1A001FAN AXIAL 140X38MM 12VDC WIRE Sanyo Denki America Inc. |
2,260 | 25.12 |
|
Datasheet |
San Ace 140W | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 44.64 W | 6900 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
|
9LG1224G1D001FAN AXIAL 120X38MM 24VDC WIRE Sanyo Denki America Inc. |
3,434 | 16.12 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.0dB(A) | 38.4 W | 6550 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|

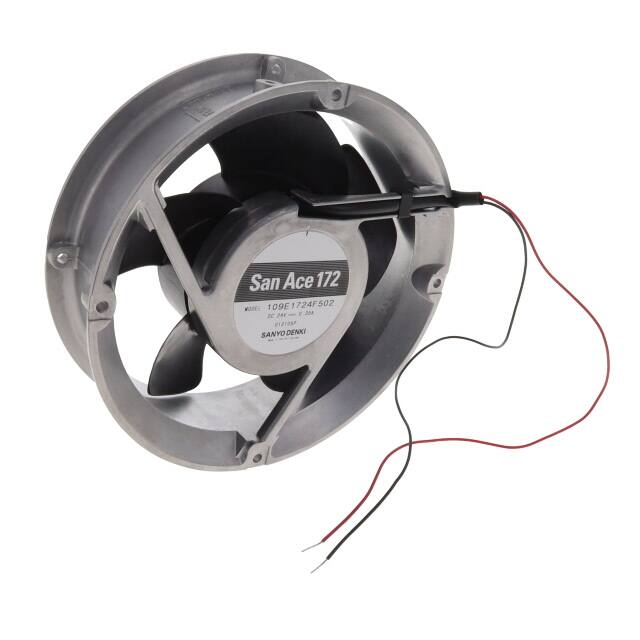

109E1724F502FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
3,545 | 22.97 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 8.4 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
9W1TJ24P0H61FAN BLOWER CF 133X91MM 24VDC Sanyo Denki America Inc. |
4,604 | 29.71 |
|
Datasheet |
San Ace 133W | Box | Active | 24VDC | Round - 133mm Dia | 91.00mm | 225.0 CFM (6.30m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 28.8 W | 4150 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.6 lbs (725.7 g) |
|

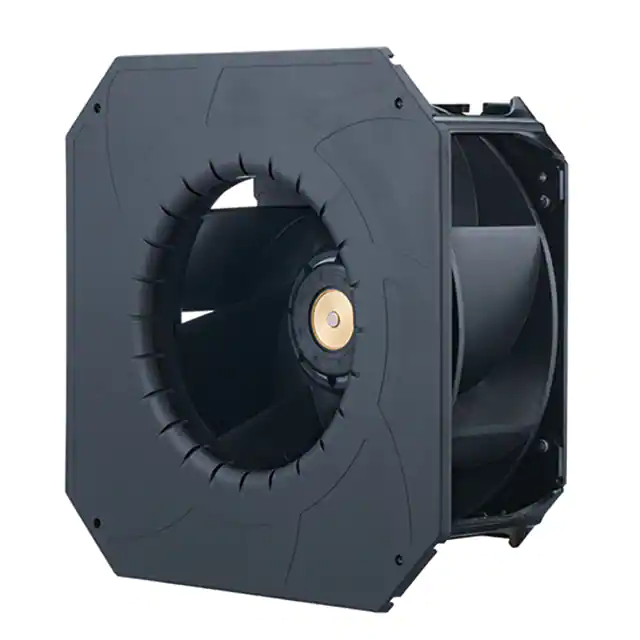

9B1TS48P0G001FAN BLOWER CF 270X119.0MM 48VDC Sanyo Denki America Inc. |
2,375 | 75.65 |
|
Datasheet |
San Ace C225 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 119.0mm | 992.0 CFM (27.78m³/min) | 3.460 in H2O (861.8 Pa) | Ball | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.5dB(A) | 175.2 W | 3550 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 4.2 lbs (1.9 kg) |
