DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9RA1224G1001120X38MM 24VDC TACH Sanyo Denki America Inc. |
1,531 | - |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 8.4 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9WG1212G102-EFAN AXIAL 120X38MM 12VDC WIRE Sanyo Denki America Inc. |
4,080 | 6.76 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 11.76 W | 3600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
9WG1224G101-EFAN AXIAL 120X38MM 24VDC WIRE Sanyo Denki America Inc. |
3,981 | 5.94 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|

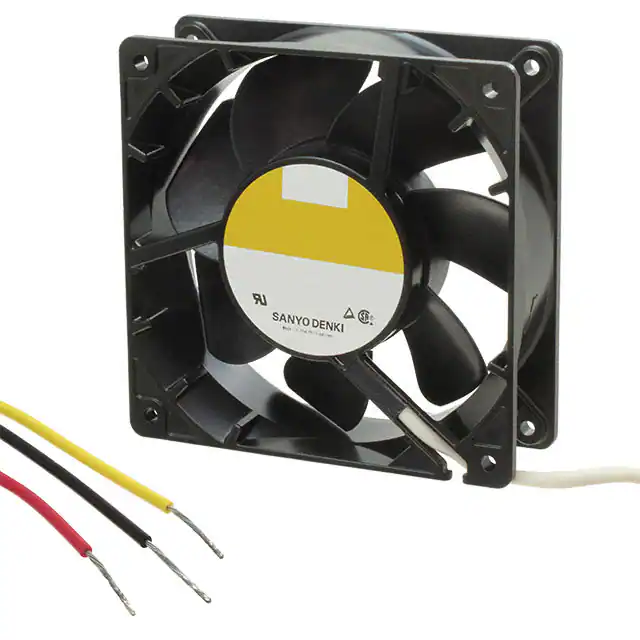

9WG1212G101-EFAN AXIAL 120X38MM 12VDC WIRE Sanyo Denki America Inc. |
3,056 | 6.76 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 11.76 W | 3600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
9GV0912P1F03FAN AXIAL 92X38MM 12VDC WIRE Sanyo Denki America Inc. |
4,481 | 5.29 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 146.6 CFM (4.10m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 22.8 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
9WP1248H102FAN AXIAL 120X38MM 48VDC WIRE Sanyo Denki America Inc. |
1,010 | 8.92 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9RA1212P1K0011120X38MM 12VDC RBLS TACH/PWM Sanyo Denki America Inc. |
1,147 | - |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 11.5 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

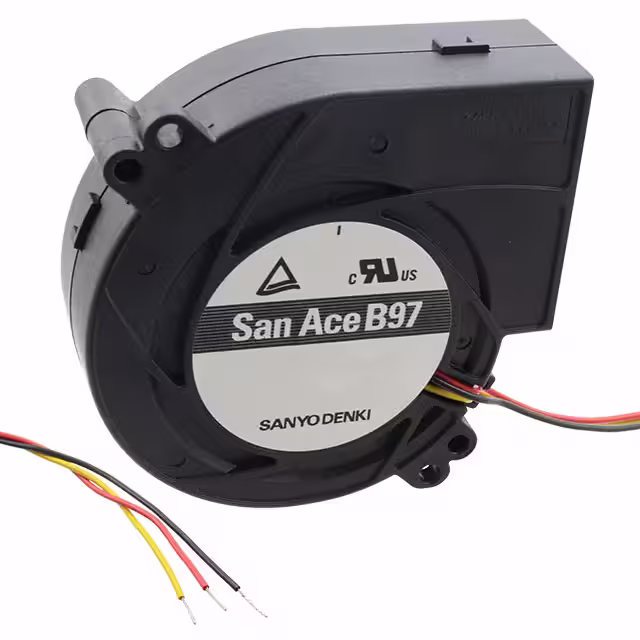

9BMB12K201FAN BLOWER 97.1X33MM 12VDC WIRE Sanyo Denki America Inc. |
2,083 | 5.87 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 56.8 CFM (1.59m³/min) | 5.140 in H2O (1280.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 40.8 W | 6850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|

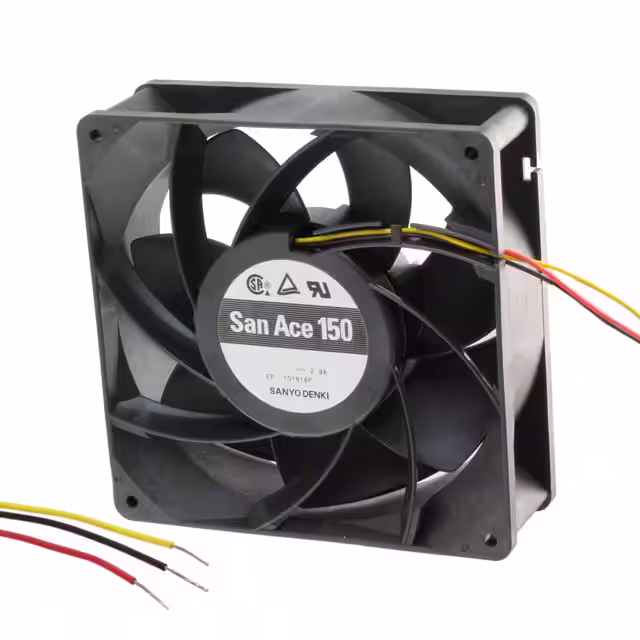

9GV1512H501FAN AXIAL 150X50MM 12VDC WIRE Sanyo Denki America Inc. |
2,196 | 8.76 |
|
Datasheet |
San Ace 150 | Box | Active | 12VDC | Square - 150mm L x 150mm H | 50.00mm | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 61.0dB(A) | 34.8 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
|
|
9WPA0424H3001FAN AXIAL 40X28MM 24VDC WIRE Sanyo Denki America Inc. |
3,012 | 9.52 |
|
Datasheet |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.3 CFM (0.512m³/min) | 1.510 in H2O (375.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 4.1 W | 18500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
