DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0624H4021FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
1,436 | 2.56 |
|
Datasheet |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0624H4D01FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
1,531 | 2.74 |
|
Datasheet |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624M402FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,350 | - |
|
Datasheet |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 960 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|

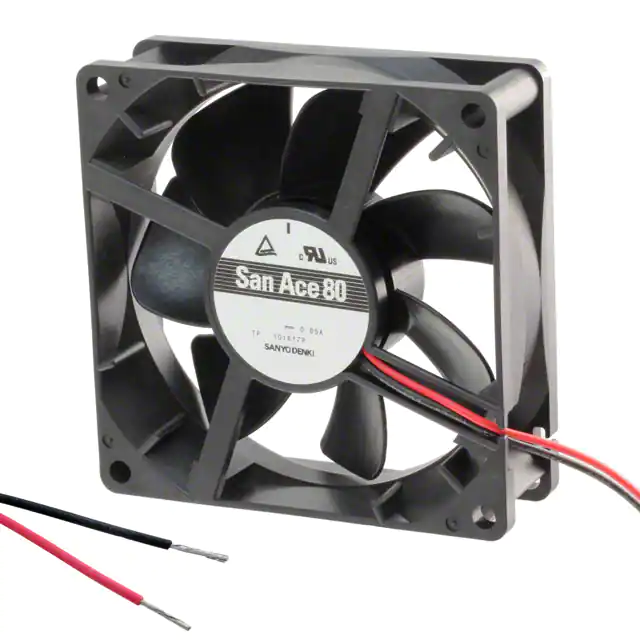

109R0812T4H12FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
2,157 | - |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Thermistor, External | 29.0dB(A) | 1.68 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0812T4H122FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
2,734 | - |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.151 in H2O (37.7 Pa) | Ball | Tubeaxial | Thermistor | 29.0dB(A) | 1.68 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0824G402FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,201 | 2.74 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0824H402FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
1,804 | 2.56 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.68 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
9CRD0412P5G03FAN AXIAL DUAL 40X56MM 12VDC Sanyo Denki America Inc. |
1,418 | - |
|
Datasheet |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 27.2 CFM (0.762m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 10.8 W | 16700 Front, 11250 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9CRD0412P5H03FAN AXIAL DUAL 40X56MM 12VDC Sanyo Denki America Inc. |
4,678 | - |
|
Datasheet |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 24.7 CFM (0.692m³/min) | 1.650 in H2O (411.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 7.2 W | 15000 Front, 10000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9G0648G101FAN AXIAL 60X38MM 48VDC WIRE Sanyo Denki America Inc. |
2,138 | - |
|
Datasheet |
San Ace 60 | Box | Obsolete | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 16.8 W | 11800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
