DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

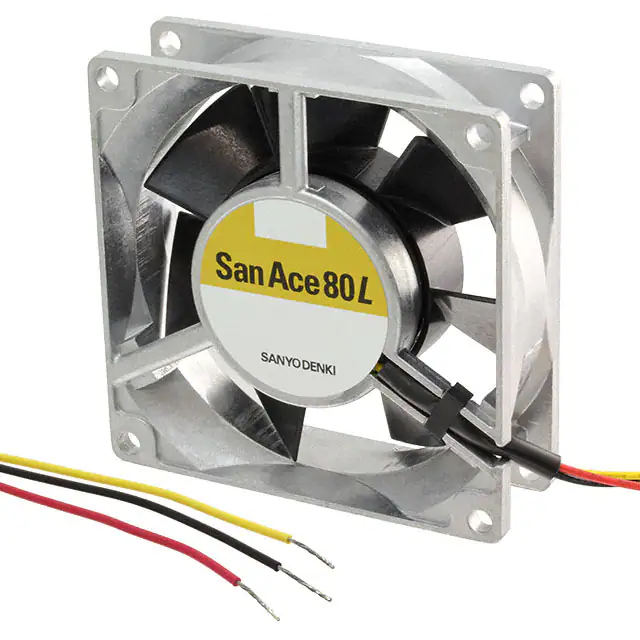

109L0824S401FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,863 | - |
|
Datasheet |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

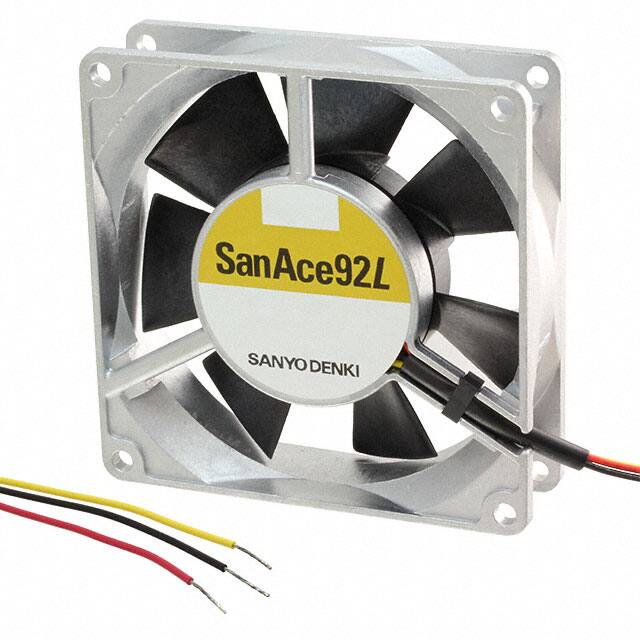

109L0912H401FAN AXIAL 92X25MM 12VDC WIRE Sanyo Denki America Inc. |
2,470 | - |
|
Datasheet |
San Ace 92L | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

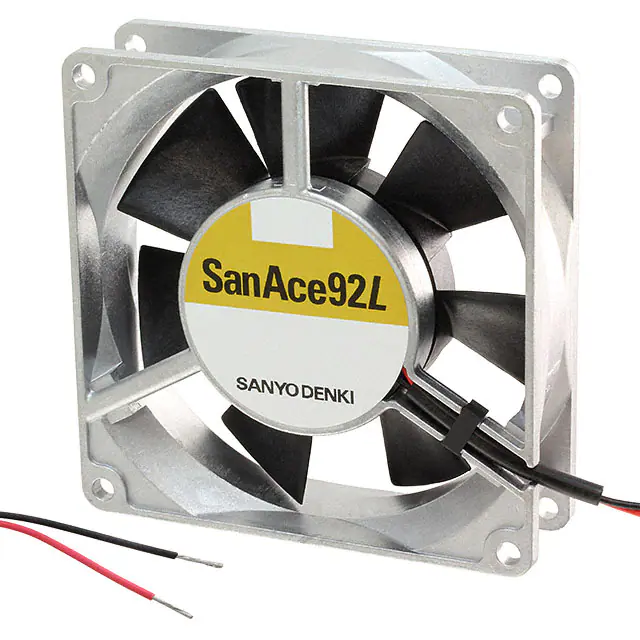

109L0924H402FAN AXIAL 92X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,761 | - |
|
Datasheet |
San Ace 92L | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

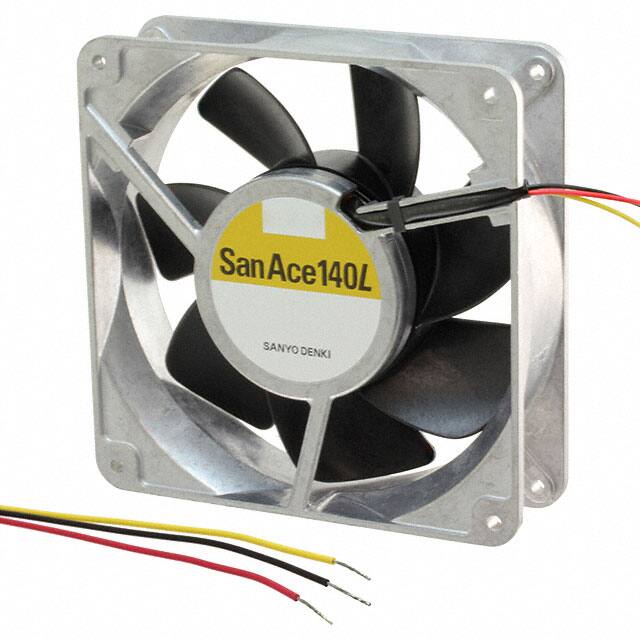

109L1424H101FAN AXIAL 140X38MM 24VDC WIRE Sanyo Denki America Inc. |
1,397 | - |
|
Datasheet |
San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 159.0 CFM (4.45m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.88 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.3 lbs (600.0 g) |
|
109P0524H702FAN AXIAL 52X15MM 24VDC WIRE Sanyo Denki America Inc. |
1,700 | 2.40 |
|
Datasheet |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.2 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|

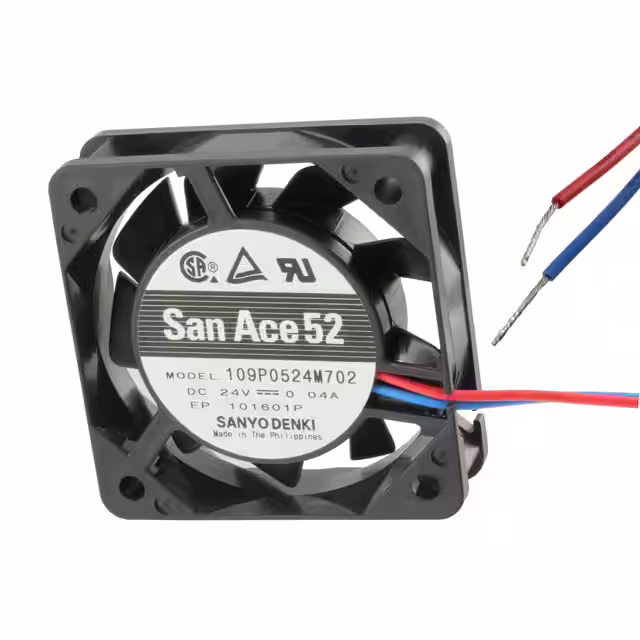

109P0524M702FAN AXIAL 52X15MM 24VDC WIRE Sanyo Denki America Inc. |
3,310 | - |
|
Datasheet |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 7.2 CFM (0.202m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 960 mW | 3700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
109P0612B7D01FAN AXIAL 60X15MM 12VDC WIRE Sanyo Denki America Inc. |
2,449 | - |
|
Datasheet |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.047 in H2O (11.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 21.0dB(A) | 600 mW | 2200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
|
109P0612H7D01FAN AXIAL 60X15MM 12VDC WIRE Sanyo Denki America Inc. |
1,317 | - |
|
Datasheet |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.08 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
|
109P0624H702FAN AXIAL 60X15MM 24VDC WIRE Sanyo Denki America Inc. |
2,236 | 2.34 |
|
Datasheet |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.44 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|

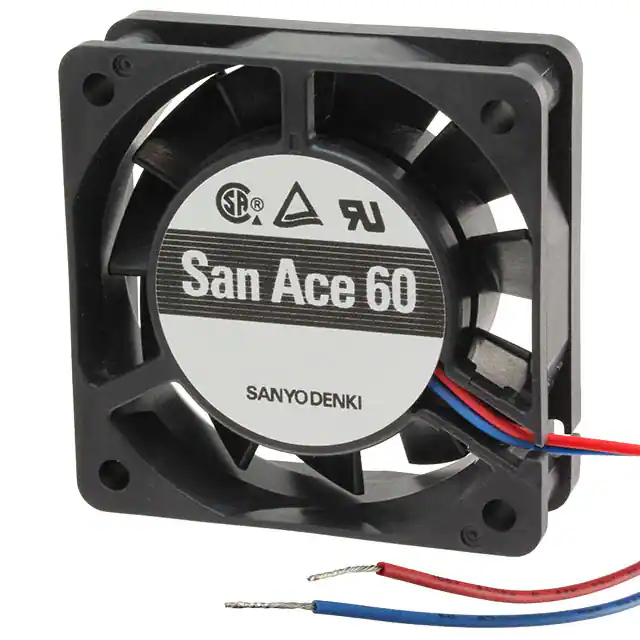

109P0624M602FAN AXIAL 60X20MM 24VDC WIRE Sanyo Denki America Inc. |
2,233 | - |
|
Datasheet |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 10.6 CFM (0.297m³/min) | 0.076 in H2O (18.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.2 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
