DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

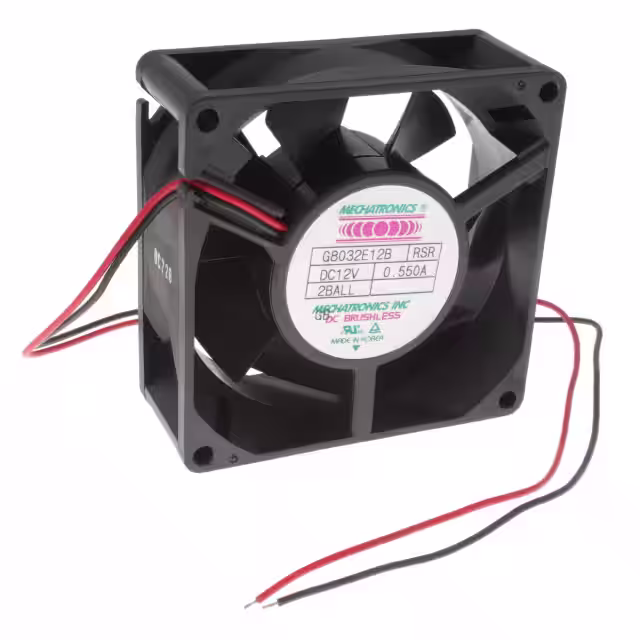

G8032E12B-RSR-GBFAN AXIAL 80X32MM 12VDC WIRE Mechatronics Fan Group |
2,134 | 3.52 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 52.0 CFM (1.46m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 46.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|
B1232H24B-BSR-SRFAN BLOWER 120X32MM 24VDC WIRE Mechatronics Fan Group |
1,868 | 4.32 |
|
Datasheet |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
F1238M24B3-FSR-AB1FAN AXIAL 119X38MM 24VDC WIRE Mechatronics Fan Group |
4,656 | 4.38 |
|
Datasheet |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Thermistor | 38.0dB(A) | - | 2300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
B1232H24B1-BSR-E-TTL-CC-IM4FAN BLOWER 120X32MM 24VDC WIRE Mechatronics Fan Group |
3,629 | 4.54 |
|
Datasheet |
B1232 | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
MS8038H12B1+6-FHRFAN AXIAL 80X38MM 12VDC WIRE Mechatronics Fan Group |
1,194 | 4.45 |
|
Datasheet |
MS8038-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | - | 9000 RPM | 4 Wire Leads | - | - | - | 0.391 lb (177.35 g) |
|
MD1238X24B-FSR-CC-L15FAN AXIAL 120X38MM 24VDC WIRE Mechatronics Fan Group |
2,004 | 4.94 |
|
Datasheet |
MD1238 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
MD1238X12B1+6-FSR-EMC-L25FAN AXIAL 120X38MM 12VDC WIRE Mechatronics Fan Group |
1,642 | 6.52 |
|
Datasheet |
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 4 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
MSI1380H48B1+7-BBRFAN IMP MTRZD 133X80.5MM 48VDC Mechatronics Fan Group |
2,966 | 16.59 |
|
Datasheet |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 66.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
F8025H24B-FSRFAN AXIAL 80X25MM 24VDC WIRE Mechatronics Fan Group |
2,214 | 1.72 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 29.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|

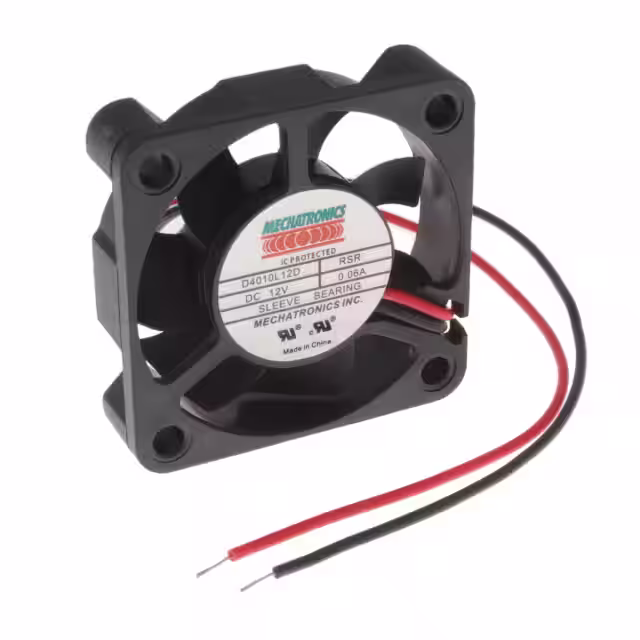

D4010L12D-RSRFAN AXIAL 40X10MM 12VDC WIRE Mechatronics Fan Group |
3,623 | 1.37 |
|
Datasheet |
D4010 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | - | - | Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | - | - | - | 2 Wire Leads | - | - | - | - |
