DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS2507L12D-RSRFAN AXIAL 25X7.4MM SLEEVE 12VDC Mechatronics Fan Group |
3,023 | 2.72 |
|
Datasheet |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.40mm | 1.2 CFM (0.034m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Tubeaxial | - | 20.0dB(A) | - | 7000 RPM | - | - | - | CE, cUL, TUV, UL | 0.011 lb (4.99 g) |
|

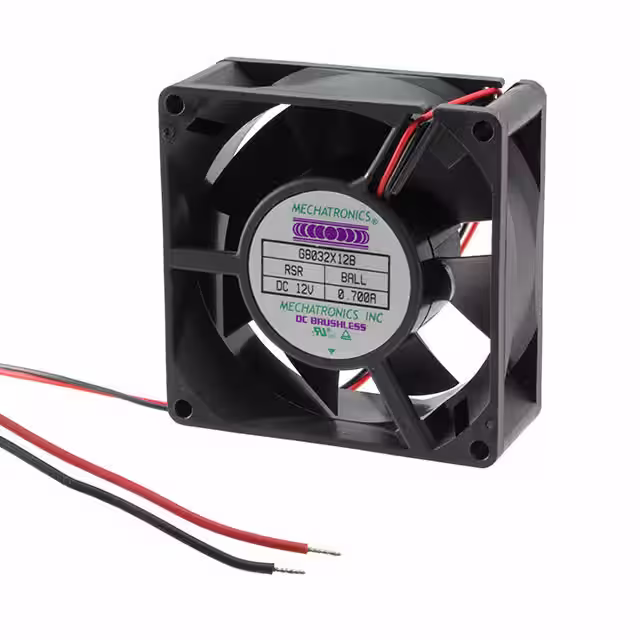

G8032X12B-RSRFAN AXIAL 80X32MM 12VDC WIRE Mechatronics Fan Group |
3,745 | 2.75 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | - | - | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|

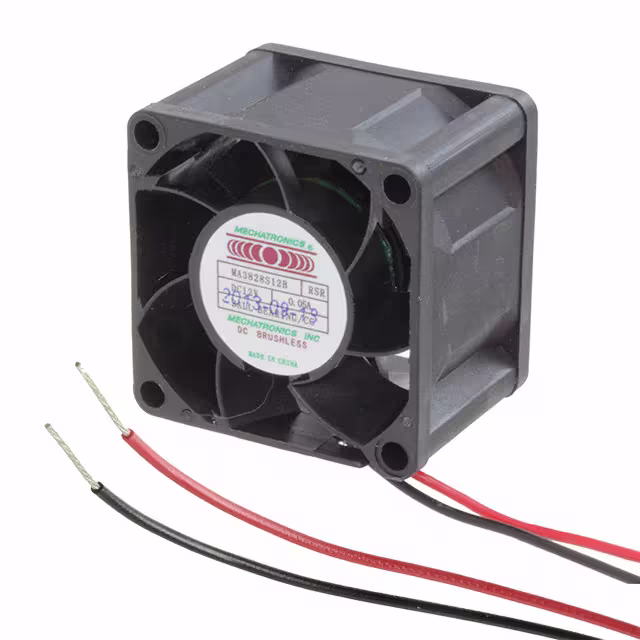

MA3828S12B-RSR-CCFAN AXIAL 38X28MM 12VDC WIRE Mechatronics Fan Group |
3,411 | 2.81 |
|
Datasheet |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 6.2 CFM (0.174m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 30.8dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.078 lb (35.38 g) |
|
G4020H05B-RSR-CC-TEF-L4FAN AXIAL 40X20MM BALL 5VDC WIRE Mechatronics Fan Group |
2,810 | 2.83 |
|
Datasheet |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4015M24B-RSR-CCFAN AXIAL 40X15MM 24VDC WIRE Mechatronics Fan Group |
2,629 | 2.84 |
|
Datasheet |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 23.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
MH4028X12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE Mechatronics Fan Group |
2,364 | 2.86 |
|
Datasheet |
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.2 CFM (0.706m³/min) | 1.325 in H2O (330.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 63.0dB(A) | - | 16500 RPM | 4 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|
F8025X12B3-FHRFAN AXIAL 80X25MM 12VDC WIRE Mechatronics Fan Group |
4,958 | 2.92 |
|
Datasheet |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 39.0dB(A) | - | 4200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
F6025X12B-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
3,611 | 3.01 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
MR9232E24B-FSRFAN AXIAL 92X32MM 24VDC WIRE Mechatronics Fan Group |
2,262 | 3.05 |
|
Datasheet |
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 96.0 CFM (2.69m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 52.8dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.331 lb (150.14 g) |
|
F6025E12B-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE Mechatronics Fan Group |
3,244 | 3.01 |
|
Datasheet |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
