AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC4400FNNFAN AXIAL 119X25MM 85/265VAC |
3,509 | 17.76 |
|
Datasheet |
Green Tech ACmaxx, AC4400FN | Box | Active | 115VAC | Square - 119mm L x 119mm H | 25.00mm | 120.7 CFM (3.38m³/min) | - | Ball | Tubeaxial | Electronic Commutation (EC) | 53.0dB(A) | 12.00W | 4850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
FKA2-25489NBHT3FFAN AXIAL 254X89MM 115VAC TERM |
202 | 22.01 |
|
Datasheet |
FKA2-25489 | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 630.0 CFM (17.64m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | - | 62.0dB(A) | 67.8W | 2000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 4.4 lbs (2 kg) |
|
R2E190-RA26-05MOTORIZED IMPELLER |
4,102 | 21.64 |
|
Datasheet |
R2E190 | Bulk | Active | 230VAC | Round - 190mm Dia | 68.50mm | - | - | Ball | Motorized Impellers | Thermal Overload Protector (TOP) | - | 65.0W | 2500 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 167°F (-25 ~ 75°C) | CCC, CE, EAC, VDE | - |
|
RER160-28/06SFAN IMP MTRZD 176X54MM 115VAC |
1,351 | 25.47 |
|
Datasheet |
RER160 | Bulk | Active | 115VAC | Round - 176mm Dia | 54.00mm | 161.3 CFM (4.52m³/min) | - | Ball | Motorized Impellers | - | 68.0dB(A) | 46.00W | 3250 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.2 lbs (997.9 g) |
|
OA2547AN-11-1WB1856FAN AXIAL 254X89MM 115VAC WIRE |
205 | 25.76 |
|
Datasheet |
OA2547AN | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 70.0dB | 105W | 3250 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 5.9 lbs (2.7 kg) |
|
55416.25350AC FAN BLOWER CROSSFLOW |
1,822 | 23.52 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OA205AN-11-1TB1856FAN AXIAL 205X72MM 115VAC TERM |
2,858 | 24.13 |
|
Datasheet |
OA205AN | Box | Active | 115VAC | Square - 205mm L x 205mm H | 72.00mm | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 80.0W | 3000 RPM | 2 Terminals | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.1 lbs (2.3 kg) |
|
OA205AN-11-1WB1856FAN AXIAL 205X72MM 115VAC WIRE |
4,348 | 25.76 |
|
Datasheet |
OA205AN | Box | Active | 115VAC | Square - 205mm L x 205mm H | 72.00mm | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 67.0dB | 80.0W | 3000 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 5.1 lbs (2.3 kg) |
|
109-314FAN 172X51MM 115VAC RND |
2,330 | 20.99 |
|
Datasheet |
San Ace 172 | Box | Active | 115VAC | Round - 172mm Dia | 51.00mm | 226.1 CFM (6.33m³/min) | 0.787 in H2O (196.0 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 25.00W | 3500 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 2.3 lbs (1 kg) |
|
OA254LFG111TFAN AXIAL 320X122.5MM 115VAC |
3,429 | 23.12 |
|
Datasheet |
OA254LFG | Box | Active | 115VAC | Square - 320mm L x 320mm H | 122.5mm | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 55.0dB | 33.00W | 1650 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
109-603FAN 160X51MM 230VAC |
104 | 17.42 |
|
Datasheet |
San Ace 160 | Box | Active | 230VAC | Square - 160mm L x 160mm H | 51.00mm | 300.4 CFM (8.41m³/min) | 0.669 in H2O (166.6 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 33.00W | 3350 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 2.4 lbs (1.1 kg) |
|
W2S130-BM15-01FAN AXIAL 150X55MM 115VAC WIRE |
2,732 | 21.25 |
|
- |
W2S130 | Bulk | Active | 115VAC | Round - 150mm Dia | 55.00mm | 250.1 CFM (7.00m³/min) | - | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB(A) | 46.00W | 3050 RPM | 2 Wire Leads | IP20 | -13 ~ 158°F (-25 ~ 70°C) | CE, CSA, EAC, UL, VDE | 2.5 lbs (1.1 kg) |
|
RG160-28/06SFAN BLWR FLATPAK 220X56MM 115VAC |
226 | 34.62 |
|
Datasheet |
RG160 | Box | Active | 115VAC | Square - 220mm L x 220mm H | 56.00mm | 131.3 CFM (3.68m³/min) | - | Ball | Blower, Flatpak | - | 69.0dB(A) | 50.0W | 3050 RPM | 2 Wire Leads | - | -22 ~ 176°F (-30 ~ 80°C) | CE, CSA, UL, VDE | 3.8 lbs (1.7 kg) |
|
RG160-28/56SFAN BLWR FLATPAK 220X56MM 230VAC |
2,421 | 33.96 |
|
Datasheet |
RG160 | Bulk | Active | 230VAC | Square - 220mm L x 220mm H | 56.00mm | 118.9 CFM (3.33m³/min) | - | Ball | Blower, Flatpak | - | 69.0dB(A) | 47.00W | 2750 RPM | 2 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | CE, CSA, UL, VDE | 3.8 lbs (1.7 kg) |
|
A2E200-AF02-53AC AXIAL FAN |
1,141 | 43.28 |
|
Datasheet |
A2E200 | Bulk | Active | 230VAC | Round - 195mm Dia | 70.00mm | - | 0.803 in H2O (200.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 61.0W | 3120 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 167°F (-25 ~ 75°C) | CE, UL | - |
|
OAB250-22-1FAN IMP MTRZD 251X98 230V W/CAP |
1,273 | 35.75 |
|
Datasheet |
OAB250 | Box | Active | 230VAC | Round - 251.5mm Dia | 98.10mm | 850.0 CFM (23.80m³/min) | 2.900 in H2O (722.4 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 76.0dB | 240W | 2700 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | cURus, TUV | - |
|

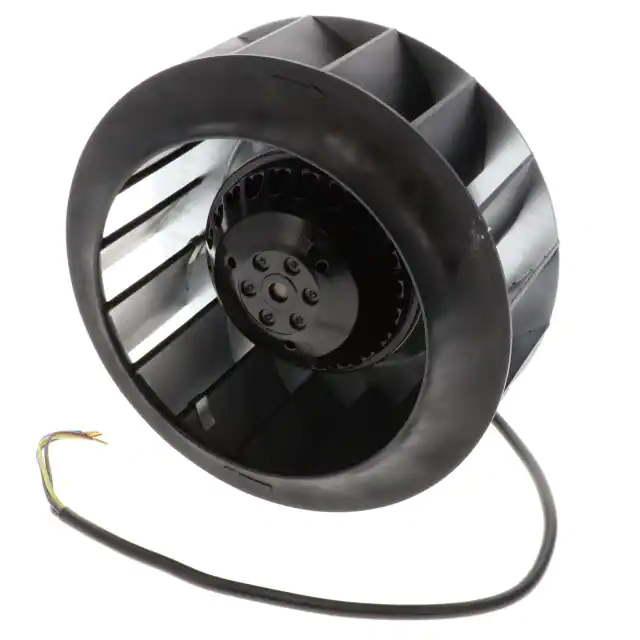

R2E180-AS77-05MOTORIZED IMPELLER |
1,557 | 35.05 |
|
Datasheet |
R2E180 | Bulk | Active | 230VAC | Round - 180mm Dia | 84.50mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 100W | 2300 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 95°F (-25 ~ 35°C) | CE, EAC | - |
|
G2E120-AR54-43FAN BLWR CENT 174X115MM 115VAC |
310 | 38.42 |
|
Datasheet |
G2E120 | Box | Active | 115VAC | Rectangular - 174mm L x 190mm H (120mm Dia) | 115.0mm | 152.0 CFM (4.26m³/min) | - | Ball | Blower, Centrifugal | - | 62.0dB(A) | 105W | - | 4 Wire Leads | - | - | - | 4.5 lbs (2 kg) |
|
R2E160-AF24-10FAN BALL 220VAC |
3,502 | 38.36 |
|
Datasheet |
R2E160 | Bulk | Active | 220VAC | - | - | - | - | Ball | - | - | - | 90.0W | 1700 RPM | - | IP44 | -13 ~ 140°F (-25 ~ 60°C) | - | 2.9 lbs (1.3 kg) |
|
G2E085-AA01-05FAN BLWR CENT 118X80MM 230VAC |
3,316 | 39.61 |
|
Datasheet |
G2E085 | Bulk | Active | 230VAC | Rectangular - 118mm L x 117mm H (85mm Dia) | 80.00mm | 55.9 CFM (1.57m³/min) | - | Ball | Blower, Centrifugal | - | 57.0dB(A) | 30.00W | - | 2 Wire Leads | - | - | - | 1.7 lbs (771.1 g) |
