AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMA1-09238WBHT12EC FAN, 92X92X38MM, 2-BALL BEARI |
125 | 4.24 |
|
Datasheet |
FMA1-09238 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 38.00mm | 67.7 CFM (1.90m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 42.0dB(A) | 5.50W | 3500 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus | - |
|
|
FMA1-09238WBHW12EC FAN, 92X92X38MM, 2-BALL BEARI |
200 | 4.73 |
|
Datasheet |
FMA1-09238 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 38.00mm | 67.7 CFM (1.90m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 42.0dB(A) | 5.50W | 3500 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus | - |
|
LPH12B99-BTHRFAN AXIAL 120X25.5MM 100-240VAC |
1,501 | 5.00 |
|
Datasheet |
LPH12B99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 25.50mm | 79.0 CFM (2.21m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) | 44.0dB(A) | 6.00W | 3000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.325 lb (147.42 g) |
|
DP200A-2123XBL.GNFAN AXIAL 120X38MM 220/240VAC |
2,738 | 3.32 |
|
Datasheet |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 38.50mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 21.00W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (550 g) |
|
SF23080AT-2082HBL.GNFAN AXIAL 80X25.5MM 220/240VAC |
542 | 4.58 |
|
Datasheet |
SF | Bulk | Active | 240VAC | Square - 80mm L x 80mm H | 25.50mm | 22.0 CFM (0.616m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 13.50W | 2900 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.573 lb (260.00 g) |
|
|
SF11580AT-1082HBL.GNFAN AXIAL 80X25.5MM 115VAC WIRE |
336 | 3.82 |
|
Datasheet |
SF | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 25.50mm | 22.0 CFM (0.616m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 11.00W | 2900 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.573 lb (260.00 g) |
|
SF11592A-1092HBL.GNFAN AXIAL 92X25MM 115VAC WIRE |
311 | 3.82 |
|
Datasheet |
SF | Bulk | Active | 115VAC | Square - 91.5mm L x 91.5mm H | 25.50mm | 37.0 CFM (1.04m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 12.00W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.617 lb (280.00 g) |
|
FMA1-12025WBHT12EC FAN, 120X120X25MM, 2-BALL BEA |
161 | 4.34 |
|
Datasheet |
FMA1-12025 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 25.00mm | 79.4 CFM (2.22m³/min) | 0.175 in H2O (43.7 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 44.8dB(A) | 6.00W | 3000 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus | - |
|
LPH80B99-BWHR-PCEC FAN AXIAL 80 X 80 X 25MM W/PA |
446 | 5.54 |
|
Datasheet |
LPH80B99 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 25.50mm | 39.0 CFM (1.09m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Parylene Coating | 31.0dB(A) | 4.50W | 3500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | - | - | 0.209 lb (94.89 g) |
|
|
CF2082HVL-1000U-999EC FAN 80X25MM 220-240V VAPO |
152 | - |
|
Datasheet |
CF | Bulk | Active | 200 ~ 240VAC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 33.0dB(A) | 3.90W | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|
A1123-HBT.GNFAN AXIAL 119.5X38.5MM 115VAC |
120 | 4.40 |
|
Datasheet |
A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 20.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
BXC.jpg)
|
OA109EC-UR-1WBXCEC FAN 120X38MM 85-265VAC 134CFM |
129 | 7.03 |
|
Datasheet |
OA109EC XC | Box | Active | 110/220VAC | Square - 120mm L x 120mm H | 38.00mm | 133.8 CFM (3.79m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 47.0dB | 6.50W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.683 lb (309.8 g) |
|
|
CF1072HVL-1000U-999EC FAN 70X25MM 115V VAPO |
112 | - |
|
Datasheet |
CF | Bulk | Active | 100 ~ 120VAC | Square - 70mm L x 70mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 31.0dB(A) | 3.10W | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|
OA60EC-UR-1WBFAN EC 60X25MM 95-264VAC |
406 | 7.43 |
|
Datasheet |
OA60EC | Box | Active | 95 ~ 264VAC | Square - 60mm L x 60mm H | 25.00mm | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Electronic Commutation (EC), Thermal Overload Protector (TOP) | 31.0dB | 2.40W | 3950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 0.133 lb (60.33 g) |
|
UF12AM23-BTHR-FFAN AXIAL 120X38MM 230VAC |
131 | 6.52 |
|
Datasheet |
UF12AM | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 103.0 CFM (2.88m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 13.00W | 3100 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
4715HS-12T-B50-AM0FAN AXIAL 119X38MM 115VAC TERM |
159 | 6.95 |
|
Datasheet |
HS | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 44.0dB | 15.50W | 3100 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | 14 ~ 149°F (-10 ~ 65°C) | CE, UL, VDE | 1.3 lbs (589.7 g) |
|
|
AFL12AUHE-CGQ5AXIAL 120X38MM 110/230VAC IP52 |
118 | - |
|
Datasheet |
AFL | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 103.6 CFM (2.90m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.60W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40°C ~ 60°C | ATEX, CE, cURus, TUV | - |
|
OA109AP-11-1TB1855FAN AXIAL 119.5X38.5MM 115VAC |
1,504 | 8.84 |
|
Datasheet |
OA109 | Box | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 105.0 CFM (2.94m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 48.0dB | 20.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 1.3 lbs (589.7 g) |
|
OA172SAP-11-3TBFAN AXIAL 172X50.8MM 115VAC TERM |
1,047 | 10.25 |
|
Datasheet |
OA172SAP | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 135.0 CFM (3.78m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Capacitor | 33.0dB | 16.00W | 1800 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 2.6 lbs (1.2 kg) |
|

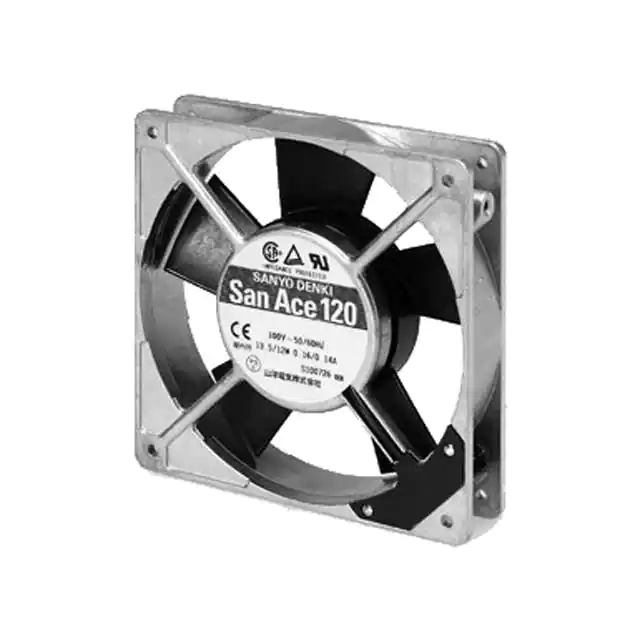

109S024ULFAN 120X38MM 115VAC |
840 | 7.16 |
|
Datasheet |
San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 1.2 lbs (544.3 g) |
