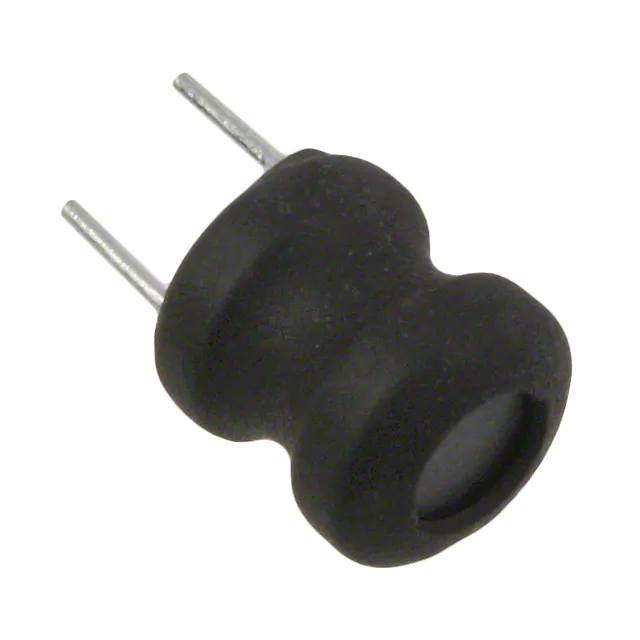

Image | ![]() |
![]() |
![]() |
![]() |
|
Part Number | CVH252009-2R2M | SRN4018-2R2M | RLB0914-681KL | SRN4018-1R0Y | SRN4018-4R7M |
Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
Series | RLB | RLB | RLB | RLB | RLB |
Package/Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
Product Status | Active | Active | Active | Active | Active |
Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
Inductance | 100 µH | 100 µH | 100 µH | 100 µH | 100 µH |
Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
Current Rating (Amps) | 1 A | 1 A | 1 A | 1 A | 1 A |
Current - Saturation (Isat) | 1.2A | 1.2A | 1.2A | 1.2A | 1.2A |
Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
DC Resistance (DCR) | 330mOhm Max | 330mOhm Max | 330mOhm Max | 330mOhm Max | 330mOhm Max |
Q @ Freq | 55 @ 796kHz | 55 @ 796kHz | 55 @ 796kHz | 55 @ 796kHz | 55 @ 796kHz |
Frequency - Self Resonant | 7.2MHz | 7.2MHz | 7.2MHz | 7.2MHz | 7.2MHz |
Ratings | - | - | - | - | - |
Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
Features | - | - | - | - | - |
Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
Supplier Device Package | - | - | - | - | - |
Size / Dimension | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) | 0.343" Dia (8.70mm) |
Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) |
