LSM6DSLTR: How ST's Ultra-Low-Power 6-Axis IMU Chip is Redefining Motion Sensing

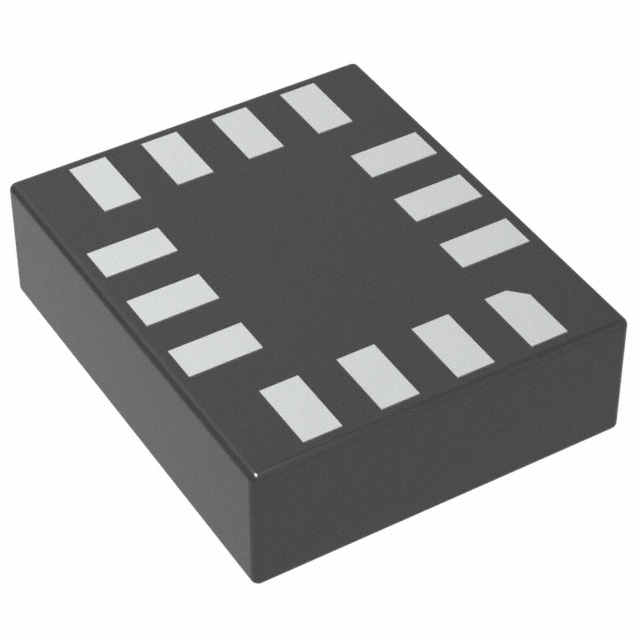

In the era of IoT and smart devices, STMicroelectronics' LSM6DSLTR 6-axis IMU chip has emerged as a revolutionary force across Industry 4.0, consumer electronics, and medical wearables. This micro-sensor measuring just 2.5×3×0.83mm combines a ±16g accelerometer and ±2000dps gyroscope to set a new industry benchmark of 0.65mA ultra-low power consumption.

I. Disruptive Technical Architecture

The LSM6DSLTR's breakthroughs stem from three innovations:

Dual-Sensor Integration

Operates independent 3-axis accelerometer (0.061mg/LSB resolution) and 3-axis gyroscope within an LGA-14 package

Embedded temperature sensor reduces drift with 40% lower thermal error

Adaptive Power Management

0.4mA typical consumption (accelerometer + gyroscope active)

70% host processor power reduction when using 4KB FIFO buffer

Enhanced Robustness

Survives 10,000g mechanical shock (2× industrial standards)

1.71V-3.6V operating voltage supports coin cell operation

 Critical Engineering Specs

ParameterLSM6DSLTRCompetitor BenchmarkAccelerometer Range±2/4/8/16g±8g (BMI270)Gyroscope Range±2000dps±1000dps (ICM-20602)Wake-up Response100μs500μs

II. Industry-Transforming Applications

1. Industrial Predictive Maintenance

Motor bearing monitoring: 2000dps sampling captures >5kHz vibration signatures

Conveyor impact detection: ±16g range identifies cargo collisions, reducing maintenance costs by 30%

2. Consumer Electronics Revolution

TWS earbud tap control: ML algorithms achieve >99% gesture recognition

Smartphone stabilization: ±0.5° tilt accuracy reduces image blur, doubles OIS performance

3. Medical-Grade Vital Monitoring

Fall detection: 10ms free-fall response with GPS auto-alert

Contactless respiration tracking: 0.061mg sensitivity captures chest movement patterns

III. Ready-to-Implement Design Resources

Development Support

Official Reference Designs: STM32CubeMX Configuration

AN5192: 9-axis sensor fusion algorithms (accel + gyro + magnetometer)

FP-SNS-MOTENV1: AI Motion Recognition Library (falling/running classification)

IV. Technical Q&A: Engineer's Critical Concerns

❓ How does 4KB FIFO optimize system power?

The sensor independently stores 12 hours of motion data while host processors enter deep sleep. Real-world tests show: Only 0.2 seconds wake-up time needed per 8 hours for batch data retrieval, delivering 68% system power reduction.

❓ Why is ±2000dps gyro essential for drones?

During high-G maneuvers (>500°/s), standard ±500dps gyroscopes saturate. LSM6DSLTR's ±2000dps range enables 1000Hz full-scale sampling, containing attitude error below 0.1°.

V. The LSM6DSLTR Advantage

Power Dominance: 0.65mA vs Bosch BMI270 (1.2mA) / TDK ICM-20602 (1.1mA)

Expanded Dynamic Range: ±2000dps gyro covers extreme industrial scenarios

Android/iOS Native Drivers: Eliminate porting efforts, shorten time-to-market by 50%

10-Year Lifespan: Validated through 1,000+ -40°C~85°C thermal cycles

Take Action:
Download 113-Page Datasheet | Access STM32 Code Samples
