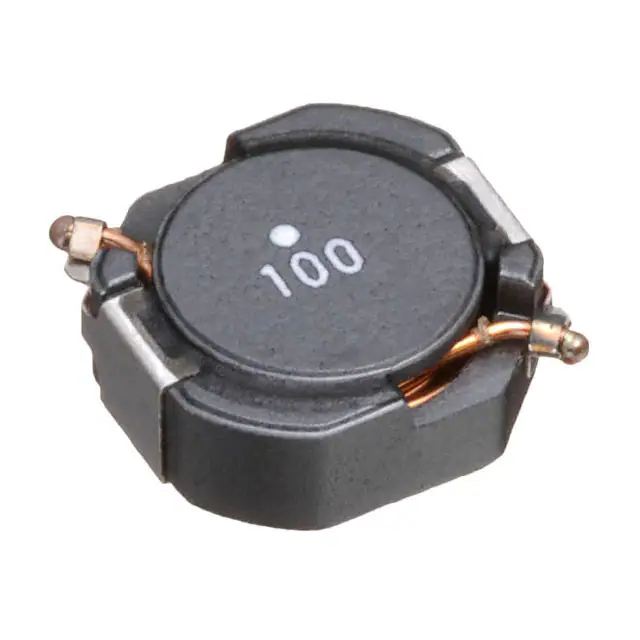

    CLF10040T-101M: High-Performance SMD Inductor for Power and Signal Circuits

    CLF10040T-101M
    Part No.:
    CLF10040T-101M
    Manufacturer:
    TDK Corporation
    Package:
    Nonstandard
    Datasheet:
    CLF10040T-101M.pdf
    Description:
    FIXED IND 100UH 1A 288 MOHM SMD
    Quantity:

    Unit Price:$0

    Ext Price:$0

    Payment:
    Payment
    Shipping:
    Shipping

    Article Details

    • Details
    • Specifications
    • Comparison
    CLF10040T-101M: A Versatile Inductor for Diverse Circuit Needs
    The CLF10040T-101M is a robust surface mount device (SMD) power inductor engineered to deliver exceptional power handling, superior inductance stability, and reliable operation in both power-dense and signal-sensitive circuits. With an inductance of 100 μH (directly indicated by "101M", where
    μH = 100 μH), it is designed to meet the demands of power conversion, energy storage, and noise filtering in medium to high-power applications.
    Key Technical Attributes
    The CLF10040T-101M features a precisely calibrated 100 μH inductance, optimized for medium-frequency and moderate to high-power scenarios. Housed in a sturdy 1004 (10.0mm x 4.0mm) surface-mount package, it integrates effectively into PCBs requiring higher power handling, making it ideal for industrial power supplies, automotive electronics, and renewable energy systems. Constructed with a high-grade ferrite core and thick copper windings, it ensures low DC resistance (DCR) to minimize power loss and excellent saturation current performance to withstand transient current spikes. Its robust design enhances thermal conductivity and mechanical durability, operating reliably across a temperature range from -40°C to +125°C, adapting well to harsh environments.
    Notable Performance Advantages
    This SMD inductor excels in power management circuits, offering superior energy storage capacity to stabilize voltage fluctuations in DC-DC converters and power regulators-critical for industrial machinery, electric vehicle (EV) charging systems, and backup power modules. Its ferrite core construction provides effective EMI suppression, reducing electromagnetic interference in sensitive signal paths such as sensor networks and communication lines. The CLF10040T-101M also boasts excellent frequency response at medium frequencies, ensuring efficient power transfer in energy conversion systems. Additionally, its durable form factor supports long-term reliability in high-stress applications, and its RoHS-compliant design aligns with global environmental standards.
    Diverse Industry Applications
    In industrial automation, the CLF10040T-101M enhances performance in motor drives and power inverters, ensuring stable operation during high-current loads. In automotive electronics, it plays a key role in battery management systems and onboard power modules, withstanding temperature variations and mechanical vibrations. For renewable energy systems, this inductor optimizes performance in solar charge controllers and wind turbine power converters, where reliable energy storage is essential. It also contributes to consumer electronics, aiding in the efficient functioning of high-power adapters and home energy management devices.
    For more insights into CLF10040T-101M or to source top-quality components, check
    out www.hkhaochip.com. Whether you're a startup developing new products or a
    large enterprise seeking bulk orders, this platform offers valuable resources to
    meet your needs.
