    Lumex Opto/Components Inc. W57M-211G

    Part No.:
    W57M-211G
    Manufacturer:
    Lumex Opto/Components Inc.
    Category:
    Pushbutton Switches
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDW57M-211G.pdf
    Description:
    SWITCH PUSHBUTTON 10MA 12V
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Lumex Opto/Components Inc.
    Series:
    W57M
    Packaging:
    Bulk
    Product Status:
    Active
    Mounting Type:
    Panel Mount, Front
    Type:
    Standard, Illuminated
    Circuit:
    SPST (DM)
    Switch Function:
    Off-On
    Current Rating (Amps):
    10mA (DC)
    Voltage Rating - AC:
    -
    Voltage Rating - DC:
    12 V
    Actuator Type:
    Round, Button, Flush
    Actuator Marking:
    -
    Color - Actuator/Cap:
    Silver
    Illumination Type, Color:
    LED, Green
    Illumination Voltage (Nominal):
    3 VDC
    Termination Style:
    Solder Lug
    Ingress Protection:
    IP67 - Dust Tight, Waterproof
    Features:
    -
    Panel Cutout Dimensions:
    Circular - 16.15mm Dia
    Operating Temperature:
    -25°C ~ 85°C
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDW57M-211G.pdf

    1. How to order W57M-211G on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that W57M-211G is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the W57M-211G. All suppliers must pass our qualification reviews before they can publish their products including W57M-211G on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of W57M-211G products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the W57M-211G price and inventory displayed accurate?

    The price and inventory of W57M-211G fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of W57M-211G?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the W57M-211G we delivered, we will accept the replacement or return of the W57M-211G only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of W57M-211G.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as W57M-211G pin diagram, W57M-211G datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

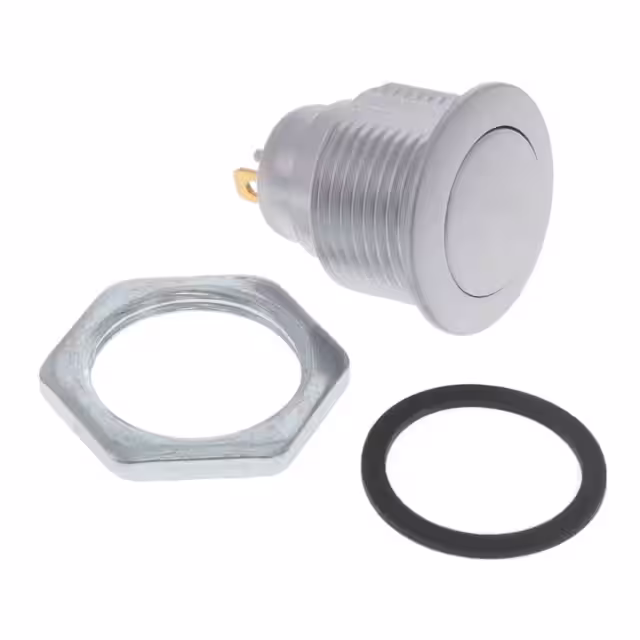

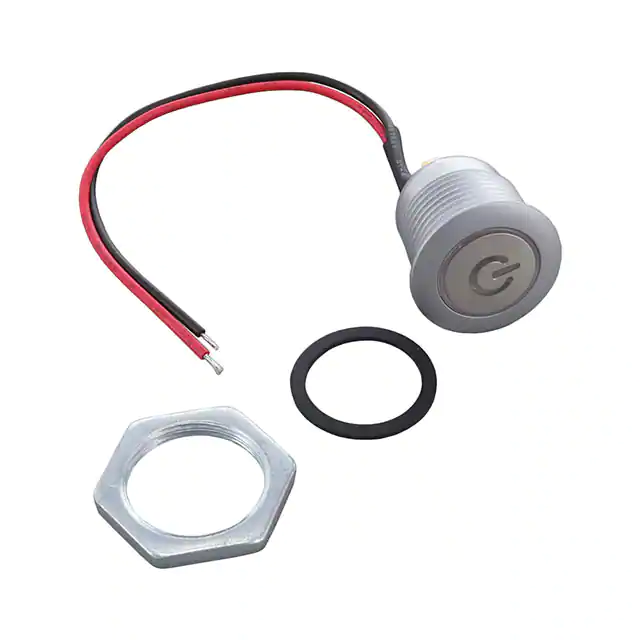

    Image W57M-211G W57M-213B W57M-E12B W57M-110N
    Part Number W57M-211G W57M-213B W57M-E12B W57M-110N
    Manufacturer Lumex Opto/Components Inc. Lumex Opto/Components Inc. Lumex Opto/Components Inc. Lumex Opto/Components Inc.
    Series W57M W57M W57M W57M
    Packaging Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active
    Mounting Type Panel Mount, Front Panel Mount, Front Panel Mount, Front Panel Mount, Front
    Type Standard, Illuminated Standard, Illuminated Standard, Illuminated Standard
    Circuit SPST (DM) SPST-NO SPST-NO (DM) SPST-NO
    Switch Function Off-On Off-On Off-Mom Off-Mom
    Current Rating (Amps) 10mA (DC) 10mA (AC) 10mA (DC) 10mA (AC)
    Voltage Rating - AC - 12 V - 12 V
    Voltage Rating - DC 12 V - 12 V -
    Actuator Type Round, Button, Flush Round, Button, Flush Round, Button, Flush Round, Button, Flush
    Actuator Marking - - - -
    Color - Actuator/Cap Silver Silver Silver Silver
    Illumination Type, Color LED, Green LED, Blue LED, Blue -
    Illumination Voltage (Nominal) 3 VDC 3.1 VDC 3.1 VDC -
    Termination Style Solder Lug Solder Lug Solder Lug Solder Lug
    Ingress Protection IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof
    Features - - - -
    Panel Cutout Dimensions Circular - 16.15mm Dia Circular - 16.15mm Dia Circular - 16.15mm Dia Circular - 16.15mm Dia
    Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
