HONG KONG HAOCHIP TRADING CO., LIMITED

    E-Switch PP1-EB7-1A2

    Part No.:
    PP1-EB7-1A2
    Manufacturer:
    E-Switch
    Category:
    Limit Switches
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDPP1-EB7-1A2.pdf
    Description:
    SWITCH SNAP ACTION SPDT 16A 125V
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    E-Switch
    Series:
    PP1
    Packaging:
    Bulk
    Product Status:
    Active
    Circuit:
    SPDT
    Switch Function:
    On-Mom
    Current Rating (Amps):
    16A (AC)
    Voltage Rating - AC:
    125 V
    Voltage Rating - DC:
    -
    Actuator Type:
    Round (Pin Plunger)
    Mounting Type:
    Panel Mount, Snap-In
    Termination Style:
    Quick Connect - 0.250" (6.3mm)
    Ingress Protection:
    -
    Features:
    White Actuator
    Operating Force:
    300gf
    Release Force:
    -
    Operating Position:
    0.738" (18.7mm)
    Pretravel:
    -
    Differential Travel:
    -
    Overtravel:
    -
    Operating Temperature:
    0°C ~ 85°C
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDPP1-EB7-1A2.pdf

    1. How to order PP1-EB7-1A2 on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that PP1-EB7-1A2 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the PP1-EB7-1A2. All suppliers must pass our qualification reviews before they can publish their products including PP1-EB7-1A2 on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of PP1-EB7-1A2 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the PP1-EB7-1A2 price and inventory displayed accurate?

    The price and inventory of PP1-EB7-1A2 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of PP1-EB7-1A2?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the PP1-EB7-1A2 we delivered, we will accept the replacement or return of the PP1-EB7-1A2 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of PP1-EB7-1A2.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as PP1-EB7-1A2 pin diagram, PP1-EB7-1A2 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

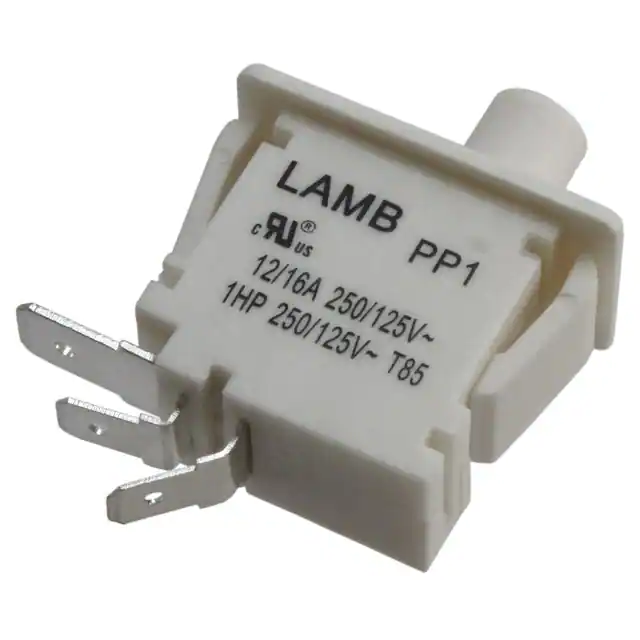

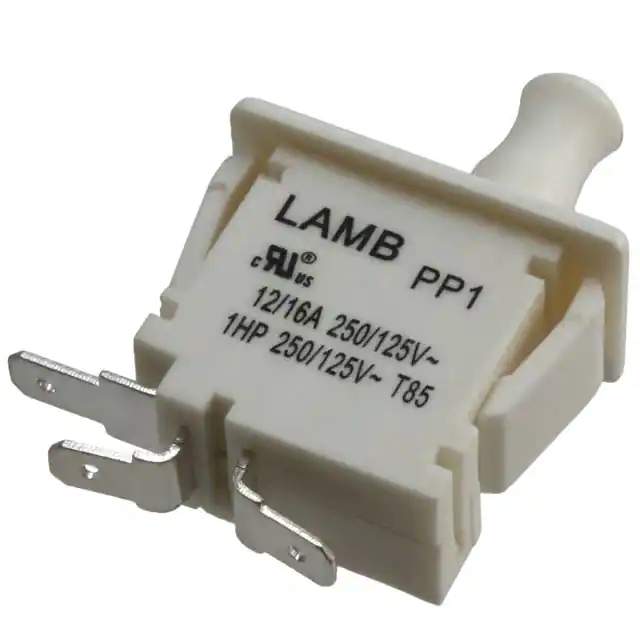

    Image PP1-DT7-2B2 PP1-EB7-1A2 PP1-ET7-2B2 PP1-FB7-2D2 PP1-1T7-2B2
    Part Number PP1-DT7-2B2 PP1-EB7-1A2 PP1-ET7-2B2 PP1-FB7-2D2 PP1-1T7-2B2
    Manufacturer E-Switch E-Switch E-Switch E-Switch E-Switch
    Series PP1 PP1 PP1 PP1 PP1
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Circuit SPDT SPDT SPDT SPDT SPDT
    Switch Function On-Mom On-Mom On-Mom On-Mom On-Mom
    Current Rating (Amps) 16A (AC) 16A (AC) 16A (AC) 16A (AC) 16A (AC)
    Voltage Rating - AC 125 V 125 V 125 V 125 V 125 V
    Voltage Rating - DC - - - - -
    Actuator Type Push-Pull Plunger Round (Pin Plunger) Push-Pull Plunger Round (Pin Plunger) Push-Pull Plunger
    Mounting Type Panel Mount, Snap-In Panel Mount, Snap-In Panel Mount, Snap-In Panel Mount, Snap-In Panel Mount, Snap-In
    Termination Style Quick Connect - 0.187" (4.7mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.187"/0.250" Quick Connect - 0.187" (4.7mm)
    Ingress Protection - - - - -
    Features Pull On Lock White Actuator Pull On Lock White Actuator -
    Operating Force 300gf 300gf 300gf 500gf 300gf
    Release Force - - - - -
    Operating Position 0.654" (16.6mm) 0.738" (18.7mm) 0.654" (16.6mm) 0.362" (9.2mm) -
    Pretravel - - - - -
    Differential Travel - - - - -
    Overtravel - - - - -
    Operating Temperature 0°C ~ 85°C 0°C ~ 85°C 0°C ~ 85°C 0°C ~ 85°C 0°C ~ 85°C
