HONG KONG HAOCHIP TRADING CO., LIMITED

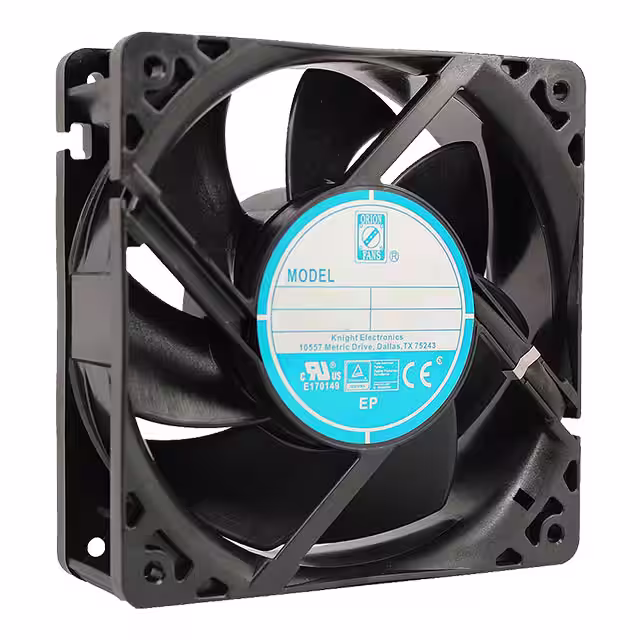

    Orion Fans OA109EC-UR-1TBXC

    Part No.:
    OA109EC-UR-1TBXC
    Manufacturer:
    Orion Fans
    Category:
    AC Fans
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDOA109EC-UR-1TBXC.pdf
    Description:
    EC FAN 120X38MM 85-265VAC TERM
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Orion Fans
    Series:
    OA109EC XC
    Packaging:
    Box
    Product Status:
    Active
    Voltage - Rated:
    110/220VAC
    Size / Dimension:
    Square - 120mm L x 120mm H
    Width:
    38.00mm
    Air Flow:
    133.8 CFM (3.79m³/min)
    Static Pressure:
    0.420 in H2O (104.6 Pa)
    Bearing Type:
    Ball
    Fan Type:
    Tubeaxial
    Features:
    Dual Voltage, Electronic Commutation (EC)
    Noise:
    47.0dB
    Power (Watts):
    6.50W
    RPM:
    3000 RPM
    Termination:
    2 Terminals
    Ingress Protection:
    -
    Operating Temperature:
    14 ~ 158°F (-10 ~ 70°C)
    Approval Agency:
    CE, cURus, TUV, UR
    Weight:
    0.683 lb (309.8 g)
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDOA109EC-UR-1TBXC.pdf

    1. How to order OA109EC-UR-1TBXC on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that OA109EC-UR-1TBXC is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the OA109EC-UR-1TBXC. All suppliers must pass our qualification reviews before they can publish their products including OA109EC-UR-1TBXC on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of OA109EC-UR-1TBXC products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the OA109EC-UR-1TBXC price and inventory displayed accurate?

    The price and inventory of OA109EC-UR-1TBXC fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of OA109EC-UR-1TBXC?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the OA109EC-UR-1TBXC we delivered, we will accept the replacement or return of the OA109EC-UR-1TBXC only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of OA109EC-UR-1TBXC.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as OA109EC-UR-1TBXC pin diagram, OA109EC-UR-1TBXC datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

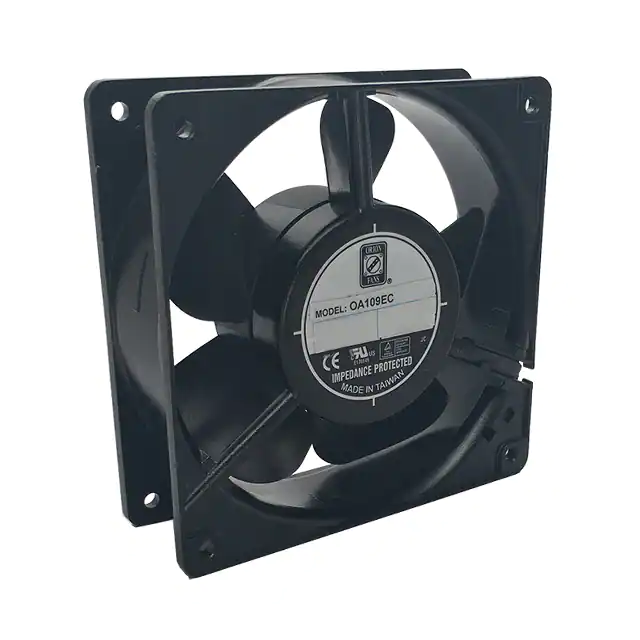

    Image OA109EC-UR-1TBXC OA109EC-UR-1WBXC OA109EC-UR-1TBIP68A OA109EC-UR-1WBIP68A OA109EC-UR-1TB
    Part Number OA109EC-UR-1TBXC OA109EC-UR-1WBXC OA109EC-UR-1TBIP68A OA109EC-UR-1WBIP68A OA109EC-UR-1TB
    Manufacturer Orion Fans Orion Fans Orion Fans Orion Fans Orion Fans
    Series OA109EC XC OA109EC XC OA109EC OA109EC OA109EC
    Packaging Box Box Box Box Box
    Product Status Active Active Active Active Active
    Voltage - Rated 110/220VAC 110/220VAC 115/230VAC 115/230VAC 115/230VAC
    Size / Dimension Square - 120mm L x 120mm H Square - 120mm L x 120mm H Square - 120mm L x 120mm H Square - 120mm L x 120mm H Square - 120mm L x 120mm H
    Width 38.00mm 38.00mm 38.00mm 38.00mm 38.00mm
    Air Flow 133.8 CFM (3.79m³/min) 133.8 CFM (3.79m³/min) 106.0 CFM (2.97m³/min) 106.0 CFM (2.97m³/min) 106.0 CFM (2.97m³/min)
    Static Pressure 0.420 in H2O (104.6 Pa) 0.420 in H2O (104.6 Pa) 0.340 in H2O (84.7 Pa) 0.340 in H2O (84.7 Pa) 0.340 in H2O (84.7 Pa)
    Bearing Type Ball Ball Ball Ball Ball
    Fan Type Tubeaxial Tubeaxial Tubeaxial Tubeaxial Tubeaxial
    Features Dual Voltage, Electronic Commutation (EC) Dual Voltage, Electronic Commutation (EC) Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP)
    Noise 47.0dB 47.0dB 43.0dB 43.0dB 43.0dB
    Power (Watts) 6.50W 6.50W 4.90W, 5.20W 4.90W, 5.20W 4.90W, 5.20W
    RPM 3000 RPM 3000 RPM 3200 RPM 3200 RPM 3200 RPM
    Termination 2 Terminals 2 Wire Leads 2 Terminals 2 Wire Leads 2 Terminals
    Ingress Protection - - IP68 - Dust Tight, Waterproof IP68 - Dust Tight, Waterproof -
    Operating Temperature 14 ~ 158°F (-10 ~ 70°C) 14 ~ 158°F (-10 ~ 70°C) -4 ~ 158°F (-20 ~ 70°C) -4 ~ 158°F (-20 ~ 70°C) -4 ~ 158°F (-20 ~ 70°C)
    Approval Agency CE, cURus, TUV, UR CE, cURus, TUV, UR ATEX, CE, cURus, UR ATEX, CE, cURus, UR CE, cURus, UR
    Weight 0.683 lb (309.8 g) 0.683 lb (309.8 g) 0.64 lb (290.3 g) 0.64 lb (290.3 g) 0.64 lb (290.3 g)
