HONG KONG HAOCHIP TRADING CO., LIMITED

    Moujen MVS-3204

    Part No.:
    MVS-3204
    Manufacturer:
    Moujen
    Category:
    Limit Switches
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDMVS-3204.pdf
    Description:
    SWITCH SNAP ACTION SPDT 6A 250V
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Moujen
    Series:
    MVS
    Packaging:
    Retail Package
    Product Status:
    Active
    Circuit:
    SPDT
    Switch Function:
    On-Mom
    Current Rating (Amps):
    6A (AC), 500mA (DC)
    Voltage Rating - AC:
    250 V
    Voltage Rating - DC:
    125 V
    Actuator Type:
    Lever, Roller
    Mounting Type:
    Chassis Mount
    Termination Style:
    Quick Connect - 0.250" (6.3mm)
    Ingress Protection:
    IP40
    Features:
    Positive Opening
    Operating Force:
    220gf
    Release Force:
    50gf
    Operating Position:
    -
    Pretravel:
    0.051" (1.3mm)
    Differential Travel:
    0.006" (0.15mm)
    Overtravel:
    0.051" (1.3mm)
    Operating Temperature:
    -40°C ~ 85°C
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDMVS-3204.pdf

    1. How to order MVS-3204 on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that MVS-3204 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the MVS-3204. All suppliers must pass our qualification reviews before they can publish their products including MVS-3204 on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of MVS-3204 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the MVS-3204 price and inventory displayed accurate?

    The price and inventory of MVS-3204 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of MVS-3204?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the MVS-3204 we delivered, we will accept the replacement or return of the MVS-3204 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of MVS-3204.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as MVS-3204 pin diagram, MVS-3204 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

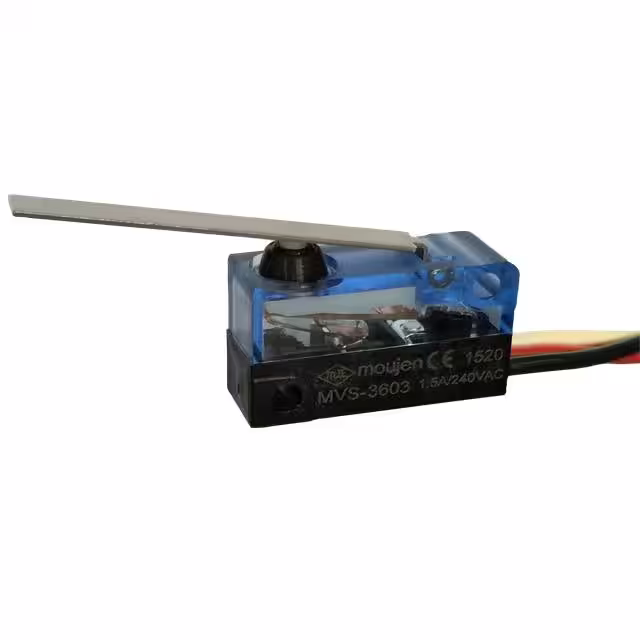

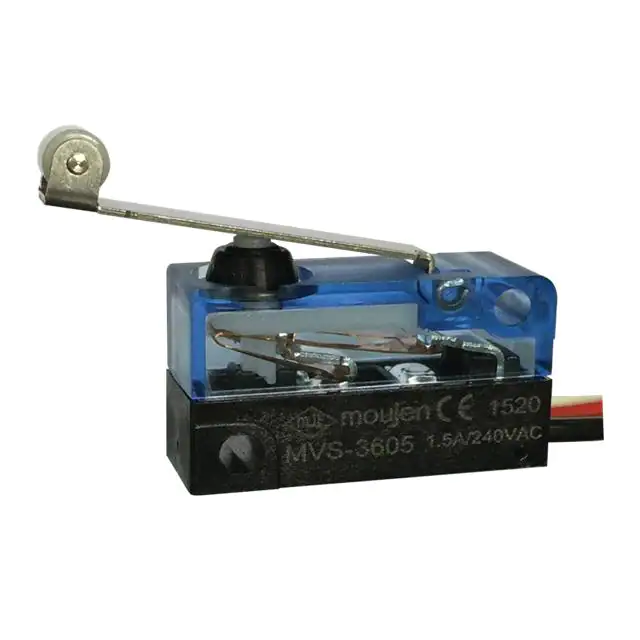

    Image MVS-3200 MVS-3203 MVS-3204 MVS-3603 MVS-3605
    Part Number MVS-3200 MVS-3203 MVS-3204 MVS-3603 MVS-3605
    Manufacturer Moujen Moujen Moujen Moujen Moujen
    Series MVS MVS MVS MVS-36 MVS-36
    Packaging Retail Package Retail Package Retail Package Bulk Bulk
    Product Status Active Active Active Active Active
    Circuit SPDT SPDT SPDT SPDT SPDT
    Switch Function On-Mom On-Mom On-Mom On-Mom On-Mom
    Current Rating (Amps) 6A (AC), 500mA (DC) 6A (AC), 500mA (DC) 6A (AC), 500mA (DC) 1.5 (AC), 500mA (DC) 1.5 (AC), 500mA (DC)
    Voltage Rating - AC 250 V 250 V 250 V 230 V 230 V
    Voltage Rating - DC 125 V 125 V 125 V 60 V 60 V
    Actuator Type Round (Pin Plunger) Lever, Straight Lever, Roller Lever, Straight Lever, Roller
    Mounting Type Chassis Mount Chassis Mount Chassis Mount Chassis Mount Chassis Mount
    Termination Style Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Quick Connect - 0.250" (6.3mm) Cable Leads Cable Leads
    Ingress Protection IP40 IP40 IP40 IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof
    Features Positive Opening Positive Opening Positive Opening - -
    Operating Force 250gf 140gf 220gf 50gf 74gf
    Release Force 50gf 20gf 50gf 8.000gf 56gf
    Operating Position - - - - -
    Pretravel 0.047" (1.2mm) 0.150" (3.8mm) 0.051" (1.3mm) 0.114" (2.9mm) 0.080" (2.0mm)
    Differential Travel 0.005" (0.13mm) 0.020" (0.5mm) 0.006" (0.15mm) 0.045" (1.1mm) 0.035" (0.9mm)
    Overtravel 0.039" (1.0mm) 0.118" (3.0mm) 0.051" (1.3mm) 0.235" (6.0mm) 0.161" (4.1mm)
    Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 80°C -40°C ~ 80°C
