HONG KONG HAOCHIP TRADING CO., LIMITED

    Amphenol PCTEL GL4X4-SF-PLK

    Part No.:
    GL4X4-SF-PLK
    Manufacturer:
    Amphenol PCTEL
    Category:
    RF Antennas
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDGL4X4-SF-PLK.pdf
    Description:
    RF ANT 657.5MHZ DOME SMA MALE
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Amphenol PCTEL
    Series:
    -
    Packaging:
    Box
    Product Status:
    Active
    RF Family/Standard:
    Cellular, Navigation
    Frequency Group:
    Wide Band
    Frequency (Center/Band):
    657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.495GHz, 3.6GHz, 5.55GHz
    Frequency Range:
    617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz
    Antenna Type:
    Dome
    Number of Bands:
    10
    VSWR:
    2
    Return Loss:
    -
    Gain:
    -0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 2.2dBi, 4.7dBi, 2.6dBi, 5.8dBi
    Power - Max:
    50 W
    Features:
    Cable - 5.18m
    Termination:
    SMA Male (2)
    Ingress Protection:
    IP67
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Panel Mount
    Height (Max):
    3.012" (76.50mm)
    Applications:
    2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDGL4X4-SF-PLK.pdf

    1. How to order GL4X4-SF-PLK on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that GL4X4-SF-PLK is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the GL4X4-SF-PLK. All suppliers must pass our qualification reviews before they can publish their products including GL4X4-SF-PLK on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of GL4X4-SF-PLK products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the GL4X4-SF-PLK price and inventory displayed accurate?

    The price and inventory of GL4X4-SF-PLK fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of GL4X4-SF-PLK?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the GL4X4-SF-PLK we delivered, we will accept the replacement or return of the GL4X4-SF-PLK only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of GL4X4-SF-PLK.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as GL4X4-SF-PLK pin diagram, GL4X4-SF-PLK datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

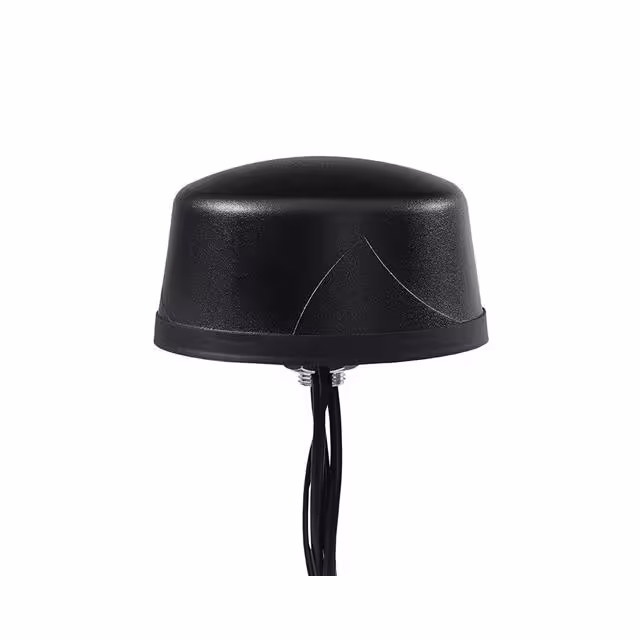

    Image GL4X4-SF-PLK GL4X4MIMO-SF
    Part Number GL4X4-SF-PLK GL4X4MIMO-SF
    Manufacturer Amphenol PCTEL Amphenol PCTEL
    Series - -
    Packaging Box Box
    Product Status Active Active
    RF Family/Standard Cellular, Navigation Navigation, WiFi
    Frequency Group Wide Band Wide Band
    Frequency (Center/Band) 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.495GHz, 3.6GHz, 5.55GHz 1.5865GHz, 2.45GHz, 5.445GHz
    Frequency Range 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz 1.565GHz ~ 1.608GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.99GHz
    Antenna Type Dome Dome
    Number of Bands 10 3
    VSWR 2 1.5
    Return Loss - -
    Gain -0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 2.2dBi, 4.7dBi, 2.6dBi, 5.8dBi -2dBic, 3dBic, 4dBi, 4dBi
    Power - Max 50 W 25 W
    Features Cable - 5.18m LNA
    Termination SMA Male (2) RP-SMA, SMA
    Ingress Protection IP67 IP67
    Grade - -
    Qualification - -
    Mounting Type Panel Mount Panel Mount
    Height (Max) 3.012" (76.50mm) 2.638" (67.00mm)
    Applications 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE Bluetooth, GLONASS, GNSS, GPS, Wi-Fi
