Home > Products > Inductors, Coils, Chokes > Fixed Inductors

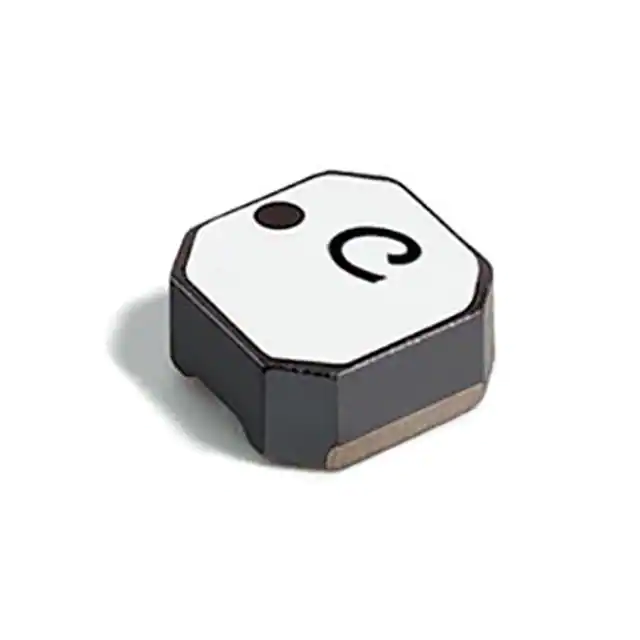

Coilcraft LPS4018-222MRC

Name: LPS4018-222MRC
Brand: Coilcraft
SKU: LPS4018-222MRC
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: LPS4018-222MRC

Manufacturer:: Coilcraft

Category:: Fixed Inductors

Package:: Nonstandard

Datasheet:: LPS4018-222MRC.pdf

Description:: FIXED IND 2.2UH 2A 70 MOHM SMD

Quantity:: RFQ Add To RFQ list

Product details

Specifications
FAQ
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Coilcraft

Series:: LPS4018

Package/Case:: Nonstandard

Packaging:: Strip

Product Status:: Active

Type:: Drum Core

Material - Core:: Ferrite

Inductance:: 2.2 µH

Tolerance:: ±20%

Current Rating (Amps):: 1.5 A

Current - Saturation (Isat):: 2.7A

Shielding:: Shielded

DC Resistance (DCR):: 70mOhm Max

Q @ Freq:: -

Frequency - Self Resonant:: 90MHz

Ratings:: AEC-Q200

Operating Temperature:: -40°C ~ 125°C

Inductance Frequency - Test:: 100 kHz

Features:: -

Mounting Type:: Surface Mount

Supplier Device Package:: -

Size / Dimension:: 0.154" L x 0.154" W (3.90mm x 3.90mm)

Height - Seated (Max):: 0.071" (1.80mm)

Datasheet:: LPS4018-222MRC.pdf
