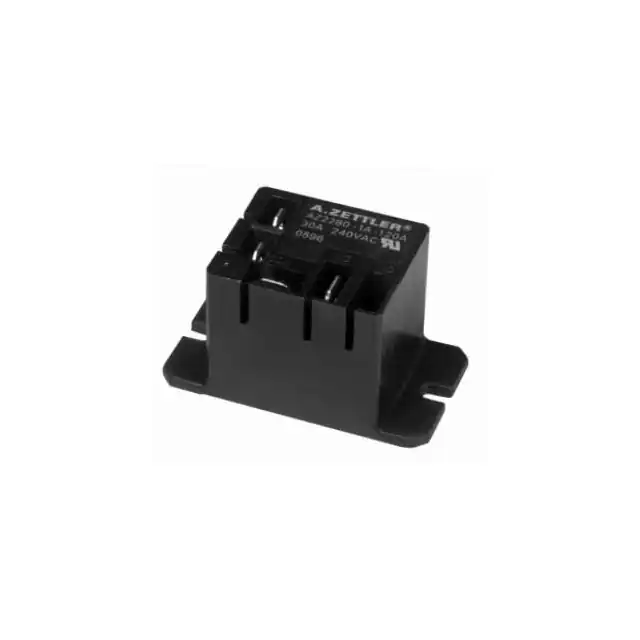

    American Zettler AZ2280-1C-120AEF

    Part No.:
    AZ2280-1C-120AEF
    Manufacturer:
    American Zettler
    Category:
    Power Relays, Over 2 Amps
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDAZ2280-1C-120AEF.pdf
    Description:
    RELAY GEN PURPOSE SPDT 20A 120V
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    American Zettler
    Series:
    AZ2280
    Packaging:
    Tray
    Product Status:
    Active
    Mounting Type:
    Chassis Mount
    Coil Voltage:
    120VAC
    Contact Form:
    SPDT (1 Form C)
    Contact Rating (Current):
    20 A
    Switching Voltage:
    277VAC, 28VDC - Max
    Load - Max Switching:
    11080VA, 840W
    Coil Current:
    48 mA
    Coil Type:
    Non Latching
    Features:
    -
    Termination Style:
    Quick Connect - 0.187"/0.250"
    Seal Rating:
    Sealed - Fully
    Coil Insulation:
    Class F
    Must Operate Voltage:
    102 VAC
    Must Release Voltage:
    24 VAC
    Operate Time:
    15 ms
    Release Time:
    10 ms
    Operating Temperature:
    -55°C ~ 60°C
    Contact Material:
    Silver Cadmium Oxide (AgCdO)
    Relay Type:
    General Purpose
    Grade:
    -
    Qualification:
    -
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDAZ2280-1C-120AEF.pdf
