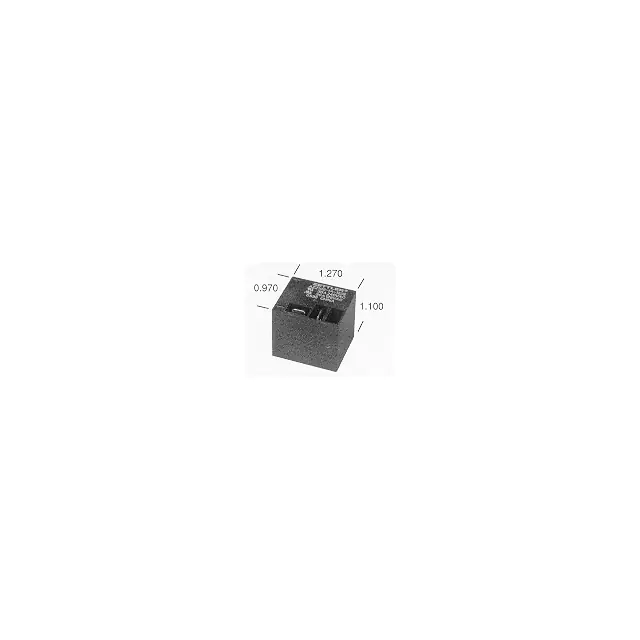

    American Zettler AZ2100-1C-24DEF

    Part No.:
    AZ2100-1C-24DEF
    Manufacturer:
    American Zettler
    Category:
    Power Relays, Over 2 Amps
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDAZ2100-1C-24DEF.pdf
    Description:
    RELAY GEN PURPOSE SPDT 30A 24V
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    American Zettler
    Series:
    AZ2100
    Packaging:
    Tray
    Product Status:
    Active
    Mounting Type:
    Through Hole
    Coil Voltage:
    24VDC
    Contact Form:
    SPDT (1 Form C)
    Contact Rating (Current):
    40 A
    Switching Voltage:
    277VAC, 30VDC - Max
    Load - Max Switching:
    12000VA, 1200W
    Coil Current:
    36.4 mA
    Coil Type:
    Non Latching
    Features:
    -
    Termination Style:
    PC Pin, Quick Connect - 0.250" (6.3mm)
    Seal Rating:
    Sealed - Fully
    Coil Insulation:
    Class F
    Must Operate Voltage:
    18 VDC
    Must Release Voltage:
    2.4 VDC
    Operate Time:
    15 ms
    Release Time:
    10 ms
    Operating Temperature:
    -55°C ~ 85°C
    Contact Material:
    Silver Cadmium Oxide (AgCdO)
    Relay Type:
    General Purpose
    Grade:
    -
    Qualification:
    -
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDAZ2100-1C-24DEF.pdf

    1. How to order AZ2100-1C-24DEF on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that AZ2100-1C-24DEF is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the AZ2100-1C-24DEF. All suppliers must pass our qualification reviews before they can publish their products including AZ2100-1C-24DEF on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of AZ2100-1C-24DEF products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the AZ2100-1C-24DEF price and inventory displayed accurate?

    The price and inventory of AZ2100-1C-24DEF fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of AZ2100-1C-24DEF?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the AZ2100-1C-24DEF we delivered, we will accept the replacement or return of the AZ2100-1C-24DEF only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of AZ2100-1C-24DEF.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as AZ2100-1C-24DEF pin diagram, AZ2100-1C-24DEF datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

    Image AZ2100-1AE-5DEF AZ2100-1A-24DE AZ2100-1AE-15DE AZ2100-1A-12DEF AZ2100-1A-24DEF
    Part Number AZ2100-1AE-5DEF AZ2100-1A-24DE AZ2100-1AE-15DE AZ2100-1A-12DEF AZ2100-1A-24DEF
    Manufacturer American Zettler American Zettler American Zettler American Zettler American Zettler
    Series AZ2100 AZ2100 AZ2100 AZ2100 AZ2100
    Packaging Tray Box Box Box Tray
    Product Status Active Active Active Active Active
    Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
    Coil Voltage 5VDC 24VDC 15VDC 12VDC 24VDC
    Contact Form SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A) SPST-NO (1 Form A)
    Contact Rating (Current) 40 A 40 A 40 A 40 A 40 A
    Switching Voltage 300VAC, 30VDC - Max 300VAC, 30VDC - Max 300VAC, 30VDC - Max 277VAC, 30VDC - Max 277VAC, 30VDC - Max
    Load - Max Switching 12000VA, 1200W 12000VA, 1200W 12000VA, 1200W 12000VA, 1200W 12000VA, 1200W
    Coil Current 185.2 mA 36.4 mA 58.6 mA 77.4 mA 36.4 mA
    Coil Type Non Latching Non Latching Non Latching Non Latching Non Latching
    Features - - - - -
    Termination Style PC Pin, Quick Connect - 0.250" (6.3mm) PC Pin, Quick Connect - 0.250" (6.3mm) PC Pin, Quick Connect - 0.250" (6.3mm) PC Pin, Quick Connect - 0.250" (6.3mm) PC Pin, Quick Connect - 0.250" (6.3mm)
    Seal Rating Sealed - Fully Sealed - Fully Sealed - Fully Sealed - Fully Sealed - Fully
    Coil Insulation Class F Class B Class B Class F Class F
    Must Operate Voltage 3.75 VDC 18 VDC 11.25 VDC 9 VDC 18 VDC
    Must Release Voltage 0.5 VDC 2.4 VDC 1.5 VDC 1.2 VDC 2.4 VDC
    Operate Time 15 ms 15 ms 15 ms 15 ms 15 ms
    Release Time 10 ms 10 ms 10 ms 10 ms 10 ms
    Operating Temperature -55°C ~ 105°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C
    Contact Material Silver Tin Oxide (AgSnO) Silver Cadmium Oxide (AgCdO) Silver Tin Oxide (AgSnO) Silver Cadmium Oxide (AgCdO) Silver Cadmium Oxide (AgCdO)
    Relay Type General Purpose General Purpose General Purpose General Purpose General Purpose
    Grade - - - - -
    Qualification - - - - -
