HONG KONG HAOCHIP TRADING CO., LIMITED

    Orient Display AMC2004AR-B-G6WFDW

    Part No.:
    AMC2004AR-B-G6WFDW
    Manufacturer:
    Orient Display
    Category:
    LCD, OLED Character and Numeric
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDAMC2004AR-B-G6WFDW.pdf
    Description:
    20x4 Character, STN pos. White b
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Orient Display
    Series:
    -
    Packaging:
    Bag
    Product Status:
    Active
    Number of Characters:
    80.0
    Display Format:
    20 x 4
    Character Format:
    5 x 8 Dots
    Display Type:
    STN - Super-Twisted Nematic
    Display Mode:
    Transflective
    Character Size:
    4.75mm H x 2.95mm W
    Outline L x W x H:
    98.00mm x 60.00mm x 15.00mm
    Viewing Area:
    76.00mm L x 25.20mm W
    Backlight:
    LED - White
    Voltage - Supply:
    4.5V ~ 5.5V
    Dot Size:
    0.55mm W x 0.55mm H
    Interface:
    -
    Controller Type:
    S6A0069
    Operating Temperature:
    -20°C ~ 70°C
    Text Color:
    Blue
    Background Color:
    Gray
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITEDAMC2004AR-B-G6WFDW.pdf

    1. How to order AMC2004AR-B-G6WFDW on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that AMC2004AR-B-G6WFDW is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the AMC2004AR-B-G6WFDW. All suppliers must pass our qualification reviews before they can publish their products including AMC2004AR-B-G6WFDW on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of AMC2004AR-B-G6WFDW products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the AMC2004AR-B-G6WFDW price and inventory displayed accurate?

    The price and inventory of AMC2004AR-B-G6WFDW fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of AMC2004AR-B-G6WFDW?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the AMC2004AR-B-G6WFDW we delivered, we will accept the replacement or return of the AMC2004AR-B-G6WFDW only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of AMC2004AR-B-G6WFDW.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as AMC2004AR-B-G6WFDW pin diagram, AMC2004AR-B-G6WFDW datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

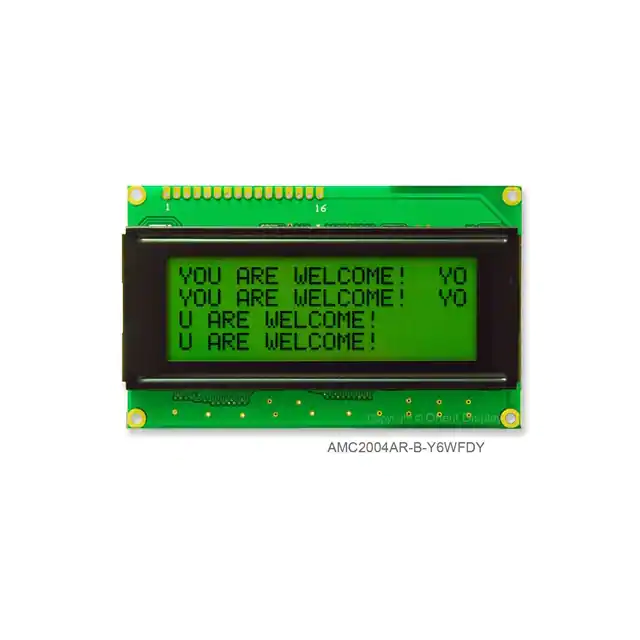

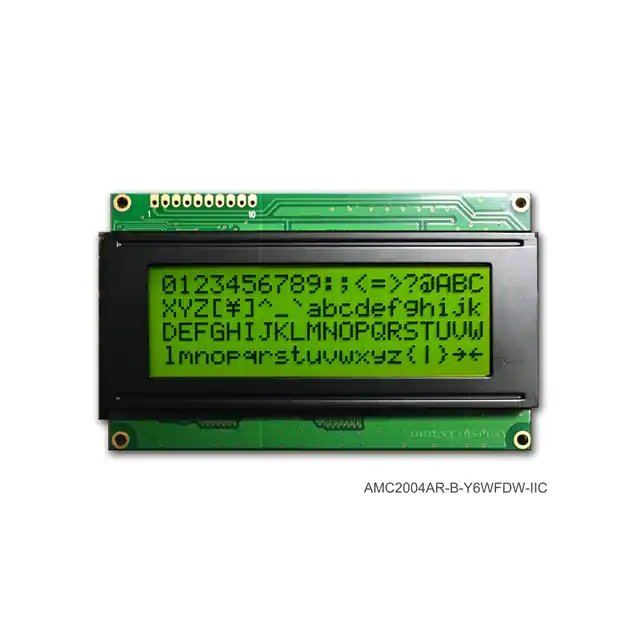

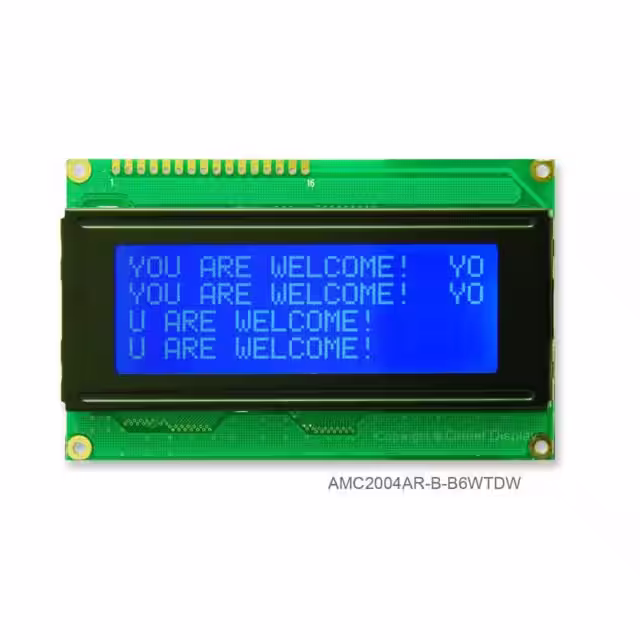

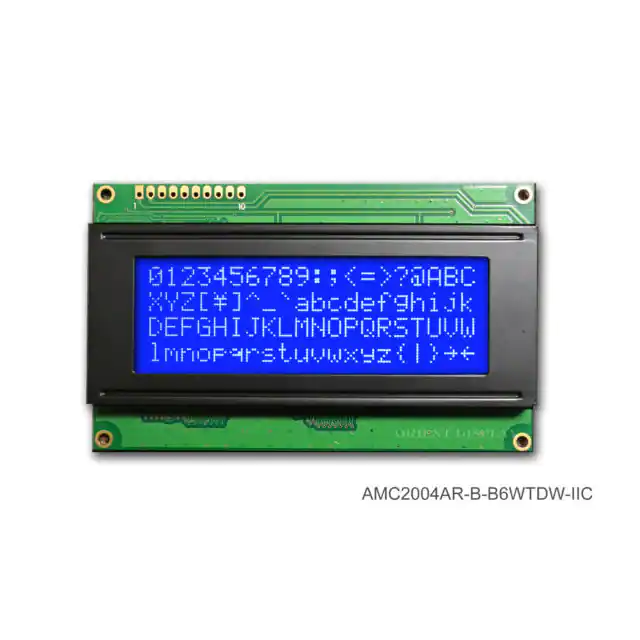

    Image AMC2004AR-B-G6WFDW AMC2004AR-B-Y6WFDY-I2C AMC2004AR-B-Y6WFDY AMC2004AR-B-B6WTDW AMC2004AR-B-B6WTDW-I2C
    Part Number AMC2004AR-B-G6WFDW AMC2004AR-B-Y6WFDY-I2C AMC2004AR-B-Y6WFDY AMC2004AR-B-B6WTDW AMC2004AR-B-B6WTDW-I2C
    Manufacturer Orient Display ORIENT DISPLAY ORIENT DISPLAY ORIENT DISPLAY ORIENT DISPLAY
    Series - - - - -
    Packaging Bag Box Box Box Box
    Product Status Active Active Active Active Active
    Number of Characters 80.0 80.0 80.0 80.0 80.0
    Display Format 20 x 4 20 x 4 20 x 4 20 x 4 20 x 4
    Character Format 5 x 8 Dots 5 x 8 Dots 5 x 8 Dots 5 x 8 Dots 5 x 8 Dots
    Display Type STN - Super-Twisted Nematic STN - Super-Twisted Nematic STN - Super-Twisted Nematic STN - Super-Twisted Nematic STN - Super-Twisted Nematic
    Display Mode Transflective Transflective Transflective Transmissive Transmissive
    Character Size 4.75mm H x 2.95mm W 4.75mm H x 2.95mm W 4.75mm H x 2.95mm W 4.75mm H x 2.95mm W 4.75mm H x 2.95mm W
    Outline L x W x H 98.00mm x 60.00mm x 15.00mm 98.00mm x 60.00mm x 13.50mm 98.00mm x 60.00mm x 15.00mm 98.00mm x 60.00mm x 15.00mm 98.00mm x 60.00mm x 15.00mm
    Viewing Area 76.00mm L x 25.20mm W 76.00mm L x 25.20mm W 76.00mm L x 25.20mm W 76.00mm L x 25.20mm W 76.00mm L x 25.20mm W
    Backlight LED - White LED - Yellow/Green LED - Yellow/Green LED - White LED - White
    Voltage - Supply 4.5V ~ 5.5V 4.5V ~ 5.5V 4.5V ~ 5.5V 4.5V ~ 5.5V 4.5V ~ 5.5V
    Dot Size 0.55mm W x 0.55mm H 0.55mm W x 0.55mm H 0.55mm W x 0.55mm H 0.55mm W x 0.55mm H 0.55mm W x 0.55mm H
    Interface - I2C Parallel Parallel, 8-Bit I2C
    Controller Type S6A0069 AC780S ST7066Uv22 S6A0069 AC780S
    Operating Temperature -20°C ~ 70°C -20°C ~ 70°C -20°C ~ 70°C -20°C ~ 70°C -20°C ~ 70°C
    Text Color Blue Dark Blue Dark White White
    Background Color Gray Yellow/Green Yellow/Green Blue Blue
