HONG KONG HAOCHIP TRADING CO., LIMITED

    Visual Communications Company - VCC 4301F1/5

    Part No.:
    4301F1/5
    Manufacturer:
    Visual Communications Company - VCC
    Category:
    LED Indication - Discrete
    Package:
    Radial
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITED4301F1/5.pdf
    Description:
    LED GREEN/RED DIFFUSED T-1 T/H
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Visual Communications Company - VCC
    Series:
    -
    Package/Case:
    Radial
    Packaging:
    Bulk
    Product Status:
    Not For New Designs
    Color:
    Green, Red
    Configuration:
    Bidirectional
    Lens Color:
    White
    Lens Transparency:
    Diffused
    Millicandela Rating:
    12.6mcd Green, 3.7mcd Red
    Lens Style:
    Round with Domed Top
    Lens Size:
    3mm, T-1
    Voltage - Forward (Vf) (Typ):
    2.1V Green, 1.8V Red
    Current - Test:
    20mA Green, 20mA Red
    Viewing Angle:
    100°
    Mounting Type:
    Through Hole
    Wavelength - Dominant:
    -
    Wavelength - Peak:
    565nm Green, 660nm Red
    Features:
    -
    Grade:
    -
    Qualification:
    -
    Supplier Device Package:
    T-1
    Size / Dimension:
    -
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITED4301F1/5.pdf

    1. How to order 4301F1/5 on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that 4301F1/5 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the 4301F1/5. All suppliers must pass our qualification reviews before they can publish their products including 4301F1/5 on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of 4301F1/5 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the 4301F1/5 price and inventory displayed accurate?

    The price and inventory of 4301F1/5 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of 4301F1/5?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 4301F1/5 we delivered, we will accept the replacement or return of the 4301F1/5 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of 4301F1/5.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as 4301F1/5 pin diagram, 4301F1/5 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

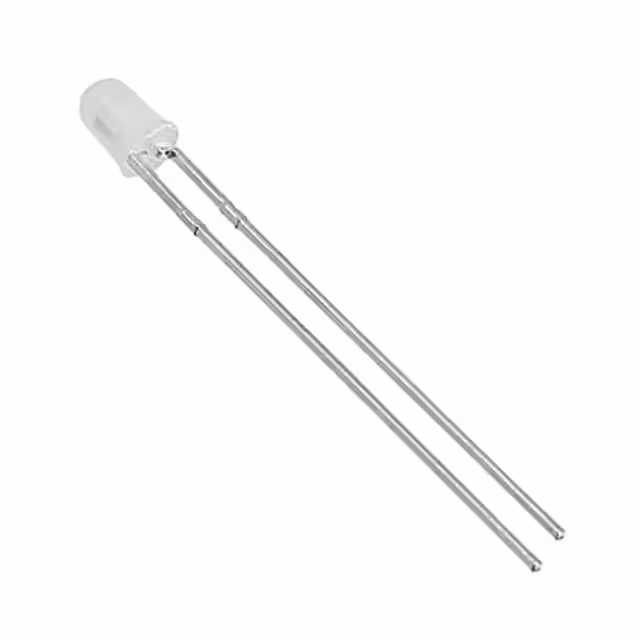

    Image 4301F1/5 4301F1/5-A 4301F11/17
    Part Number 4301F1/5 4301F1/5-A 4301F11/17
    Manufacturer Visual Communications Company - VCC Visual Communications Company - VCC Visual Communications Company - VCC
    Series - - -
    Package/Case Radial Radial Radial
    Packaging Bulk Bulk Bulk
    Product Status Not For New Designs Not For New Designs Obsolete
    Color Green, Red Green, Red Red, Yellow
    Configuration Bidirectional Bidirectional Bidirectional
    Lens Color White White White
    Lens Transparency Diffused Diffused Diffused
    Millicandela Rating 12.6mcd Green, 3.7mcd Red 3.7mcd Green, 12.6mcd Red 40mcd Red, 20mcd Yellow
    Lens Style Round with Domed Top Round with Domed Top Round with Domed Top
    Lens Size 3mm, T-1 3mm, T-1 3mm, T-1
    Voltage - Forward (Vf) (Typ) 2.1V Green, 1.8V Red 2.1V Green, 1.8V Red 2V Red, 2.1V Yellow
    Current - Test 20mA Green, 20mA Red 20mA Green, 20mA Red 20mA Red, 20mA Yellow
    Viewing Angle 100° 100° 60°
    Mounting Type Through Hole Through Hole Through Hole
    Wavelength - Dominant - - -
    Wavelength - Peak 565nm Green, 660nm Red 565nm Green, 660nm Red 625nm Red, 590nm Yellow
    Features - - -
    Grade - - -
    Qualification - - -
    Supplier Device Package T-1 T-1 T-1
    Size / Dimension - - -
