    Ledex Dormeyer Saia, a Division of Johnson Electric 195206-225

    Part No.:
    195206-225
    Manufacturer:
    Ledex Dormeyer Saia, a Division of Johnson Electric
    Category:
    Solenoids
    Package:
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITED195206-225.pdf
    Description:
    TUBULAR SOLENOID STA PULL 1 X 2
    Quantity:

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Ledex Dormeyer Saia, a Division of Johnson Electric
    Series:
    STA
    Packaging:
    Bulk
    Product Status:
    Active
    Technology:
    Electromechanical
    Type:
    Closed Frame (Pull), Tubular
    Duty Cycle:
    Intermittent
    Voltage - Rated:
    12VDC
    Stroke Length:
    0.750" (19.05mm)
    Power (Watts):
    29.4 W
    DC Resistance (DCR):
    4.9Ohm
    Bushing Thread:
    3/4-16 UNF
    Mounting Type:
    Panel Mount
    Termination Style:
    Wire Leads
    Size / Dimension:
    1.000" Dia x 2.000" L (25.40mm x 50.80mm)
    Diameter - Shaft:
    0.438" (11.13mm)
    Shaft Detail:
    Clevis
    Datasheet:
    HONG KONG HAOCHIP TRADING CO., LIMITED195206-225.pdf

    1. How to order 195206-225 on HONG KONG HAOCHIP TRADING CO., LIMITED?

    Currently, HONG KONG HAOCHIP TRADING CO., LIMITED only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does HONG KONG HAOCHIP TRADING CO., LIMITED guarantee that 195206-225 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the 195206-225. All suppliers must pass our qualification reviews before they can publish their products including 195206-225 on HONG KONG HAOCHIP TRADING CO., LIMITED; we pay more attention to the channels and quality of 195206-225 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the 195206-225 price and inventory displayed accurate?

    The price and inventory of 195206-225 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of 195206-225?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 195206-225 we delivered, we will accept the replacement or return of the 195206-225 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of 195206-225.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as 195206-225 pin diagram, 195206-225 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

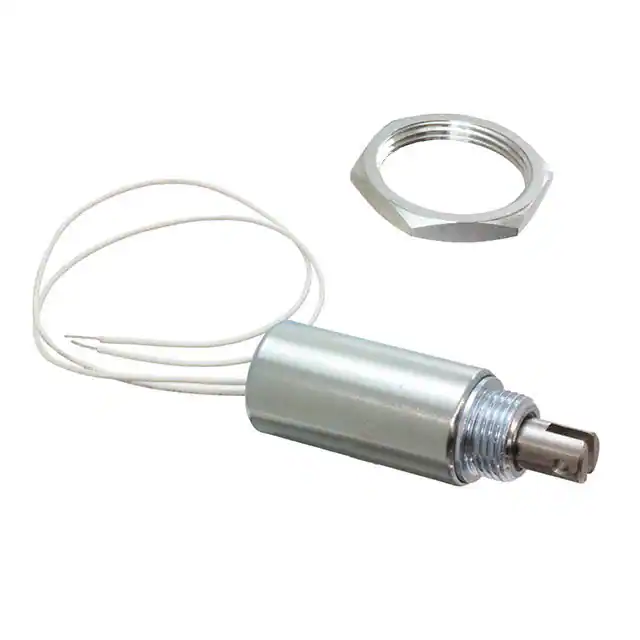

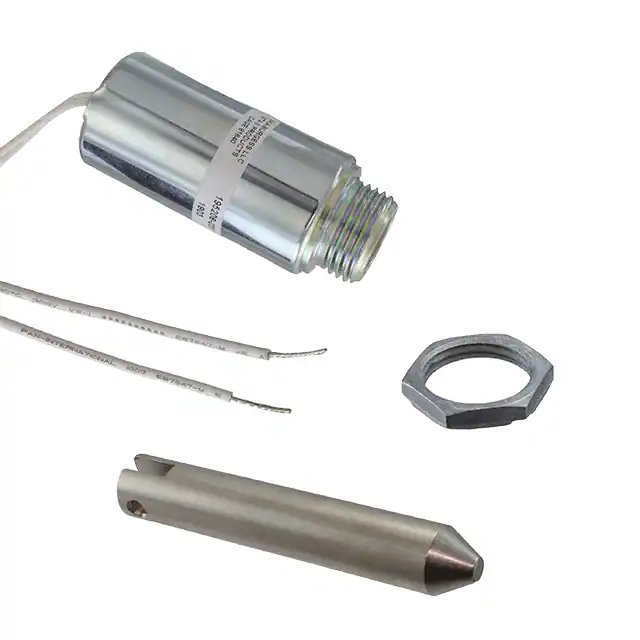

    Image 195206-225 195206-231 195206-228 195206-224 195206-131
    Part Number 195206-225 195206-231 195206-228 195206-224 195206-131
    Manufacturer Ledex Dormeyer Saia, a Division of Johnson Electric Ledex Dormeyer Saia, a Division of Johnson Electric Ledex Dormeyer Saia, a Division of Johnson Electric Ledex Dormeyer Saia, a Division of Johnson Electric Ledex Dormeyer Saia, a Division of Johnson Electric
    Series STA STA STA STA STA
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Technology Electromechanical Electromechanical Electromechanical Electromechanical Electromechanical
    Type Closed Frame (Pull), Tubular Closed Frame (Pull), Tubular Closed Frame (Pull), Tubular Closed Frame (Pull), Tubular Closed Frame (Pull), Tubular
    Duty Cycle Intermittent Continuous - Continuous Continuous
    Voltage - Rated 12VDC 24VDC - 5.2VDC 28VDC
    Stroke Length 0.750" (19.05mm) 0.625" (15.88mm) - 0.700" (17.78mm) 0.500" (12.70mm)
    Power (Watts) 29.4 W 7.4 W - 10 W 10 W
    DC Resistance (DCR) 4.9Ohm 77.4Ohm 19.2Ohm 2.69Ohm 77.4Ohm
    Bushing Thread 3/4-16 UNF 3/4-16 UNF 3/4-16 UNF 3/4-16 UNF 3/4-16 UNF
    Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
    Termination Style Wire Leads Wire Leads Wire Leads Wire Leads Wire Leads
    Size / Dimension 1.000" Dia x 2.000" L (25.40mm x 50.80mm) 1.000" Dia x 2.000" L (25.40mm x 50.80mm) 1.000" Dia x 2.000" L (25.40mm x 50.80mm) 1.020" Dia x 2.050" L (25.91mm x 52.07mm) 1.020" Dia x 2.050" L (25.91mm x 52.07mm)
    Diameter - Shaft 0.438" (11.13mm) 0.438" (11.13mm) 0.438" (11.13mm) 0.431" (10.95mm) 0.431" (10.95mm)
    Shaft Detail Clevis Clevis Clevis Clevis Clevis
