Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TB1-2H-DC-6SWITCH TOGGLE DPDT 20A 125V |
462 | 1.65 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | - | - | - |
|
TB1-2A-DC-6SWITCH TOGGLE DPST 20A 125V |
328 | 1.65 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | - | - | - |
|
34CMSP15B3M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,164 | 1.04 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013B2B1W01SWITCH TOGGLE SPDT 6A 125V |
3,963 | 1.64 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
BT1D-2M4-ZSWITCH TOGGLE SPDT 50MA 20V |
803 | 1.07 |
|
Datasheet |
BT | Bulk | Obsolete | Through Hole | SPDT | On-On | 50mA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
TB1-2G-DC-1SWITCH TOGGLE DPDT 20A 125V |
2,105 | 1.66 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | - | - | - |
|
7101P3Y1ZBESWITCH TOGGLE SPDT 0.4VA 20V |
374 | 1.41 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB2-2D-DC-4SWITCH TOGGLE DPDT 20A 12V |
397 | 1.66 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | DPDT | On-On | 20A (DC) | - | 12 V | Standard Round | 17.70mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | 0°C ~ 55°C |
|
|
A12KB1-AASWITCH TOGGLE SPDT 0.4VA 28V |
2,325 | 1.30 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
|
B22AV-GCSWITCH TOGGLE DPDT 0.4VA 28V |
2,734 | 1.30 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Cap | -30°C ~ 85°C |
|
|
B23JVSWITCH TOGGLE DPDT 0.4VA 28V |
1,696 | 1.31 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB1-2F-DC-6SWITCH TOGGLE DPDT 20A 125V |
581 | 1.68 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | - | - | - |
|
TD2-1D-DC-3-HSWITCH TOGGLE SPDT 50A 12V |
403 | 1.68 |
|
Datasheet |
TD2 | Bulk | Active | Panel Mount | SPDT | On-On | 50A (DC) | - | 12 V | Flatted | 28.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 85°C |
|

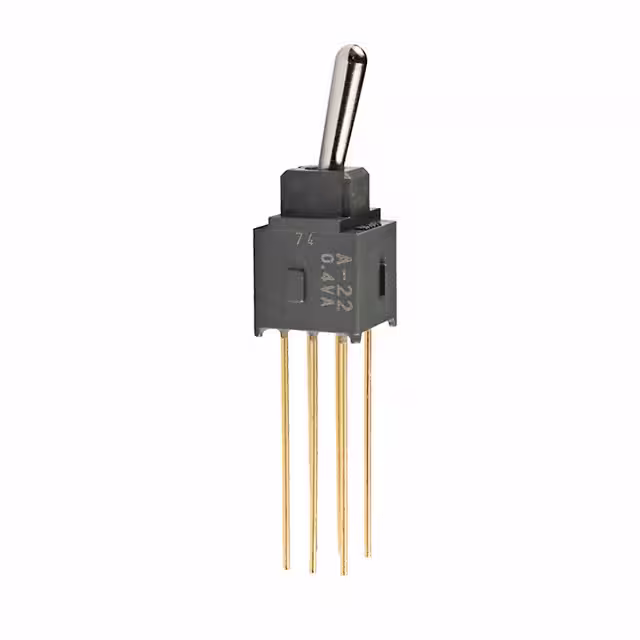

A22AWSWITCH TOGGLE DPDT 0.4VA 28V |
3,281 | 1.31 |
|
Datasheet |
A | Tube | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A18JV1-JASWITCH TOGGLE SPDT 0.4VA 28V |
2,316 | 1.32 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
M2023B2B1W03SWITCH TOGGLE DPDT 6A 125V |
4,737 | 1.73 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

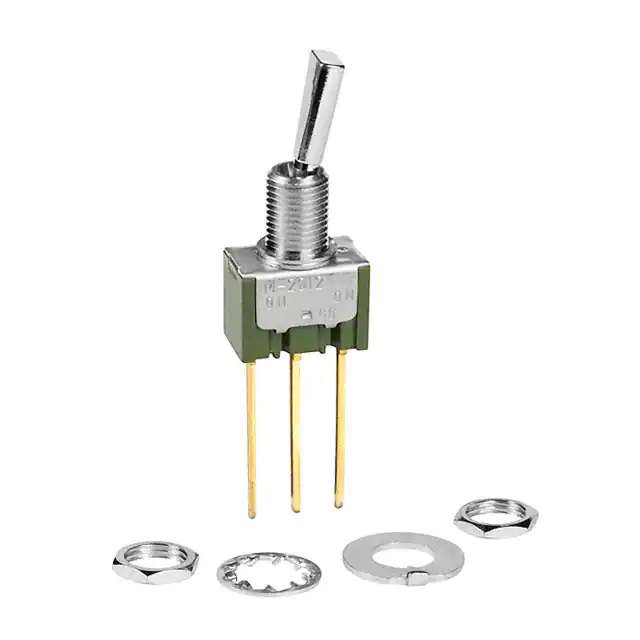

M2012ES1G06SWITCH TOGGLE SPDT 0.4VA 28V |
178 | 1.36 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.40mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

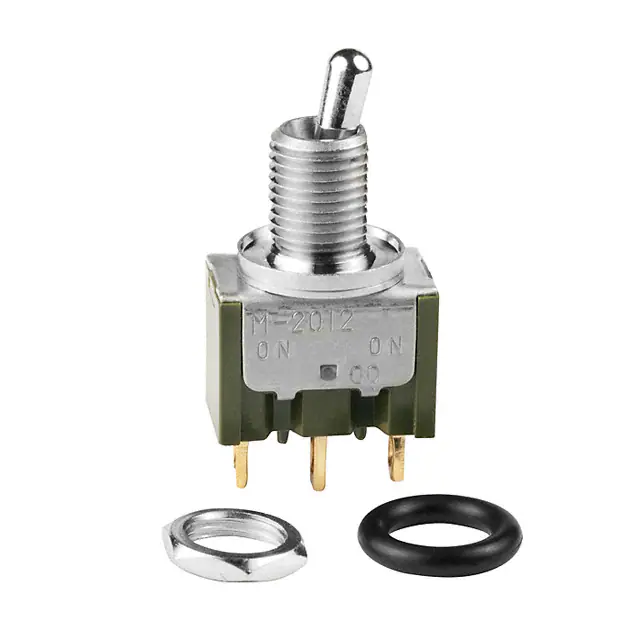

M2012S2D3G01SWITCH TOGGLE SPDT 0.4VA 28V |
2,687 | 1.38 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TD2-1F-DC-3-HSWITCH TOGGLE SPDT 50A 12V |
2,661 | 1.70 |
|
Datasheet |
TD2 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 50A (DC) | - | 12 V | Flatted | 28.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 85°C |
|
M2019BB1W01SWITCH TOGGLE SPDT 6A 125V |
318 | 1.38 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
