Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3547022N000TOGGLE SWITCH 3500 IP67 SEALED |
1,211 | - |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | Mom-Off-Mom | 15A (DC) | - | 28 V | Standard Round | 30.00mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
12146AGK2VSWITCH TOGGLE DPDT 4A 125V |
4,967 | 15.87 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|
|
1TW1-5SWITCH TOGGLE SPDT 5A 125V |
4,203 | 23.89 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 6.60mm Dia | 1/4-40 | Environment Sealed | - | -65°C ~ 71°C |
|
|
3546001CG02A6SWITCH TOGGLE DPDT 20A 28V |
1,114 | 15.88 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC), 15A (DC) | - | 28 V | Locking Lever | 20.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Red Anodized | -40°C ~ 85°C |
|
|
3531001G002TOGGLE SWITCH 3500 IP67 SEALED |
3,963 | - |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | On-Off | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|

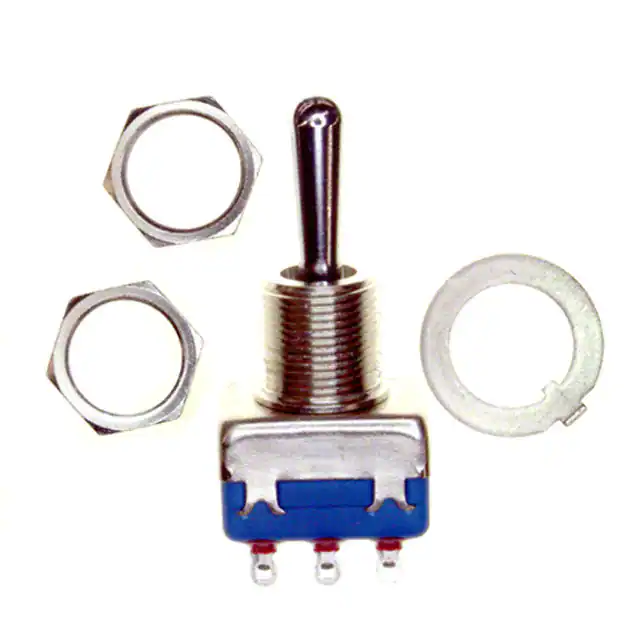

12158ASWITCH TOGGLE 3PDT 4A 125V |
3,471 | 16.43 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
3531021G000TOGGLE SWITCH 3500 IP67 SEALED |
4,470 | - |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | On-Off | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
3537033N002TOGGLE SWITCH 3500 IP67 SEALED |
2,934 | - |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (DC) | - | 28 V | Flatted | 24.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
12149A3VSWITCH TOGGLE DPDT 4A 125V |
4,263 | 15.95 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 20.60mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
11156ATOGGLE SWITCH 11000 HIGH SPEC |
3,512 | - |
|
- |
11000 | Bulk | Active | Panel Mount | 3PDT | On-On | 4A (DC) | - | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
14TL1-12SWITCH TOGGLE 4PDT 15A 125V |
3,773 | 15.56 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL11-50SWITCH TOGGLE DPDT 11A 125V |
3,328 | 15.56 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | On-On-Mom | 11A (AC), 18A (DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
5246WWCDGK0382VX442TOGGLE SWITCH 5000 MINIATURE |
4,321 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
3531001BD10TOGGLE SWITCH 3500 IP67 SEALED |
2,623 | - |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | On-Off | 15A (DC) | - | 28 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
12148AGKTOGGLE SWITCH 12000 HIGH SPEC |
3,151 | - |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12145AGKTOGGLE SWITCH 12000 HIGH SPEC |
2,886 | - |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12145AGX408TOGGLE SWITCH 12000 HIGH SPEC |
3,977 | - |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12144AKX545TOGGLE SWITCH 12000 HIGH SPEC |
2,228 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12TW401-7SWITCH TOGGLE DPDT 5A 125V |
2,208 | - |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC) | 125 V | - | Flatted | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12146AG2VTOGGLE SWITCH 12000 HIGH SPEC |
3,358 | - |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
