Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A11AP-GASWITCH TOGGLE SPST 0.4VA 28V |
2,648 | - |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.01mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | - | -30°C ~ 85°C |
|
|
B12EBSWITCH TOGGLE SPDT 0.4VA 28V |
3,691 | 1.09 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8J1022-ZSWITCH TOGGLE SPDT 6A 125V |
151 | 0.79 |
|
Datasheet |
8J | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
TB2-2H-DC-1SWITCH TOGGLE DPDT 20A 12V |
467 | 1.36 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 20A (DC) | - | 12 V | Standard Round | 18.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | 0°C ~ 55°C |
|
|
34ASP12B8M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,513 | 1.11 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
B13AH-GASWITCH TOGGLE SPDT 0.4VA 28V |
3,490 | 1.08 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
2-1825143-6SWITCH TOGGLE SP3T 0.4VA 20V |
3,911 | 1.55 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
TA2-1A-DC-6SWITCH TOGGLE SPST 20A 125V |
492 | 1.37 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | - | - | -20°C ~ 85°C |
|

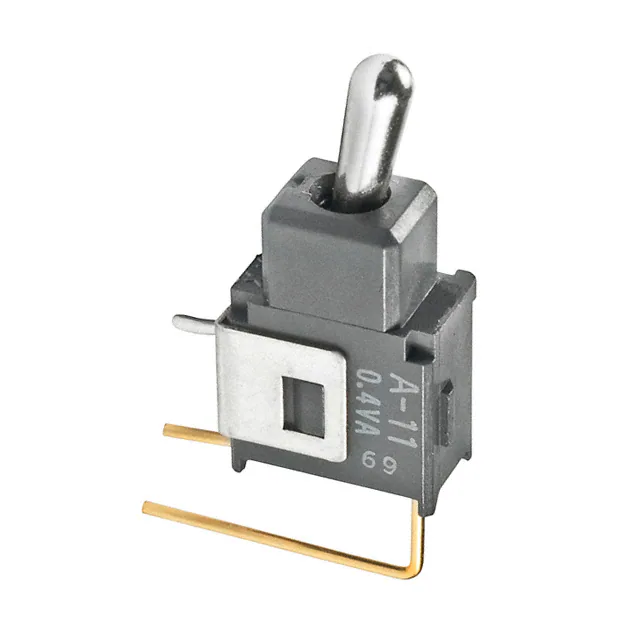

A11JV1SWITCH TOGGLE SPST 0.4VA 28V |
4,088 | 1.10 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2021SS1W01SWITCH TOGGLE DPST 6A 125V |
3,705 | 1.15 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A11AVSWITCH TOGGLE SPST 0.4VA 28V |
1,264 | 1.10 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A11AV1SWITCH TOGGLE SPST 0.4VA 28V |
2,204 | 1.10 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2021SS1W03SWITCH TOGGLE DPST 6A 125V |
2,230 | 1.15 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP53B4V2QTSWITCH TOGGLE SPDT 5A 125V |
3,536 | 1.12 |
|
Datasheet |
34A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
M2019SS1W03SWITCH TOGGLE SPDT 6A 125V |
1,255 | 1.15 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2019SS1W01SWITCH TOGGLE SPDT 6A 125V |
268 | 1.15 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2A2W30/CULSWITCH TOGGLE DPDT 6A 125V |
1,992 | 1.37 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP22B3M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,352 | 1.12 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
B12EVSWITCH TOGGLE SPDT 0.4VA 28V |
4,785 | 1.09 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825142-5SWITCH TOGGLE SPDT 0.4VA 20V |
3,871 | 0.85 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Process Sealed | -30°C ~ 85°C |
