Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1NT20-7NSWITCH TOGGLE SPDT 10A 125V |
2,908 | - |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Black Actuator | - |
|
|
1NT20-7ESWITCH TOGGLE SPDT 10A 125V |
4,397 | - |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Black Actuator | - |
|
|
5249MADBTOGGLE SWITCH 5000 MINIATURE |
4,261 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
1520237-1SWITCH TOGGLE DPST 16A 125V |
3,117 | 4.13 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 17.30mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
IM251-63SWITCH TOGGLE 4PDT 15A 125V |
1,799 | 6.51 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

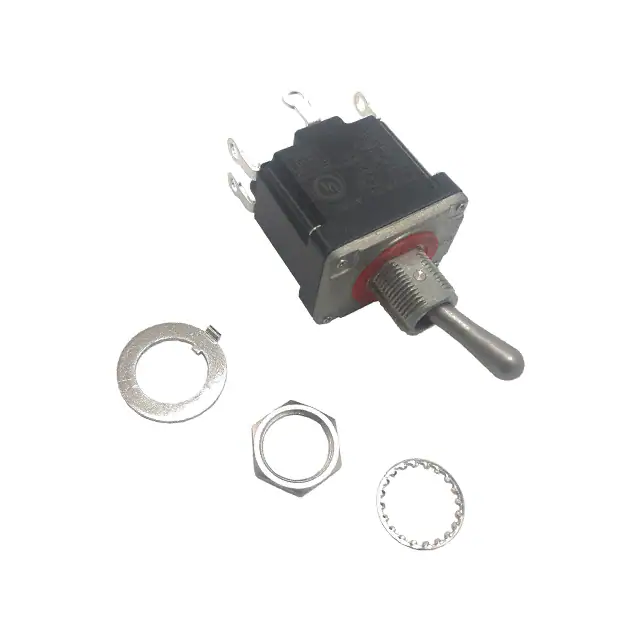

PT201SZQSWITCH TOGGLE DPDT 15A 277V |
2,648 | 6.48 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | On-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
5646ADGB2X408TOGGLE SWITCH 5000 MINIATURE |
2,840 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
TT41NGPC9T1/4SWITCH TOGGLE 4PDT 3A 125V |
1,259 | 7.25 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 10.69mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
A232K12KAQSWITCH TOGGLE SP3T 6A 125V |
4,776 | 7.33 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A233P41DZQSWITCH TOGGLE SP3T 6A 125V |
3,104 | 6.10 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A423P41YZQSWITCH TOGGLE 4PDT 6A 125V |
4,193 | 7.33 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A431S1YZQSWITCH TOGGLE 4PDT 6A 125V |
2,652 | 6.30 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
IL256-52/HDW BULKSWITCH TOGGLE 4PDT 15A 125V |
3,680 | 7.26 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Standard Round | 10.31mm | Non-Illuminated | - | - | PC Pin | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
IL251-NBL8SWITCH TOGGLE 4PDT 15A 125V |
1,446 | 6.52 |
|
- |
I | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5266MABSWITCH TOGGLE 4PDT 6A 125V |
3,189 | 6.77 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5662AB9SWITCH TOGGLE 4PDT 6A 125V |
2,608 | 6.80 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5667AB9SWITCH TOGGLE 4PDT 6A 125V |
2,475 | 6.80 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
STJ2E1-R8SWITCH TOGGLE DPDT 16A 24V |
3,550 | 9.71 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | On-Off-On | 16A (DC) | - | 24 V | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STJ251-R8SWITCH TOGGLE DPDT 15A 125V |
1,325 | 9.71 |
|
- |
ST | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
631H/2T2VTOGGLE SWITCH 600H HIGH POWER |
2,977 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
