Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

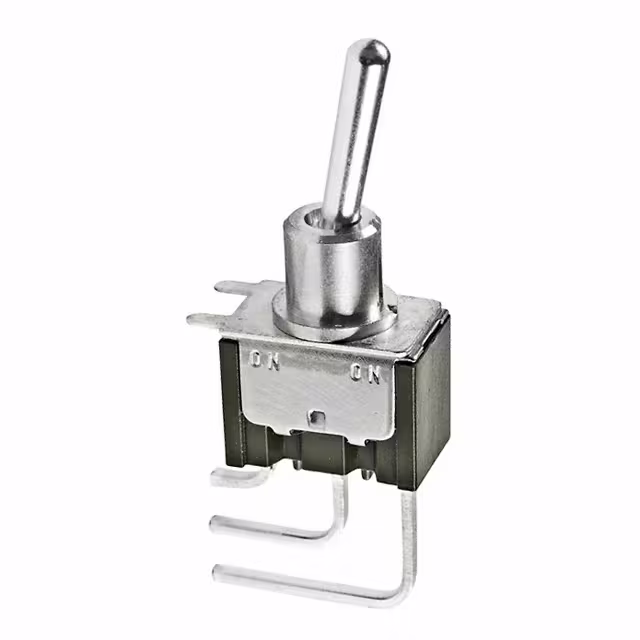

M2012SA2W40SWITCH TOGGLE SPDT 6A 125V |
2,595 | 1.09 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

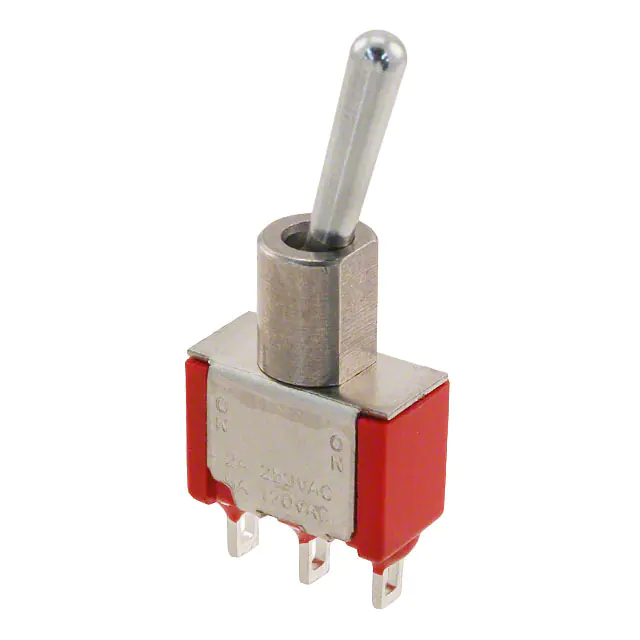

7101SD8ZQESWITCH TOGGLE SPDT 5A 120V |
168 | 2.25 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3920BAAAASWITCH TOGGLE SPDT 20A 250V |
184 | 1.08 |
|
Datasheet |
3900 | - | Active | Panel Mount | SPDT | On-Off-On | 20A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
34ASP11B4V3RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,666 | 1.20 |
|
Datasheet |
34A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
TA2-1G-DC-1-OSWITCH TOGGLE SPDT 20A 125V |
409 | 1.09 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP55 - Dust Protected, Water Resistant | - | -20°C ~ 85°C |
|
4-1825137-8SWITCH TOGGLE SPDT 5A 120V |
1,545 | 1.17 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flatted | 12.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2011S2A1W01SWITCH TOGGLE SPST 6A 125V |
3,729 | 0.91 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T7B13M1QEHSWITCH TOGGLE DPDT 5A 120V |
413 | 1.04 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825138-6SWITCH TOGGLE DPDT 0.4VA 20V |
1,009 | 1.24 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals, Splashproof Bushing Seal | -30°C ~ 85°C |
|
|
5-1825136-4SWITCH TOGGLE SPDT 5A 120V |
4,858 | 1.52 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
3-1825138-7SWITCH TOGGLE DPDT 5A 120V |
4,265 | 0.67 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1F-DC-6-OSWITCH TOGGLE SPDT 20A 125V |
482 | 1.10 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | IP55 - Dust Protected, Water Resistant | - | -20°C ~ 85°C |
|
M2015SS1W03SWITCH TOGGLE SPDT 6A 125V |
1,749 | 1.13 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

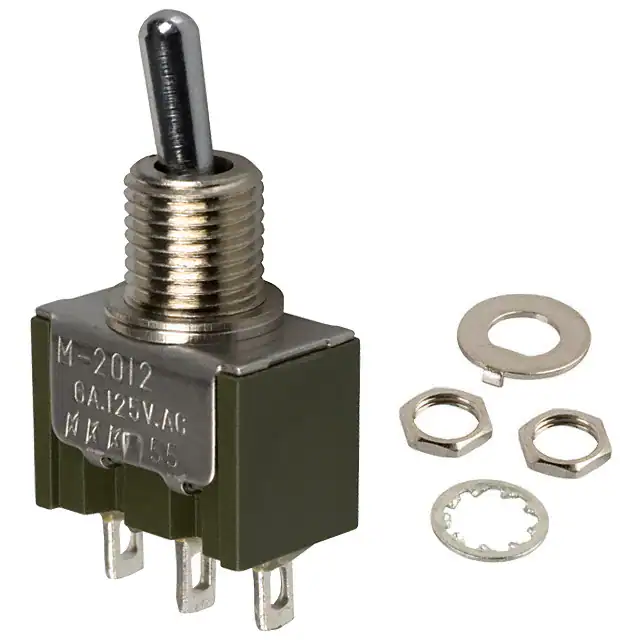

M2012S2A1W01SWITCH TOGGLE SPDT 6A 125V |
185 | 0.92 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825136-6SWITCH TOGGLE SPDT 0.4VA 20V |
2,950 | 1.26 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 12.29mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1G-DC-6-OSWITCH TOGGLE SPDT 20A 125V |
390 | 1.12 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 20A (AC), 21A (DC) | 125 V | 14 V | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | 15/32-32 | IP55 - Dust Protected, Water Resistant | - | -20°C ~ 85°C |
|
|
34ASP55B3W3RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,507 | 1.27 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 23.10mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|

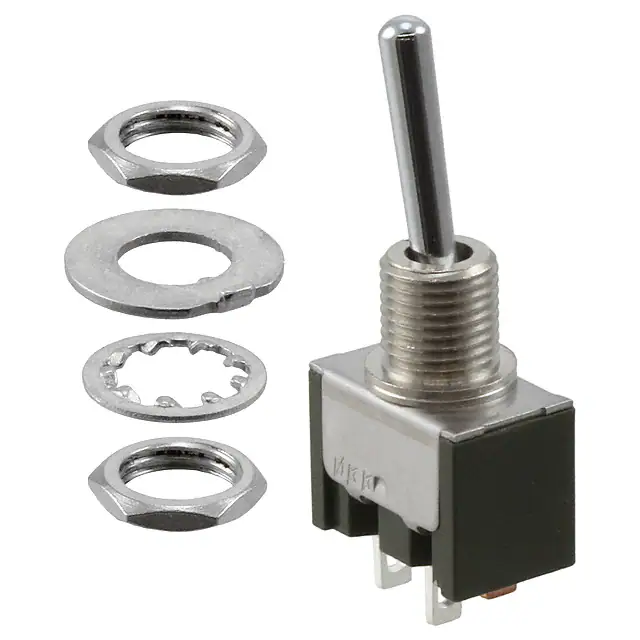

M2011SA1W01SWITCH TOGGLE SPST 6A 125V |
151 | 0.93 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

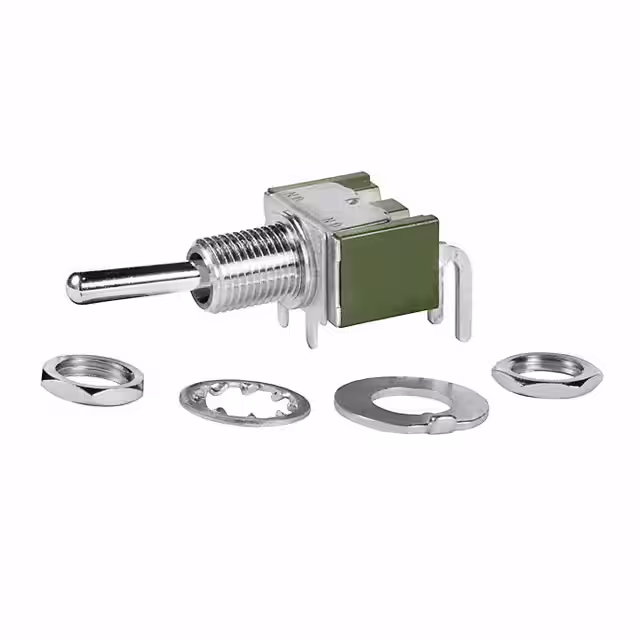

M2012SS1W30SWITCH TOGGLE SPDT 6A 125V |
4,682 | 1.16 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825138-1SWITCH TOGGLE DPDT 0.4VA 20V |
4,891 | 1.10 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.51mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
