Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STL1E1-58SWITCH TOGGLE SPDT 16A 24V |
3,624 | 6.43 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STD1E1-58SWITCH TOGGLE SPDT 16A 24V |
1,878 | 6.43 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-On | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STL1E1-78SWITCH TOGGLE SPDT 16A 24V |
1,520 | 6.43 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 16A (DC) | - | 24 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STD1E1-78SWITCH TOGGLE SPDT 16A 24V |
4,965 | 6.43 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-On | 16A (DC) | - | 24 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STL151-58SWITCH TOGGLE SPDT 15A 125V |
3,264 | 6.43 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
6GM5L-NRD3SWITCH TOGGLE DPDT 15A 125V |
4,427 | 4.58 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
1520187-5SWITCH TOGGLE DPST 16A 125V |
3,345 | 4.39 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Screw Terminal | - | - | - | - | 0°C ~ 55°C |
|

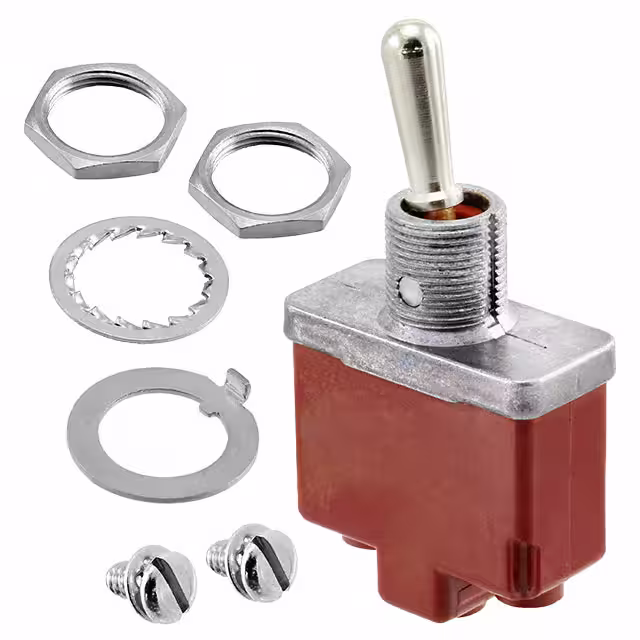

CT33001N000SWITCH TOGGLE SPST 10A 125V |
2,445 | 4.68 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPST | Off-Mom | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
|
7403SPYCBESWITCH TOGGLE 4PDT 0.4VA 20V |
1,188 | 4.71 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN42LL4G01BUSHING MOUNT MINIATURE TOGGLE |
1,608 | - |
|
- |
M | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | - |
|
|
5637AGKTOGGLE SWITCH 5000 MINIATURE |
3,477 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5647AKB4NTOGGLE SWITCH 5000 MINIATURE |
3,561 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
7401P4DZQESWITCH TOGGLE 4PDT 5A 120V |
2,373 | 3.77 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5664MTH1RABSWITCH TOGGLE DP3T 6A 125V |
4,185 | 4.92 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
5246WCDB16X404SWITCH TOGGLE DPDT 0.4VA 20V |
4,805 | 4.70 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
MN45BB1W01BUSHING MOUNT MINIATURE TOGGLE |
2,472 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7411SYCQESWITCH TOGGLE DP3T 5A 120V |
4,946 | 4.91 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7305P3YABESWITCH TOGGLE 3PDT 0.4VA 20V |
4,605 | 3.82 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | 3PDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5246CDGB12SWITCH TOGGLE DPDT 0.4VA 20V |
4,312 | 4.69 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | - | - | Matte Black Finish | -40°C ~ 85°C |
|
|
648H/2TTOGGLE SWITCH 600H HIGH POWER |
1,724 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
