Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
61NT1-6SWITCH TOGGLE SPST-NO 10A 125V |
1,478 | - |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
12NT1-1SWITCH TOGGLE DPDT 15A 125V |
1,647 | - |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -65°C ~ 71°C |
|
|
2M1H-SP1-TK-BK-M2QESWITCH TOGGLE SPDT 5A 125V |
2,801 | 4.28 |
|
- |
2M | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.01mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1H-SP5-TK-BK-M2QESWITCH TOGGLE SPDT 5A 125V |
4,065 | 4.51 |
|
- |
2M | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.01mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1H-SP4-TK-BK-M2QESWITCH TOGGLE DPDT 5A 125V |
2,921 | 4.51 |
|
- |
2M | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.01mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1H-DP1-TK-BK-M1QESWITCH TOGGLE DPDT 5A 125V |
1,412 | 4.52 |
|
- |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.01mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MNL13TCFW02/MLED TIPPED TOGGLE |
1,299 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5636AGKULTOGGLE SWITCH 5000 MINIATURE |
1,258 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
2GM54-77SWITCH TOGGLE DPDT 15A 125V |
1,395 | 4.38 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | - | - | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GL6A-67SWITCH TOGGLE DPDT 6A 125V |
2,202 | 4.39 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | - | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
M2022ES1W01/U-WLSWITCH TOGGLE DPDT 6A 125V |
1,825 | 5.27 |
|
Datasheet |
M | Box | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Wire Leads | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|

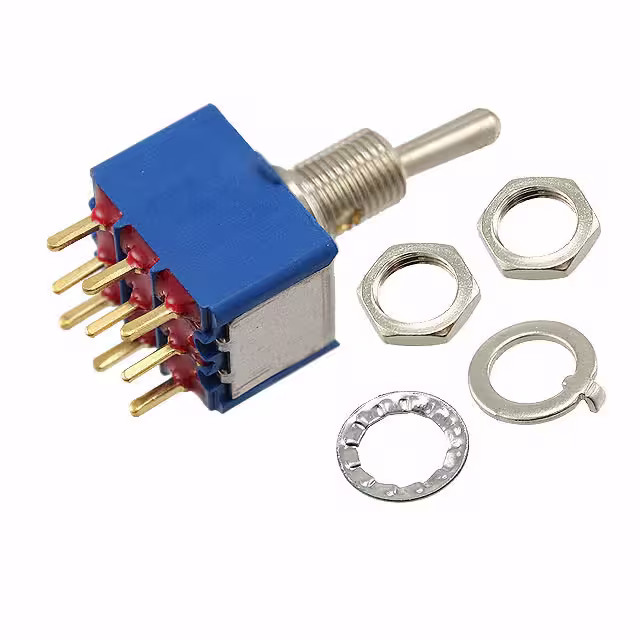

5256CDBSWITCH TOGGLE 3PDT 0.4VA 20V |
1,518 | 4.47 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
MTA306EPCSWITCH TOGGLE 3PDT 6A 125V |
1,114 | 4.79 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
SW246A7SWITCH TOGGLE DPDT 5A 125V |
4,020 | 4.47 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5259CDBSWITCH TOGGLE 3PDT 0.4VA 20V |
3,756 | 4.47 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
STD151-73SWITCH TOGGLE SPDT 15A 125V |
1,722 | 6.17 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STJ1E1-53/HDW ASSMSWITCH TOGGLE SPDT 16A 24V |
4,343 | 6.17 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-Off-On | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STL1E1-73SWITCH TOGGLE SPDT 16A 24V |
3,549 | 6.17 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 16A (DC) | - | 24 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STL151-73SWITCH TOGGLE SPDT 15A 125V |
3,715 | 6.17 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STK1E1-53/HDW ASSMSWITCH TOGGLE SPDT 16A 24V |
2,928 | 6.17 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 16A (DC) | - | 24 V | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
