Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTA306HSWITCH TOGGLE 3PDT 6A 125V |
2,429 | - |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
2FC53-E8/TABSSWITCH TOGGLE SPDT 15A 125V |
4,471 | 3.01 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 50.80mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
6FC54-63SWITCH TOGGLE SPDT 15A 125V |
2,068 | 3.01 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 14.28mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
5236AKBTOGGLE SWITCH 5000 MINIATURE |
3,926 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5636AB1VSWITCH TOGGLE SPDT 6A 125V |
4,426 | 3.03 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 14.85mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
D22018LVSWITCH TOGGLE SPDT 0.4VA 48V |
1,355 | 2.61 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
D22019LVSWITCH TOGGLE SPDT 0.4VA 48V |
4,495 | 2.61 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
7301SDCQESWITCH TOGGLE 3PDT 5A 120V |
1,413 | 3.02 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201P3H3WQESWITCH TOGGLE DPDT 5A 120V |
4,580 | 2.89 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 10.92mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5638CDGB4NSWITCH TOGGLE SPDT 0.4VA 20V |
1,659 | 3.03 |
|
- |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | - | 10.50mm | - | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
ST4DP8AT1C2Switches |
1,558 | - |
|
Datasheet |
ST4 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 16A (AC) | 125 V | - | Standard Round | 16.99mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|
T208SHAVQESWITCH TOGGLE DPDT 2A 120V |
1,814 | 4.00 |
|
Datasheet |
T | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | On-Mom | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
635HKTOGGLE SWITCH 600H HIGH POWER |
3,394 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
637HKTOGGLE SWITCH 600H HIGH POWER |
2,531 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3001DSWITCH TOGGLE SPDT 15A 125V |
1,474 | 3.33 |
|
Datasheet |
3000 | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 14.22mm | Non-Illuminated | - | - | Wire Leads | - | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 65°C |
|
|
3002DSWITCH TOGGLE SPDT 15A 125V |
2,775 | 3.33 |
|
Datasheet |
3000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 14.22mm | Non-Illuminated | - | - | Wire Leads | - | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 65°C |
|
|
2GM61-B8SWITCH TOGGLE DPDT 6A 125V |
4,454 | 3.03 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC) | 125 V | - | Standard Round | 31.75mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
1NT1-8-CSWITCH TOGGLE SPST 15A 125V |
4,944 | - |
|
- |
NT | Bulk | Obsolete | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
7201K2AGESWITCH TOGGLE DPDT 5A 120V |
2,359 | 3.01 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

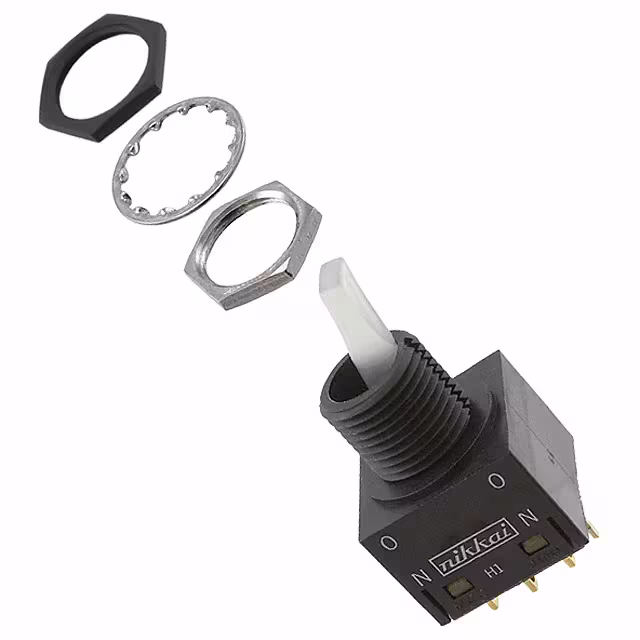

TL22SFAG015FSWITCH TOGGLE DPDT 0.4VA 28V |
3,963 | 3.30 |
|
Datasheet |
TL | Tray | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.00mm | Illuminated | LED, Green | 2.3 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | -10°C ~ 55°C |
