Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7203K12CQESWITCH TOGGLE DPDT 5A 120V |
3,881 | 2.90 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7303K2ZBESWITCH TOGGLE 3PDT 0.4VA 20V |
3,563 | 3.25 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
LT-1514-131-012SWITCH TOGGLE SPST 15A 125V |
1,172 | 2.84 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Green/Red | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-130-024SWITCH TOGGLE SPST 15A 125V |
2,172 | 2.84 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Green | 24 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GC5M-D-4B-BSWITCH TOGGLE SPDT 15A 125V |
2,343 | 2.90 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-110-012SWITCH TOGGLE SPST 15A 125V |
4,200 | 2.84 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Red | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-130-012SWITCH TOGGLE SPST 15A 125V |
4,971 | 2.90 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Green | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-151-024SWITCH TOGGLE SPST 15A 125V |
3,258 | 2.84 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Clear/Red | 24 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-110-024SWITCH TOGGLE SPST 15A 125V |
4,376 | 2.84 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Red | 24 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GC5B-D-4B-BSWITCH TOGGLE SPDT 15A 125V |
3,105 | 2.90 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
SW236A7SWITCH TOGGLE SPDT 5A 125V |
1,398 | 2.92 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5247WWCDB16X445SWITCH TOGGLE DPDT 0.4VA 20V |
4,678 | 2.92 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5248WWCDB16X445SWITCH TOGGLE DPDT 0.4VA 20V |
2,195 | 2.92 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
7211P3HZBESWITCH TOGGLE SP3T 0.4VA 20V |
3,940 | 2.90 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MN12B2B1W01-AT401SSWITCH TOGGLE |
4,115 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN23SS1G03SWITCH TOGGLE |
3,755 | - |
|
- |
M | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN12B2B1W03-AT401SSWITCH TOGGLE |
1,431 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
2GL64-63SWITCH TOGGLE DPDT 6A 125V |
2,890 | 2.91 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 14.28mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

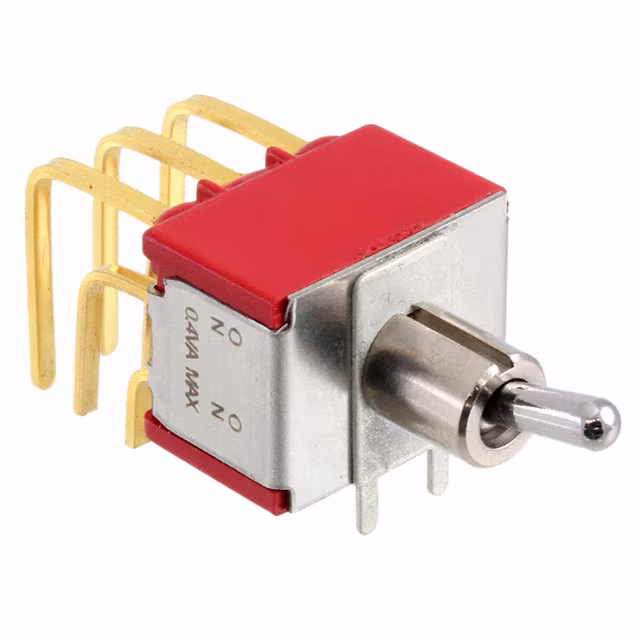

7301MD9AV2BESWITCH TOGGLE 3PDT 0.4VA 20V |
1,157 | 3.33 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B13JJHCFSWITCH TOGGLE SPDT 0.4VA 28V |
4,116 | 2.51 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
