Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6FA54-78/2 HEXSWITCH TOGGLE SPST-NO 15A 125V |
4,994 | 2.78 |
|
- |
F | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
5646ADB17TOGGLE SWITCH 5000 MINIATURE |
1,066 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5649ADB16TOGGLE SWITCH 5000 MINIATURE |
1,350 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
7201T2PCBESWITCH TOGGLE DPDT 0.4VA 20V |
2,550 | 2.78 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

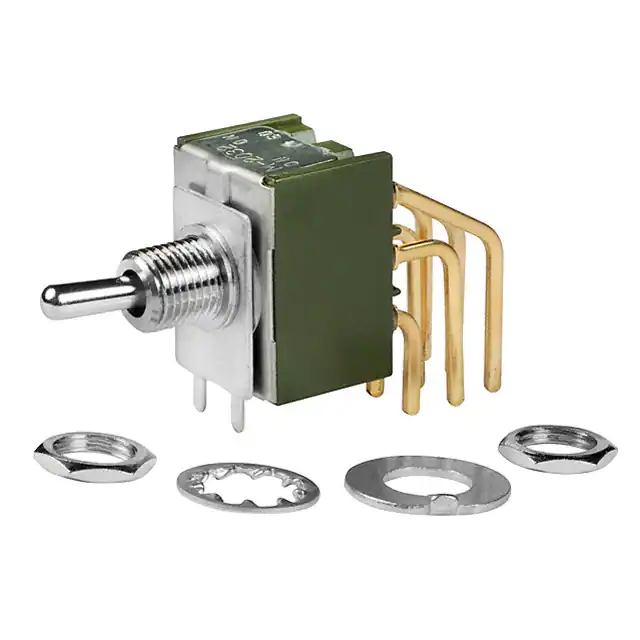

M2032S2A1G30SWITCH TOGGLE 3PDT 0.4VA 28V |
3,701 | 3.03 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN23BB1W01-AT402SBUSHING MOUNT MINIATURE TOGGLE |
1,857 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7201K9A3QESWITCH TOGGLE DPDT 5A 120V |
1,181 | 2.63 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2GM721-D-3B-B/2HEXSWITCH TOGGLE DPDT 20A 125V |
3,335 | 2.78 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7301K2ZBESWITCH TOGGLE 3PDT 0.4VA 20V |
4,135 | 3.12 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL49WW05000SWITCH TOGGLE DPDT 0.4VA 20V |
1,667 | 2.77 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6GA5B-D-4B-BSWITCH TOGGLE SPST-NO 15A 125V |
2,930 | 2.78 |
|
- |
G | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1563-111-125SWITCH TOGGLE SPDT 15A 125V |
4,651 | 2.73 |
|
- |
LT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7201K12ZGESWITCH TOGGLE DPDT 5A 120V |
1,467 | 2.91 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MM-021-BLSWITCH TOGGLE SPST-NO 20A 125V |
4,380 | 2.73 |
|
- |
215 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|
|
7203SDZQISWITCH TOGGLE DPDT 5A 120V |
4,502 | 2.72 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Potted | -30°C ~ 85°C |
|
|
7101P4D9AV2BE22SWITCH TOGGLE SPDT 0.4VA 20V |
4,369 | 2.50 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
SWW232CTA11X696TOGGLE SWITCH S PCB MOUNT |
3,342 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SWW237A11X696TOGGLE SWITCH S PCB MOUNT |
2,600 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5232WAB9TOGGLE SWITCH 5000 MINIATURE |
1,978 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
5238WAB9TOGGLE SWITCH 5000 MINIATURE |
1,088 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
