Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2FAA04-A7SWITCH TOGGLE SPST |
1,947 | 0.80 |
|
- |
F | Bulk | Active | Panel Mount | SPST | On-Off | - | - | - | Standard Round | 25.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
7203SYAV2QESWITCH TOGGLE DPDT 5A 120V |
4,435 | 1.95 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

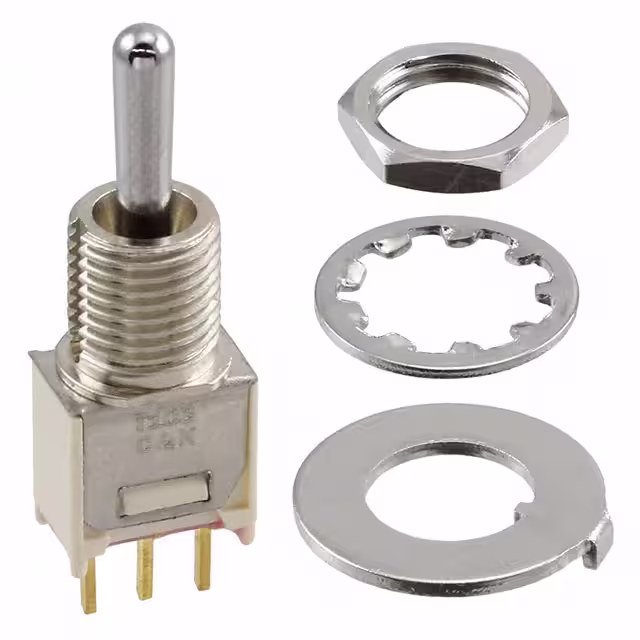

T103STDCBESWITCH TOGGLE SPDT 0.4VA 20V |
1,662 | 2.34 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.38mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7205SCWZQESWITCH TOGGLE DPDT 5A 120V |
3,333 | 2.33 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SWW232A7SWITCH TOGGLE SPDT 5A 125V |
2,363 | 2.47 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5236YCDB9X445SWITCH TOGGLE SPDT 0.4VA 20V |
4,813 | 2.47 |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
D22025BSWITCH TOGGLE DPDT 0.4VA 48V |
3,978 | 2.18 |
|
Datasheet |
D2 | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
7201P3Y3Z3QESWITCH TOGGLE DPDT 5A 120V |
4,453 | 2.44 |
|
Datasheet |
7000 | Tray | Last Time Buy | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7215SYW3BESWITCH TOGGLE SP3T 0.4VA 20V |
1,332 | 2.43 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7201P3D9V6BESWITCH TOGGLE DPDT 0.4VA 20V |
4,302 | 2.62 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S2F-AT401SSWITCH TOGGLE SPDT 15A 125V |
4,513 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
ST4SP10DT1S2SWITCH TOGGLE SPDT 20A 30V |
4,662 | - |
|
Datasheet |
ST4 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 20A (DC) | - | 30 V | Standard Round | 16.99mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|
|
7405P3Y9CKESWITCH TOGGLE 4PDT 0.4VA 20V |
4,769 | - |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 4PDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN13B2B3W01SWITCH TOGGLE |
4,862 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN13BB1W01-RA-AT402SSWITCH TOGGLE |
1,001 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

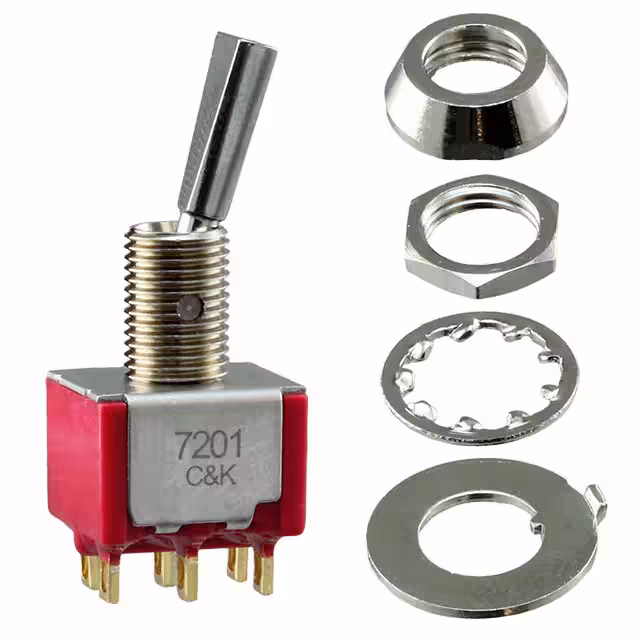

7201P3YZGESWITCH TOGGLE DPDT 5A 120V |
1,422 | 2.45 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2GK56-78SWITCH TOGGLE DPST 15A 125V |
3,106 | 2.57 |
|
- |
G | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
636NHTOGGLE SWITCH 600H HIGH POWER |
2,266 | - |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 250 V | 12 V | Flatted | 13.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
TT21NGPC9T1/4SWITCH TOGGLE DPDT 0.4VA 20V |
1,010 | 2.35 |
|
Datasheet |
TT | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.69mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
7205MPYCQESWITCH TOGGLE DPDT 5A 120V |
1,252 | 2.52 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
