Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2GK64-73SWITCH TOGGLE DPST 6A 125V |
2,164 | 2.30 |
|
- |
G | Bulk | Active | Panel Mount | DPST | On-Off | 6A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5646AB9X681TOGGLE SWITCH 5000 MINIATURE |
2,168 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5236MIWRATOGGLE SWITCH 5000 MINIATURE |
3,349 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5239MIWRCDTOGGLE SWITCH 5000 MINIATURE |
1,239 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
MN32SS4W01SWITCH TOGGLE 3PDT 6A 125V |
3,150 | - |
|
- |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | - |
|
59024-35SWITCH TOGGLE DPST 25A 12V |
3,032 | 3.26 |
|
- |
59024 | Bulk | Active | Panel Mount | DPST | On-Off | 25A (DC) | - | 12 V | Paddle | 25.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
7101P4DCQESWITCH TOGGLE SPDT 5A 120V |
4,621 | 2.26 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET21SD1ABESWITCH TOGGLE DPDT 0.4VA 20V |
4,710 | 1.99 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2GL57-73SWITCH TOGGLE DPDT 15A 125V |
1,455 | 2.35 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | - | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2FB52-73SWITCH TOGGLE 15A 125V |
4,147 | 2.35 |
|
- |
F | Bulk | Active | Panel Mount | - | - | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2FC51-73SWITCH TOGGLE SPDT 15A 125V |
3,371 | 2.35 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2FC52-73SWITCH TOGGLE 15A 125V |
3,413 | 2.31 |
|
- |
F | Bulk | Active | Panel Mount | - | - | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
5237YADBTOGGLE SWITCH 5000 MINIATURE |
1,952 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
D22012LHSWITCH TOGGLE SPDT 0.4VA 48V |
2,524 | 2.04 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
D22028PSWITCH TOGGLE DPDT 0.4VA 48V |
1,763 | 2.04 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
|
D22029PSWITCH TOGGLE DPDT 0.4VA 48V |
4,242 | 2.04 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
|
7211T1ZBESWITCH TOGGLE SP3T 0.4VA 20V |
2,921 | 2.35 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MTG226PSWITCH TOGGLE DPDT 6A 125V |
4,880 | - |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 17.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

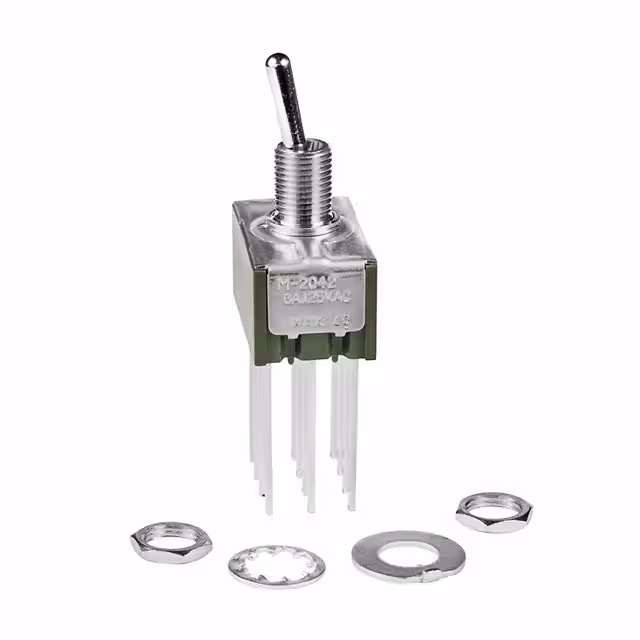

M2042SS1W06SWITCH TOGGLE 4PDT 6A 125V |
2,639 | 2.57 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7107L42DCBE22SWITCH TOGGLE SPDT 0.4VA 20V |
1,553 | 1.93 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 21.29mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
