Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

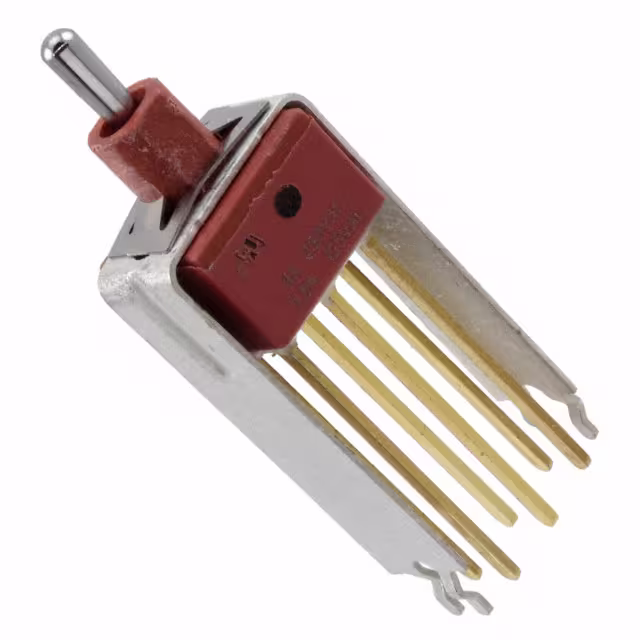

E203MD9V91GESWITCH TOGGLE DPDT 7.5A 125V |
4,796 | 2.88 |
|
Datasheet |
E | Bulk | Active | Through Hole | DPDT | On-Off-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5239YADBTOGGLE SWITCH 5000 MINIATURE |
2,204 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
2M1-3P2-T2-B1-M5-2QESWITCH TOGGLE 3PDT 5A 125V |
3,632 | 2.26 |
|
- |
2M | Bulk | Active | Panel Mount | 3PDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5237YADB4NTOGGLE SWITCH 5000 MINIATURE |
2,548 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
2GA51-B8SWITCH TOGGLE SPST 15A 125V |
4,845 | 2.31 |
|
- |
G | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 31.75mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
CA105-78SWITCH TOGGLE SPST 10A 125V |
3,580 | 2.31 |
|
- |
C | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7201P3Y9ABESWITCH TOGGLE DPDT 0.4VA 20V |
2,365 | 2.14 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7208SYCQESWITCH TOGGLE DPDT 5A 120V |
4,086 | 2.09 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2FC44-78SWITCH TOGGLE |
4,335 | 2.32 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7103P4DAV2BE22SWITCH TOGGLE SPDT 0.4VA 20V |
4,416 | 2.60 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
|
7205SYV3QESWITCH TOGGLE DPDT 5A 120V |
4,079 | 1.86 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL36WW10000TOGGLE SWITCH SMT TL PCB MOUNT |
2,144 | - |
|
- |
TL | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AT-11233SWITCH TOGGLE |
1,487 | - |
|
Datasheet |
AT | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7105P3D9V3GESWITCH TOGGLE SPDT 5A 120V |
4,001 | 2.28 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TT13E2TSWITCH TOGGLE SPDT 3A 125V |
2,543 | - |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | SPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 7.52mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.83mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201K2Z3BESWITCH TOGGLE DPDT 0.4VA 20V |
3,716 | 2.32 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2013BB1W01-AT402SSWITCH TOGGLE SPDT 6A 125V |
1,949 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN12BB1G01-AT402SBUSHING MOUNT MINIATURE TOGGLE |
1,600 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN18SD3G01-BCBUSHING MOUNT MINIATURE TOGGLE |
1,153 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | - |
|
|
2FC64-62SWITCH TOGGLE SPDT 6A 125V |
3,967 | 2.32 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC) | 125 V | - | - | - | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
