Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D22018HSWITCH TOGGLE SPDT 0.4VA 48V |
2,688 | 6.42 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
M2024LL3W03SWITCH TOGGLE SP3T 6A 125V |
1,595 | 7.97 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
TL36WW00050SWITCH TOGGLE SPDT 0.4VA 20V |
2,914 | 7.50 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5236WWAB2X445SWITCH TOGGLE SPDT 6A 125V |
4,785 | 7.14 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 19.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5236WWAB16X445SWITCH TOGGLE SPDT 6A 125V |
2,184 | 7.50 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 8.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

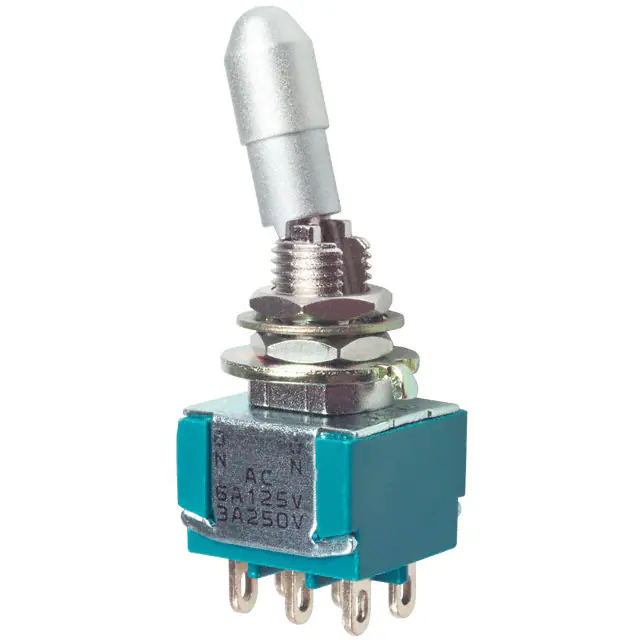

1571927-5SWITCH TOGGLE DPDT 6A 125V |
3,566 | - |
|
- |
MTL Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Locking Lever | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
MTG106HSWITCH TOGGLE SPDT 6A 125V |
2,276 | - |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

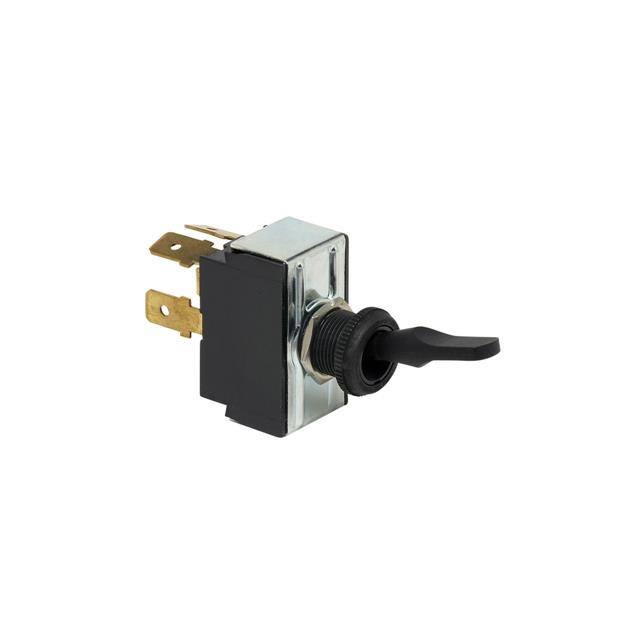

59024-110SWITCH TOGGLE DPST 25A 12V |
3,684 | 9.58 |
|
- |
59024 | Bulk | Active | Panel Mount | DPST | On-Off | 25A (DC) | - | 12 V | Paddle | 25.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
7101P1DZQESWITCH TOGGLE SPDT 5A 120V |
2,594 | 9.06 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 23.11mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T105SHCBESWITCH TOGGLE SPDT 0.4VA 20V |
4,918 | 5.91 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
DC605-BB-BSWITCH TOGGLE SPDT 6A 125V |
3,808 | 7.41 |
|
- |
D | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DC105-PB-BSWITCH TOGGLE SPDT 10A 125V |
3,287 | 7.41 |
|
- |
D | Bulk | Active | Panel Mount | SPDT | On-Off-On | 10A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DC605-PB-BSWITCH TOGGLE SPDT 6A 125V |
4,011 | 7.41 |
|
- |
D | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DB105-PB-BSWITCH TOGGLE SPDT 10A 125V |
1,195 | 7.41 |
|
- |
D | Bulk | Active | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
7105P3HZQESWITCH TOGGLE SPDT 5A 120V |
4,944 | 7.45 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101P3Y9CQESWITCH TOGGLE SPDT 5A 120V |
4,133 | 7.42 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
U11P4YCQESWITCH TOGGLE SPDT 5A 28V |
4,836 | - |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
7108SY4ZBESWITCH TOGGLE SPDT 0.4VA 20V |
2,781 | 7.45 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A28EPSWITCH TOGGLE DPDT 0.4VA 28V |
2,396 | 6.46 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
7101K9ABESWITCH TOGGLE SPDT 0.4VA 20V |
2,640 | 7.42 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
