Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
635H/2SWITCH TOGGLE SPDT 10A 250V |
146 | 2.40 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | On-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|

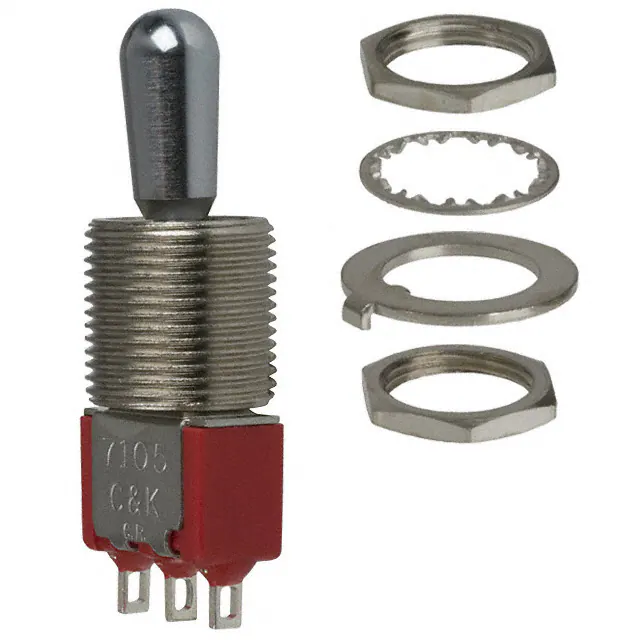

7105T1ZQESWITCH TOGGLE SPDT 5A 120V |
124 | 2.34 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SW-T4-1A-E-TA1-01SWITCH TOGGLE SPST 12A 125V |
157 | 41.20 |
|
Datasheet |
SW | Box | Active | Panel Mount | SPST | On-Off | 12A (AC) | 125 V | - | Standard Round with Cap | 16.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
B12JJPCFSWITCH TOGGLE SPDT 0.4VA 28V |
2,249 | 2.40 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|

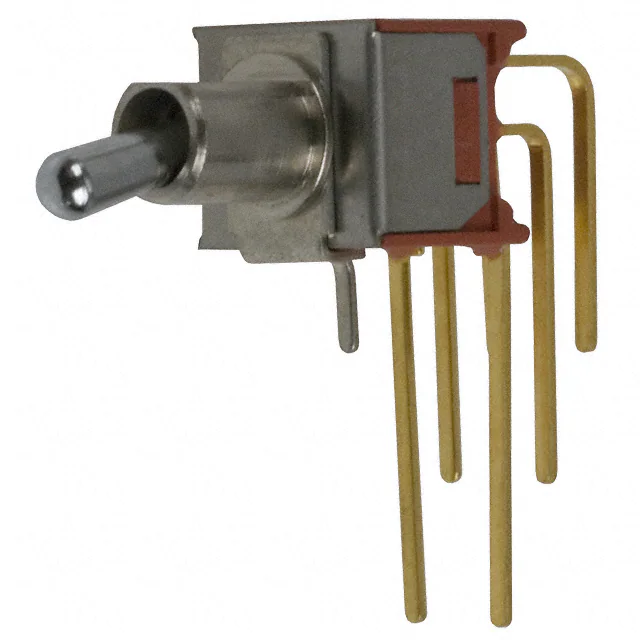

T201MH9AVBESWITCH TOGGLE DPDT 0.4VA 20V |
1,705 | 2.94 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

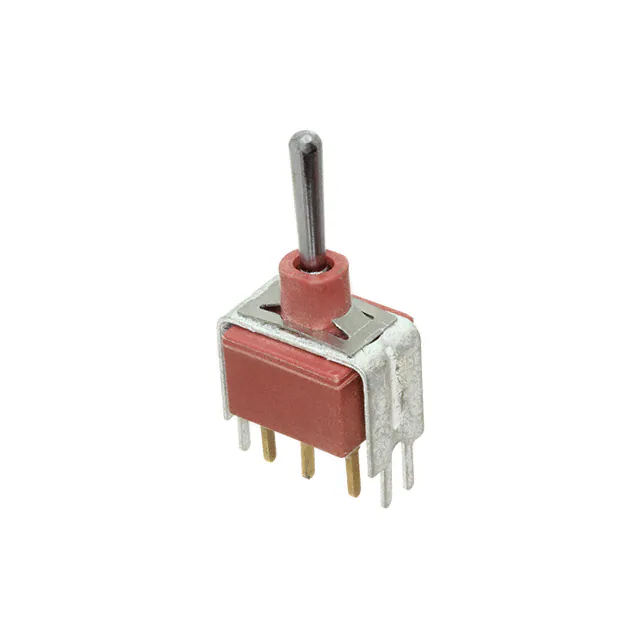

E203SD1V3BESWITCH TOGGLE DPDT 0.4VA 20V |
111 | 3.37 |
|
Datasheet |
E | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T108MH9AVBESWITCH TOGGLE SPDT 0.4VA 20V |
269 | 2.35 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
638HSWITCH TOGGLE SPDT 10A 250V |
193 | 2.53 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
S331F/USWITCH TOGGLE DPST 20A 125V |
4,782 | 2.54 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

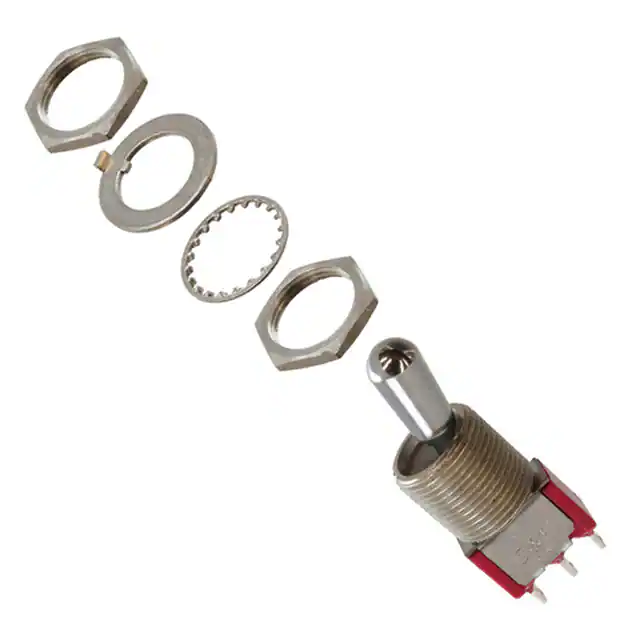

7101T1CWZQESWITCH TOGGLE SPDT 5A 120V |
246 | 2.76 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

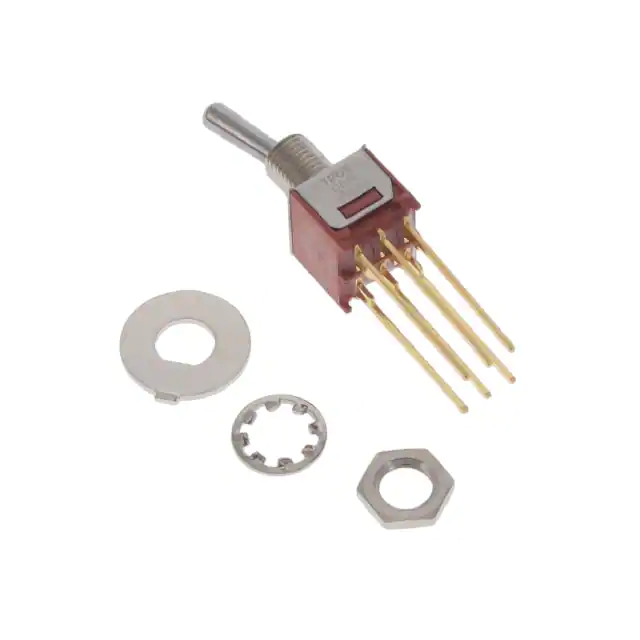

T201M1HWBESWITCH TOGGLE DPDT 0.4VA 20V |
325 | 2.95 |
|
Datasheet |
T | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.88mm | Non-Illuminated | - | - | Wire Wrap | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

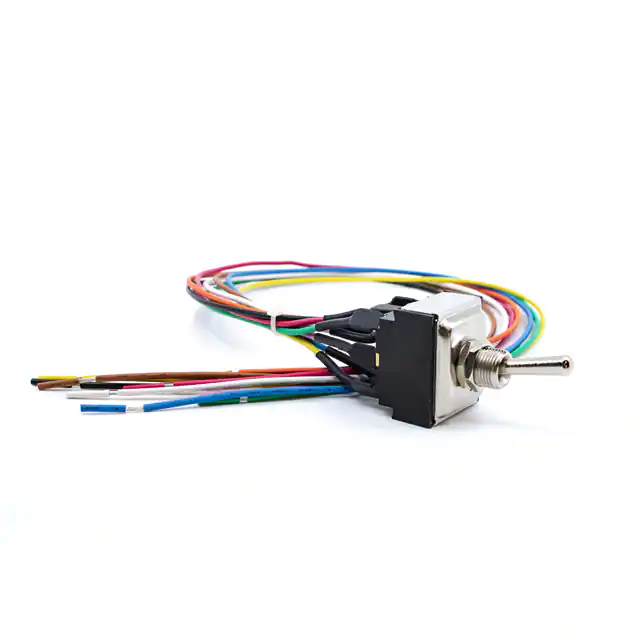

ST3WSE00SWITCH TOGGLE 3PDT 24A 125V |
171 | 3.93 |
|
Datasheet |
ST3 | Bulk | Active | Panel Mount | 3PDT | On-On | 24A (AC) | 125 V | - | Standard Round | 21.30mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|

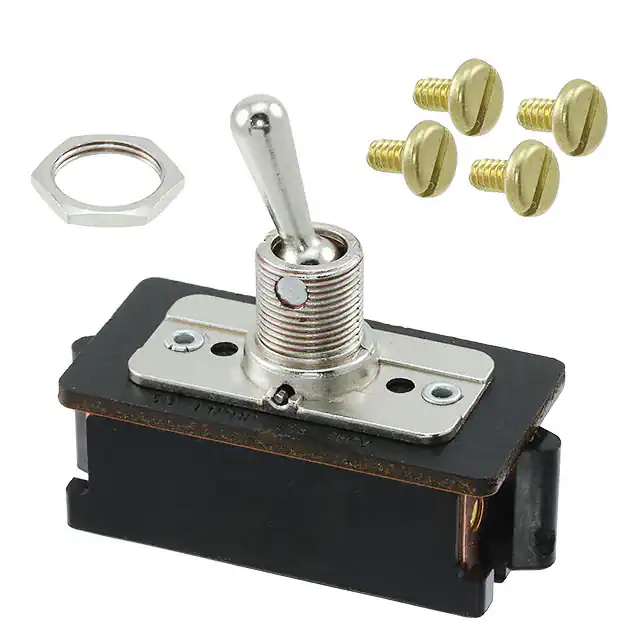

1825476-1SWITCH TOGGLE DPST 20A 20V |
395 | 6.05 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off-On | 20A (DC) | - | 20 V | Standard Round | - | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|

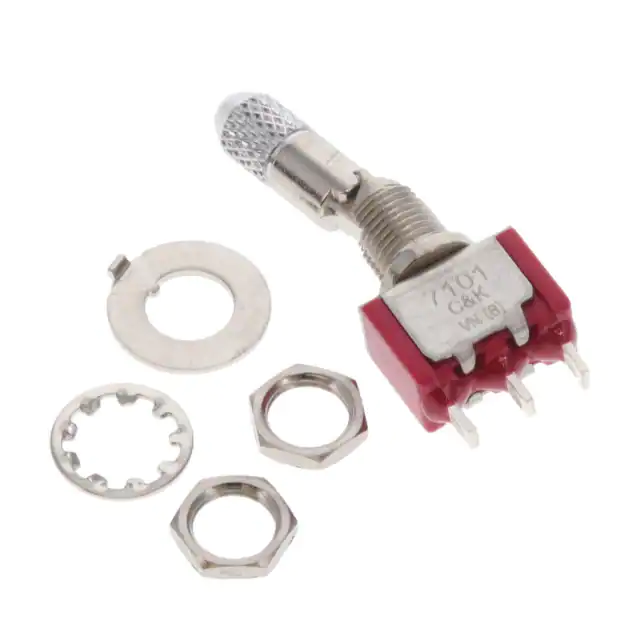

7101K2ZQEGSWITCH TOGGLE SPDT 5A 120V |
994 | 3.06 |
|
Datasheet |
7000 | Bag | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

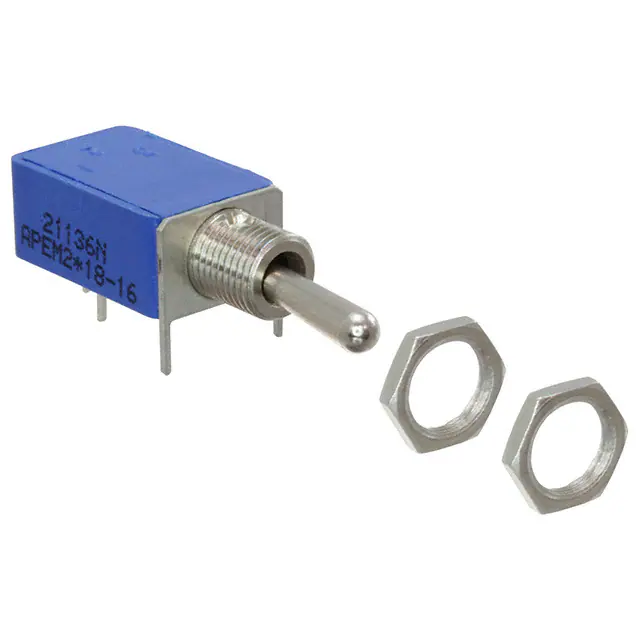

21136NASWITCH TOGGLE SPDT 4A 125V |
331 | 2.96 |
|
Datasheet |
21000N | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
S335SWITCH TOGGLE DPDT 15A 125V |
157 | 2.66 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
5-6437630-3SWITCH TOGGLE SPDT 6A 250V |
177 | 2.48 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 250 V | - | Flatted | 22.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | Sealed | -20°C ~ 70°C |
|
S2AWFSWITCH TOGGLE SPDT 15A 125V |
2,803 | 2.77 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
7211MD9ABESWITCH TOGGLE SP3T 0.4VA 20V |
400 | 2.72 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
S28AWSWITCH TOGGLE DPDT 15A 125V |
343 | 3.48 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
