Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN12SD3W01-BBSWITCH TOGGLE |
1,251 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN15SS2W13BRACKET PC MOUNT MINIATURE TOGGL |
2,691 | - |
|
- |
M | Bulk | Active | Through Hole | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | - |
|
|
3-1571920-2SWITCH TOGGLE 3PDT 6A 125V |
4,702 | - |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
TL49Y000050SWITCH TOGGLE DPDT 0.4VA 20V |
2,437 | 6.57 |
|
Datasheet |
TL | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL49Y000000SWITCH TOGGLE DPDT 0.4VA 20V |
1,080 | 6.57 |
|
Datasheet |
TL | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101MD1AGESWITCH TOGGLE SPDT 7.5A 125V |
1,088 | 5.72 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2SS-MDP4-T2-B4-M6RESWITCH TOGGLE DPDT 0.4VA 20V |
1,200 | 6.38 |
|
- |
2S | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.55mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
1004P1T8B13M2RESWITCH TOGGLE 4PDT 0.4VA 20V |
1,737 | 7.10 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T8202SWITCH TOGGLE DPDT 500MA 125V |
4,087 | 6.14 |
|
Datasheet |
T8000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 28 V | Flatted | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -20°C ~ 70°C |
|
|
T8204SWITCH TOGGLE DPDT 500MA 125V |
2,222 | 6.14 |
|
Datasheet |
T8000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 500mA (AC/DC) | 125 V | 28 V | Flatted | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -20°C ~ 70°C |
|
|
T8207SWITCH TOGGLE DPDT 500MA 125V |
1,850 | 6.14 |
|
Datasheet |
T8000 | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 500mA (AC/DC) | 125 V | 28 V | Flatted | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -20°C ~ 70°C |
|
|
T8203SWITCH TOGGLE DPDT 500MA 125V |
1,583 | 6.14 |
|
Datasheet |
T8000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 28 V | Flatted | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -20°C ~ 70°C |
|
|
T8205SWITCH TOGGLE DPDT 500MA 125V |
1,367 | 6.14 |
|
Datasheet |
T8000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 500mA (AC/DC) | 125 V | 28 V | Flatted | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -20°C ~ 70°C |
|
|
T8206SWITCH TOGGLE DPDT 500MA 125V |
1,088 | 6.14 |
|
Datasheet |
T8000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 500mA (AC/DC) | 125 V | 28 V | Flatted | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -20°C ~ 70°C |
|
|
2FB53-73/TABS/2 HEXSWITCH TOGGLE SPDT 15A 125V |
4,339 | 7.11 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
1825192-4SWITCH TOGGLE SPDT 0.4VA 20V |
1,433 | - |
|
- |
TT | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.69mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MPCWZQESWITCH TOGGLE SPDT 5A 120V |
1,146 | 6.61 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

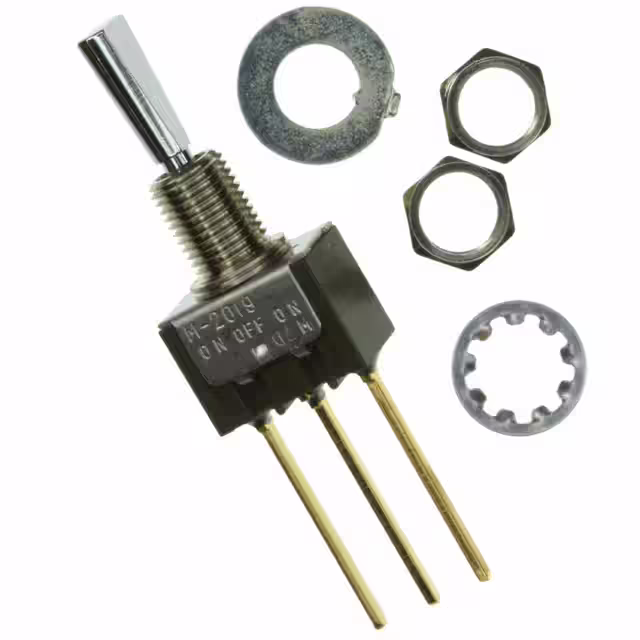

M2019ES1G06SWITCH TOGGLE SPDT 0.4VA 28V |
4,431 | 7.12 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.40mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101MD9V4BESWITCH TOGGLE SPDT 0.4VA 20V |
1,720 | 6.12 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7103SD9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
2,305 | 6.34 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
