Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T101P3TZQESWITCH TOGGLE SPDT 3A 120V |
4,431 | 1.95 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1571926-1SWITCH TOGGLE DPDT 6A 125V |
4,605 | - |
|
- |
MTG Green | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
5236WCDB16X404SWITCH TOGGLE SPDT 0.4VA 20V |
4,735 | 1.55 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5236WAB16X404SWITCH TOGGLE SPDT 6A 125V |
4,862 | 1.55 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
2GA730-73SWITCH TOGGLE SPST |
1,102 | 1.62 |
|
- |
G | Bulk | Active | Panel Mount | SPST | On-Off | - | - | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

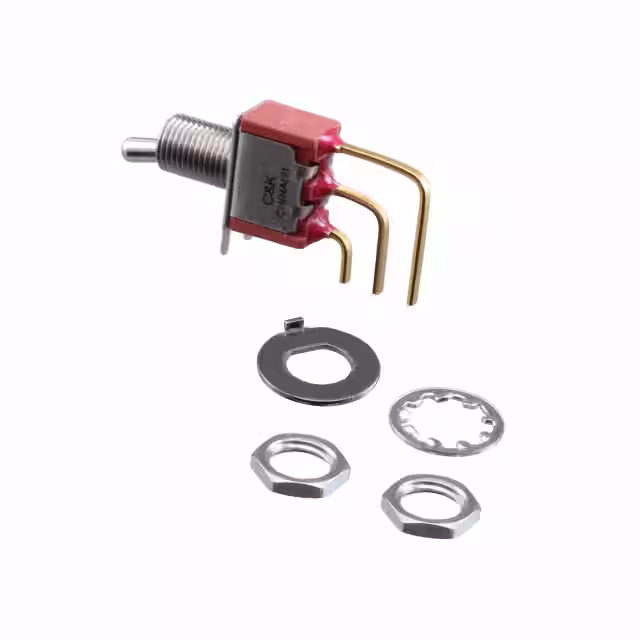

7101MYAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
1,926 | 1.86 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
U18MPD9AQESWITCH TOGGLE SPDT 5A 120V |
1,326 | 1.51 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

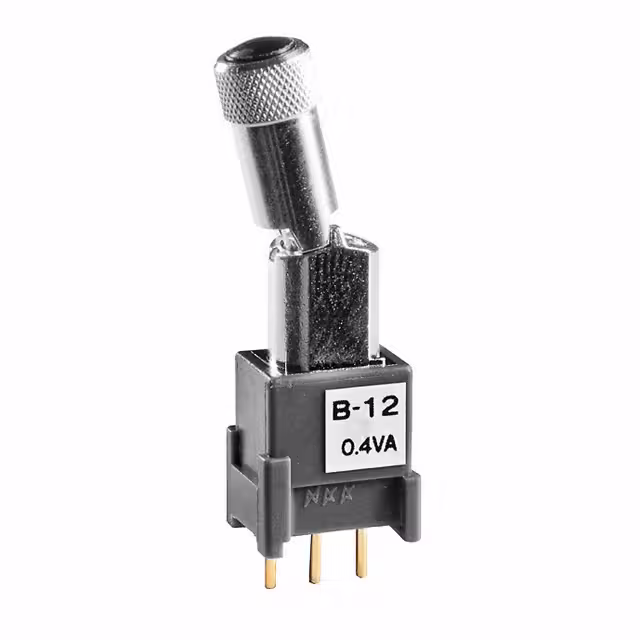

B12LPSWITCH TOGGLE SPDT 0.4VA 28V |
3,852 | 1.35 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 12.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T105MH9CBESWITCH TOGGLE SPDT 0.4VA 20V |
2,284 | 1.84 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5237ABULCSATOGGLE SWITCH 5000 MINIATURE |
2,863 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
TT11DGVRA3TSWITCH TOGGLE SPDT 0.4VA 20V |
2,465 | - |
|
- |
TT | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.68mm | Non-Illuminated | - | - | PC Pin | Circular - 4.83mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T108MH9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
2,737 | - |
|
Datasheet |
T | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
8B2012-ZSWITCH TOGGLE DPDT 6A 125V |
1,288 | 1.36 |
|
Datasheet |
8B | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

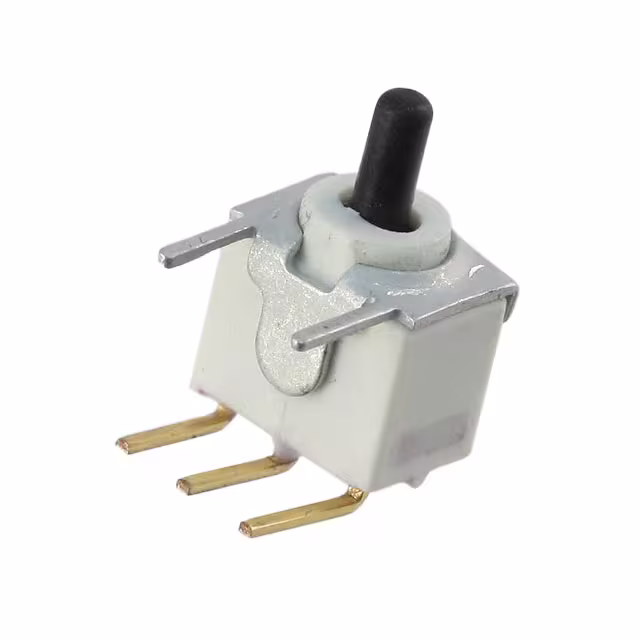

GT13MABESWITCH TOGGLE SPDT 0.4VA 20V |
1,231 | 1.34 |
|
Datasheet |
GT | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL46P010000TOGGLE SWITCH SMT TL PCB MOUNT |
1,293 | - |
|
- |
TL | Bulk | Active | Through Hole | DPDT | On-On | 500mA (AC/DC) | 48 V | 48 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
7101SD8V3QESWITCH TOGGLE SPDT 5A 120V |
1,771 | 1.74 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2027LL1W01SWITCH TOGGLE SP3T 6A 125V |
3,977 | 1.24 |
|
- |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2MS-WSP4-T91-B1-O7GESWITCH TOGGLE SPDT 5A 125V |
1,574 | 1.52 |
|
- |
2M | Bulk | Active | - | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.50mm | Non-Illuminated | - | - | - | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2MS-WSP4-T92-B1-O7GESWITCH TOGGLE SPDT 5A 125V |
2,940 | 1.52 |
|
- |
2M | Bulk | Active | - | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.50mm | Non-Illuminated | - | - | - | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
T105SH9CBESWITCH TOGGLE SPDT 0.4VA 20V |
4,976 | 1.48 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
