Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2011SD1W01BUSHING MOUNT MINIATURE TOGGLE |
1,276 | - |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34DWMDP12B4V2RTSWITCH TOGGLE DPDT 0.4VA 20V |
2,352 | 1.43 |
|
Datasheet |
34D | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

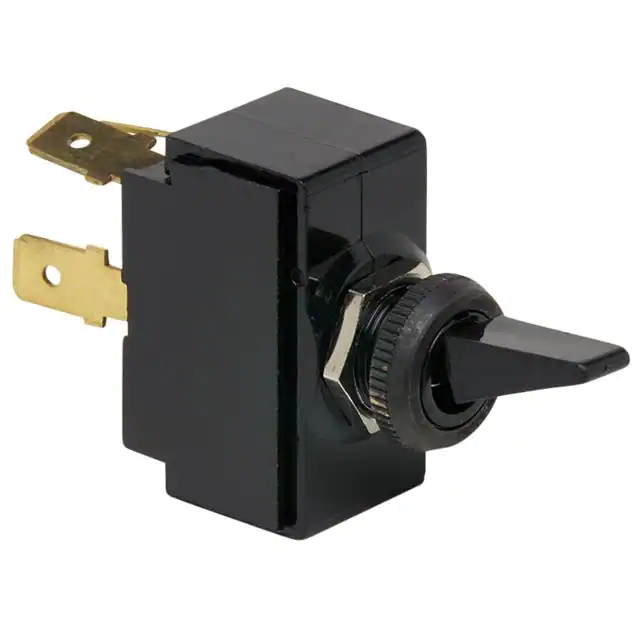

54100-01SWITCH TOGGLE SPST 25A 12V |
3,191 | 1.69 |
|
Datasheet |
54100 | Bulk | Active | Panel Mount | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
E105MD9AGESWITCH TOGGLE SPDT 7.5A 125V |
3,899 | 1.50 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
U15MD9AQESWITCH TOGGLE SPDT 5A 120V |
4,924 | 1.28 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SYAV2PESWITCH TOGGLE SPDT 0.4VA 20V |
3,924 | 1.31 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101LDV3QESWITCH TOGGLE SPDT 5A 120V |
3,846 | 1.28 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 23.12mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P1T2B5M52REHSWITCH TOGGLE 4PDT 0.4VA 20V |
2,460 | 1.88 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A13JB-JCSWITCH TOGGLE SPDT 0.4VA 28V |
3,761 | 1.13 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Red Cap | -30°C ~ 85°C |
|
|
M2012SS2G30/USWITCH TOGGLE SPDT 0.4VA 28V |
2,426 | 1.41 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101L2D9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
3,847 | 1.53 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 15.75mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP3-T1-B1-M2WESWITCH TOGGLE DPDT |
2,959 | 1.31 |
|
- |
2M | Bulk | Active | Panel Mount | DPDT | On-Off-On | - | - | - | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101LYZQESWITCH TOGGLE SPDT 5A 120V |
2,255 | 1.28 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
DA221-BB-BSWITCH TOGGLE SPST 20A 125V |
1,397 | 1.34 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DA221-PB-BSWITCH TOGGLE SPST 20A 125V |
3,220 | 1.34 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DA221-BW-BSWITCH TOGGLE SPST 20A 125V |
2,908 | 1.34 |
|
- |
D | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DA221-PW-BSWITCH TOGGLE SPST 20A 125V |
3,883 | 1.34 |
|
- |
D | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DA220-PB-BSWITCH TOGGLE SPST 20A 125V |
1,693 | 1.34 |
|
- |
D | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DA220-BB-BSWITCH TOGGLE SPST 20A 125V |
3,814 | 1.34 |
|
- |
D | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
7108MD9ABESWITCH TOGGLE SPDT 0.4VA 20V |
4,993 | 1.92 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
