Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2M1-DP1-T1-B2-M1GESWITCH TOGGLE DPDT 5A 125V |
4,401 | 1.03 |
|
- |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | Solder Lug | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP4T6B12VS5RESWITCH TOGGLE DPDT 0.4VA 20V |
2,880 | 1.15 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP58T7M1QTSWITCH TOGGLE SPDT 5A 125V |
4,198 | 1.15 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
|
B1RKH-BHSWITCH TOGGLE SPDT 0.4VA 28V |
3,352 | 0.82 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Gray Actuator | -30°C ~ 85°C |
|
2M1-SP3-T2-B4-M6RESWITCH TOGGLE SPDT 0.4VA 20V |
3,163 | 1.04 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP3-T2-B2-M7RESWITCH TOGGLE SPDT 0.4VA 20V |
4,763 | 1.04 |
|
- |
2M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2S1-MSP4-T1-B1-M2QESWITCH TOGGLE SPDT 3A 125V |
1,326 | 1.04 |
|
- |
2S | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 3A (AC) | 125 V | 28 V | Standard Round | 9.50mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
2M1-SP3-T1-B2-M7KESWITCH TOGGLE SPDT 0.4VA 20V |
3,342 | 1.04 |
|
- |
2M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2025SS1G01SWITCH TOGGLE DPDT 0.4VA 28V |
3,731 | 1.16 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34BWSP11B1M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,632 | 1.10 |
|
Datasheet |
34B | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.60mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP32B5M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,966 | 1.16 |
|
Datasheet |
34C | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.04mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2021SS1W03-CGSWITCH TOGGLE DPST 6A 125V |
1,937 | 1.15 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Blue Cap | -30°C ~ 85°C |
|

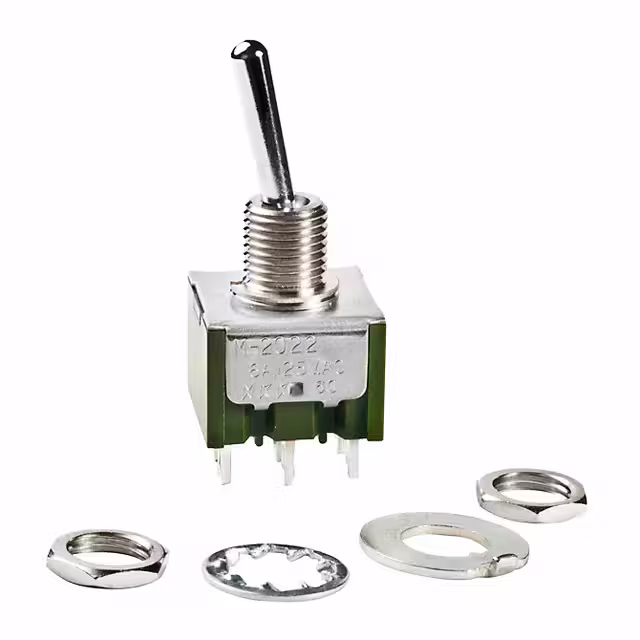

M2022SA1W01SWITCH TOGGLE DPDT 6A 125V |
2,784 | 1.16 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2021SS1W01-BASWITCH TOGGLE DPST 6A 125V |
3,111 | 1.18 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -30°C ~ 85°C |
|
|
TL36W000000SWITCH TOGGLE SPDT 0.4VA 20V |
2,204 | 1.09 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
DA100-PW-WSWITCH TOGGLE SPST 10A 125V |
4,687 | 1.06 |
|
- |
D | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DA101-PB-BSWITCH TOGGLE SPST 10A 125V |
3,824 | 1.06 |
|
- |
D | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
DA100-BB-BSWITCH TOGGLE SPST 10A 125V |
4,060 | 1.06 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | - | - | - | 0°C ~ 85°C |
|
|
ST222D00SWITCH TOGGLE DPST 20A 125V |
3,829 | 1.16 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
T115D-FSWITCH TOGGLE SPDT 15A 250V |
1,964 | - |
|
Datasheet |
T-15 | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC/DC) | 250 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP40 | - | -25°C ~ 70°C |
