Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1004P1T2B1M1QEHSWITCH TOGGLE 4PDT 5A 120V |
3,800 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP16T1M1QTSWITCH TOGGLE SPDT 5A 125V |
3,939 | 1.08 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Flatted | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|

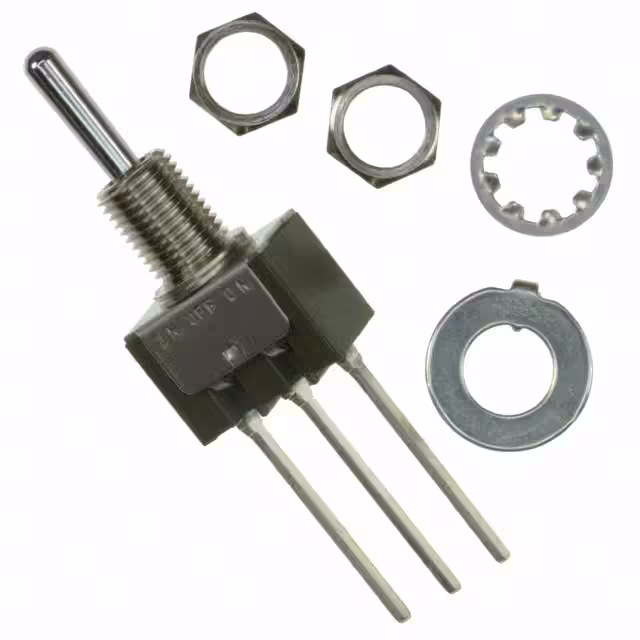

M2013SS1W06SWITCH TOGGLE SPDT 6A 125V |
3,294 | 1.10 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012S2D3W01SWITCH TOGGLE SPDT 6A 125V |
3,653 | 1.08 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T7B13M7RESWITCH TOGGLE DPDT 0.4VA 20V |
3,382 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.98mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P5T1B1M1QESWITCH TOGGLE 3PDT 5A 120V |
4,955 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP11B1V3RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,627 | 1.09 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ASP43B1M1QTSWITCH TOGGLE SPDT 5A 125V |
4,271 | 1.09 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34BWSP51B1M1QTSWITCH TOGGLE SPDT 5A 125V |
3,475 | 1.09 |
|
Datasheet |
34B | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.60mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34DWMSP12B4V2RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,560 | 1.13 |
|
Datasheet |
34D | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT12MSCKETRSWITCH TOGGLE SPST 0.4VA 20V |
2,379 | - |
|
- |
GT | Tape & Reel (TR) | Obsolete | Surface Mount | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP7T8B13M1QEHSWITCH TOGGLE DP3T 5A 120V |
4,214 | - |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.98mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
3-1825139-7SWITCH TOGGLE SP3T 5A 120V |
4,935 | 1.07 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
34ASP51B4V3QTSWITCH TOGGLE SPDT 5A 125V |
3,031 | 1.09 |
|
Datasheet |
34A | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
34ASP32B3M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,352 | - |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
ST226D00SWITCH TOGGLE DPDT 20A 125V |
2,668 | 1.65 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|

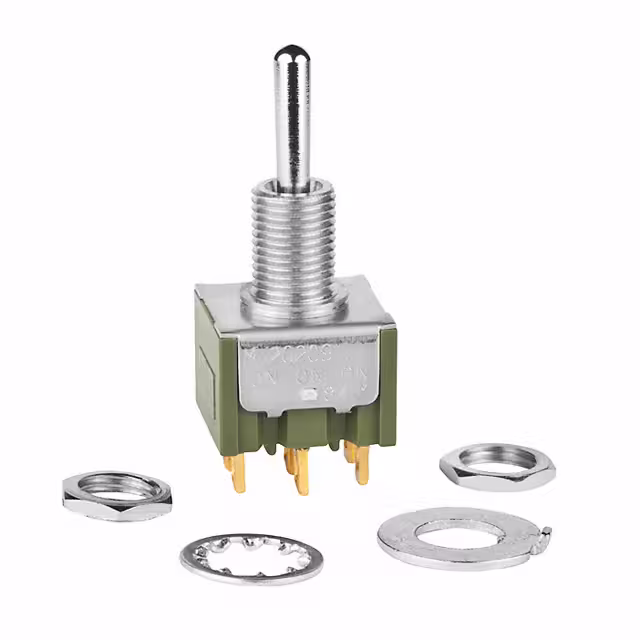

M2027SS1G01SWITCH TOGGLE SP3T 0.4VA 28V |
2,283 | 1.09 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
ST24GD02SWITCH TOGGLE DPDT 20A 125V |
2,410 | 1.09 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 16.60mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2M1-DP4-T1-B4-M2QESWITCH TOGGLE DPDT 5A 125V |
4,203 | 0.99 |
|
- |
2M | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2MS-WSP1-T2-B4-M2RESWITCH TOGGLE SPDT 0.4VA 20V |
4,787 | 0.99 |
|
- |
2M | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.69mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
